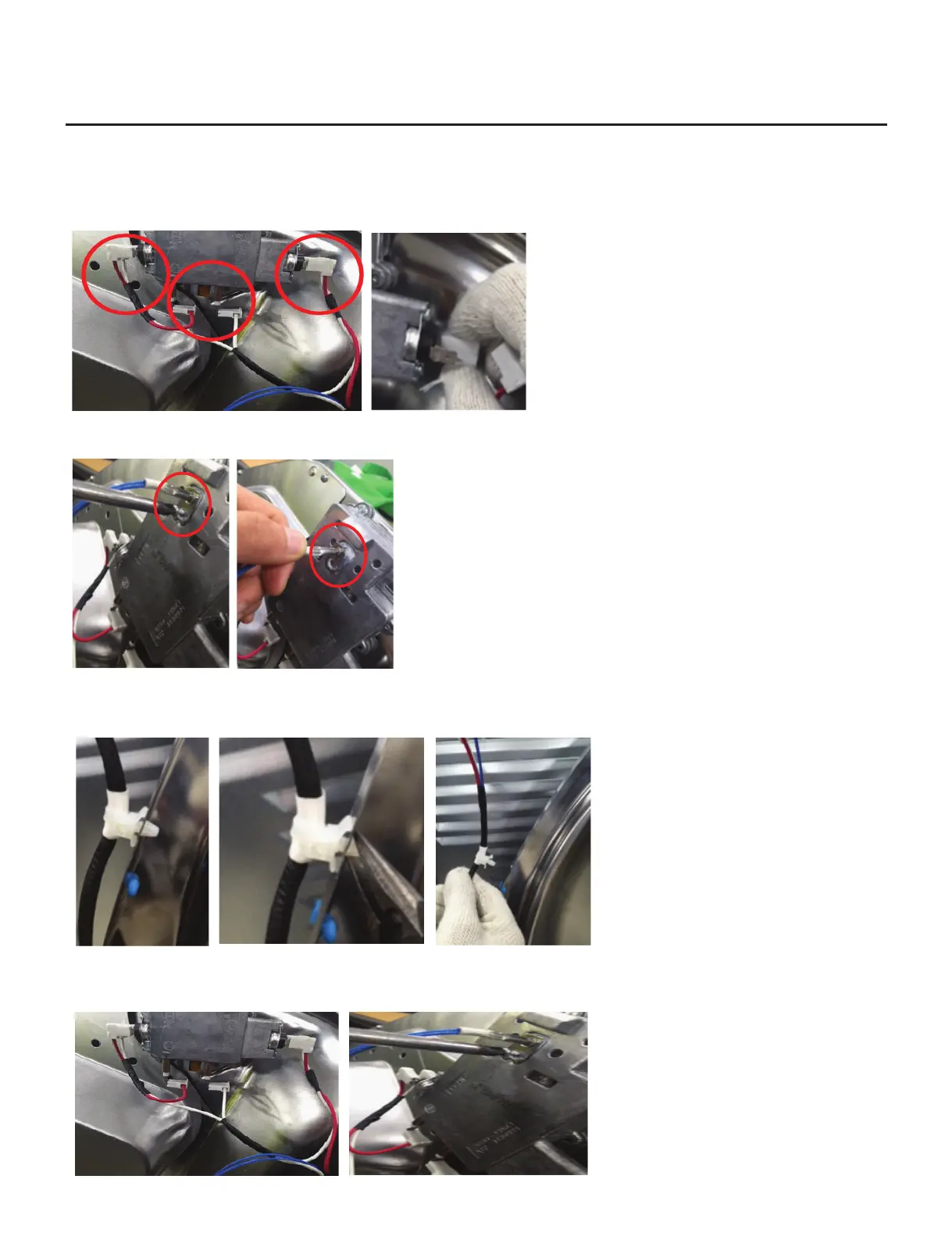

1. Remove the six connectors from the generator.
2. Remove the thermistor screw from the generator.
3. Remove the steam harness cable tie holder in the rear tub.
4. Replace the steam harness and assemble the cable tie holder in the rear tub.
5. Assemble the steam harness.
6. Attach the thermistor and the screws to the generator.
57
59
Table of Contents
Default Chapter
3
Table of Contents
3
1 Specifications
4
2 Features and Benefits
6
3 Installation Instructions
6
4 Dryer Cycle Process
16
5 Component Testing Information
17
6 Motor Diagram and Schematic
20
7 Wiring Diagram
21
8 Steam Function
23
Steam Cycle Guide
23
Troubleshooting
28
9 Flow Sensor Function
33
Flow Sensor
33
Installation Test (Exhaust Check)
34
10 Diagnostic Test
36
11 Change Gas Setting (Natural Gas, Propane Gas)
47
12 Disassembly Instructions
49
13 Exploded View
60
Control Panel and Plate Assembly
60
Cabinet and Door Assembly: Electric Type
61
Drum and Motor Assembly: Electric Type
63
Drum and Motor Assembly: Gas Type
64
