10

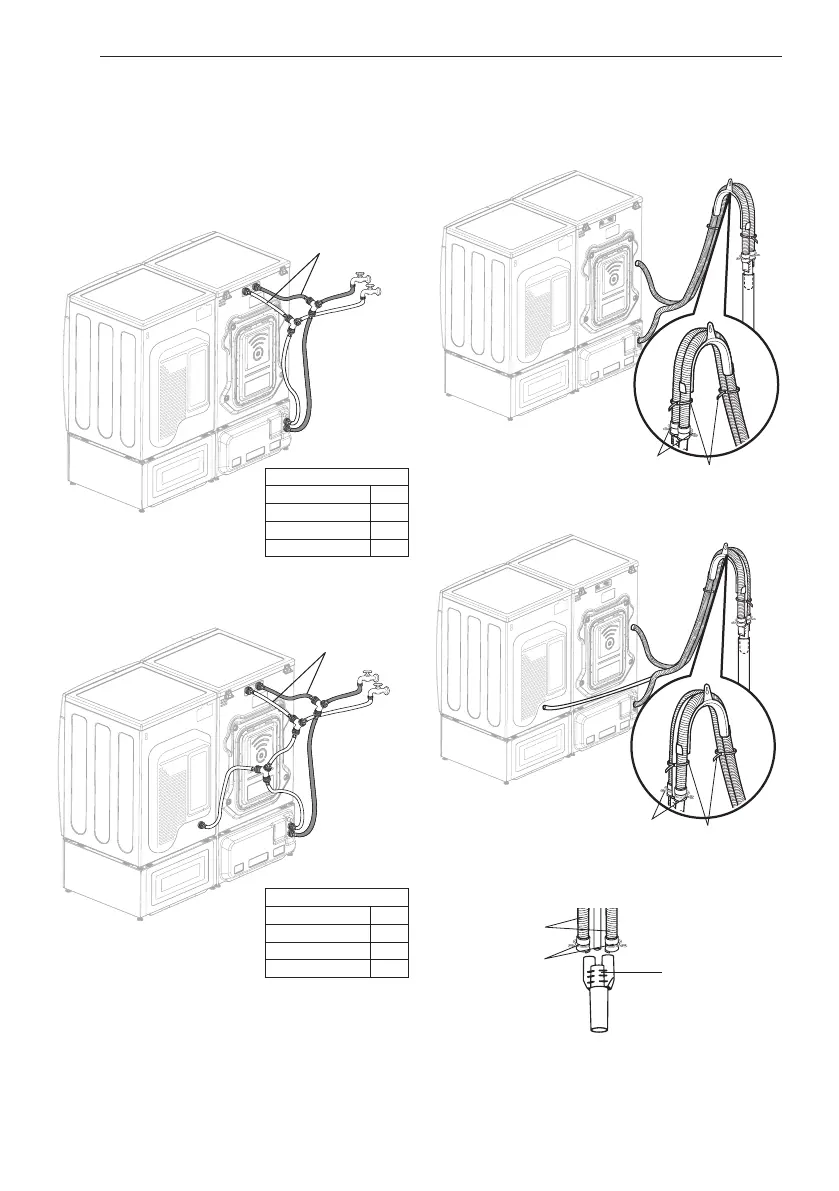

INSTALLATION INSTRUCTIONS
CONNECTING THE DRAIN HOSE WITH
FULL-SIZE WASHER
1. Front-loading washer and pedestal washer with
dryer.
Tie Strap
Wire Clamp
2. Front-loading washer and pedestal washer with
hybrid dryer
Tie Strap
Wire Clamp
DETAIL VIEW OF DRAIN CONNECTOR
CONNECTION
For narrow standpipes, insert hybrid dryer drain hose in
center of drain connector. DO NOT insert dryer drain hose
further than 1 inch (2.5 cm). Use tie straps to keep hoses
in place.
OVERVIEW OF CONNECTIONS
CONNECTING THE WATER LINES WITH
FULL-SIZE APPLIANCES
1. Front-loading washer and pedestal washer with
dryer.
Cold
Hot
Short inlet hose
2. Front-loading washer and pedestal washer with
Turbo Steam dryer
Cold
Hot
Short inlet hose
Required for water inlet
Item Qty
Y-Connector 2
Short inlet hose 2
Long inlet hose 4
long inlet hoses sold separately
Required for water inlet
Item Qty
Y-Connector 3
Short inlet hose 3
Long inlet hose 5
long inlet hoses sold separately
Drain hose
Wire Clamp
Drain
Y Connector
To Next Page
