LG DLGX7601 SERIES User Manual

17
INSTALLATION
ENGLISH
6
Reverse the components inside the door.

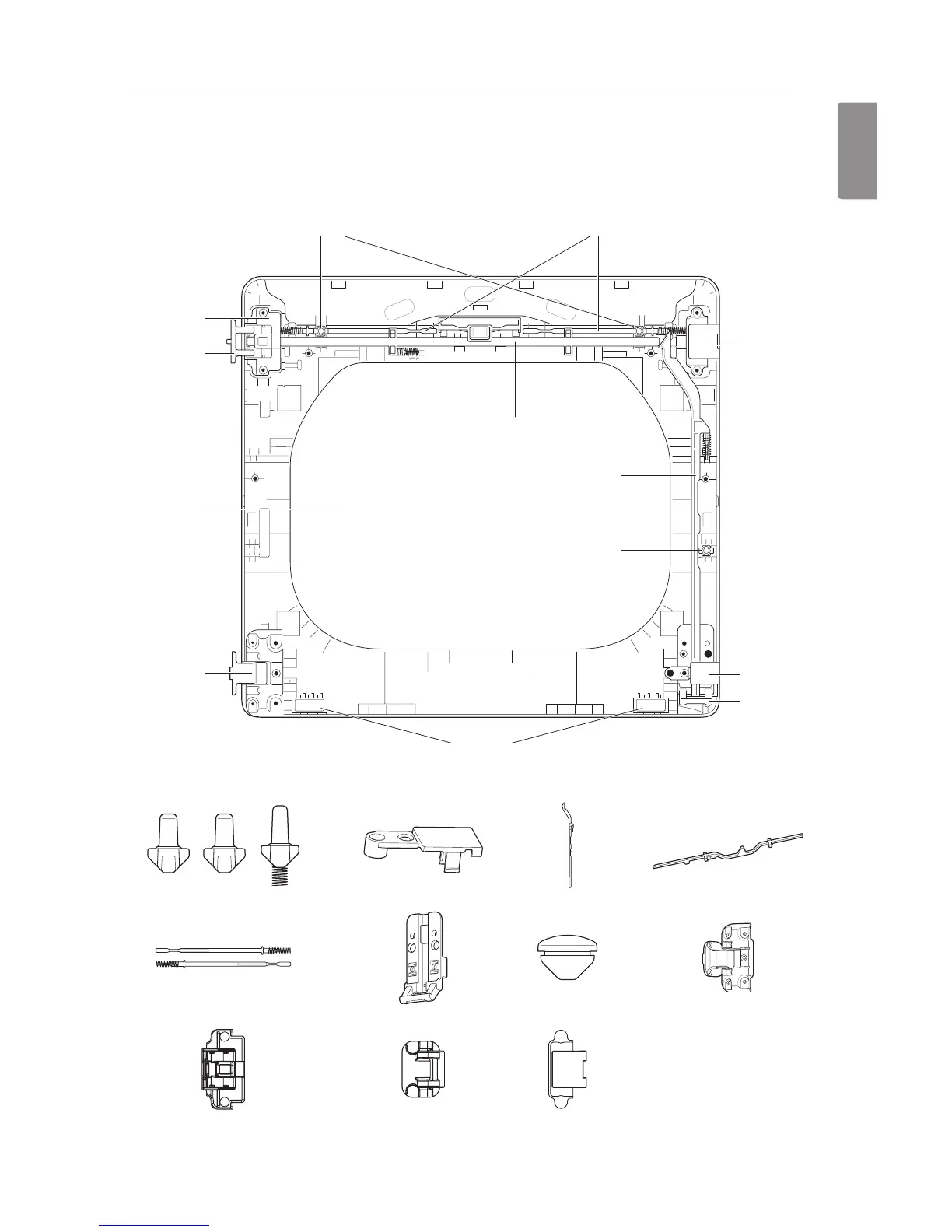

You will now be removing and reversing various components inside the door. See below for a detailed
diagram and identification of the inner structure and parts of the door. (The diagram shows the “before view”
of the door, with the default set-up for a right side hinge swing. After following these instructions, your door
should be a mirror image of the illustration.)
Upper
KLQJH¿OWHU
Side lock rod
Side Interlock button
Lower
KLQJH¿OOHU
Lower
hinge
bracket
Bumpers
Inner lock rodsTop interlock buttons
Top lock rod
Upper
hinge
assembly
Upper
hinge
pivot
Glass
Lower
hinge
assembly
Interlock buttons
Upper hinge assembly Upper hinge pivot 8SSHUKLQJH¿OOHU
Inner lock rods
/RZKLQJH¿OOHU
Lower hinge bracket
Top lock rod
Lower hinge assembly
Side lock rod
Hole plug
