16
INSTALLATION

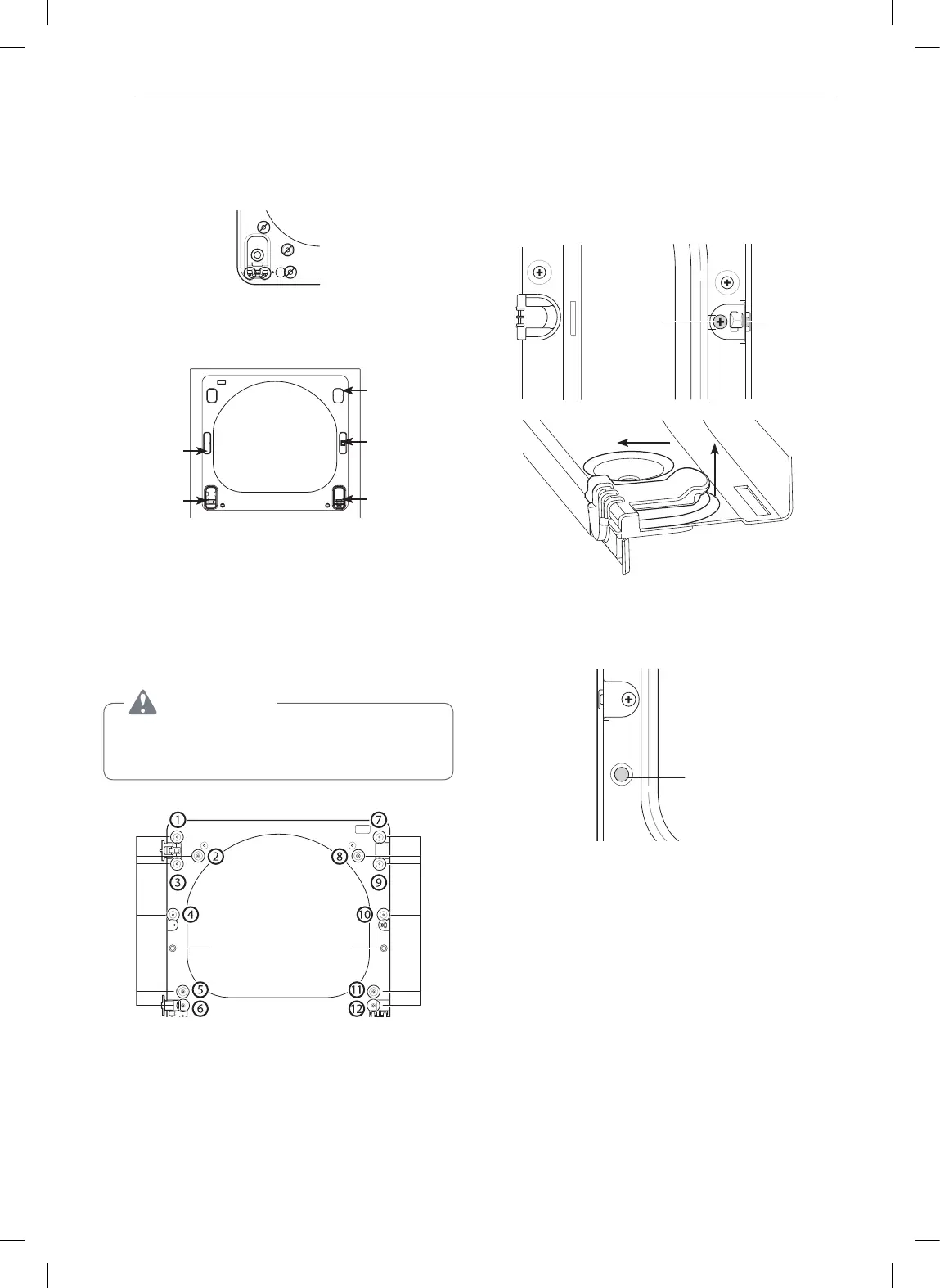

e. Remove the three screws on the hinge at the
bottom left. Remove the hinge and reinstall it
on the right side. The top screw will occupy
the hole where you removed the screw behind
the hinge bracket in step d.
f. Install the hinge bracket removed in step d on
the bottom left side, first installing one screw
behind the hinge bracket.
hinge
cover
hinge
bracket
latch hole
cover
latch
mechanism
hinge
Cabinet Reversal complete
ON THE DOOR:
4
Lift off the door cover.
With the door laid inside facing up on a protected
surface, remove the twelve screws on the inside
of the door. Carefully lift off the door cover with
the help of a small flat blade screwdriver inserted
in the upper corner (circled below).
WARNING
The edges of the door cover may be sharp. Take
care when handling, or wear gloves to avoid
injury.
Hole
plug
Twelve screws
Side
Interlock
button
5
Switch the door strike and the blank cover.
Remove the two screws on the door cover that
secure the door strike.
Switch the door strike and the blank cover,
installing them on the opposite sides from which
they were removed.
Long
screw
Short
screws
Blank cover Door strike
Pull
Raise
Remove blank cover
Gently pry out the hole plug on the side of
the door cover and install it in the hole on the
opposite side.
Hole
plug
Set the door cover aside.
