1. Appearance Description for PoE Wi-Fi Bridge

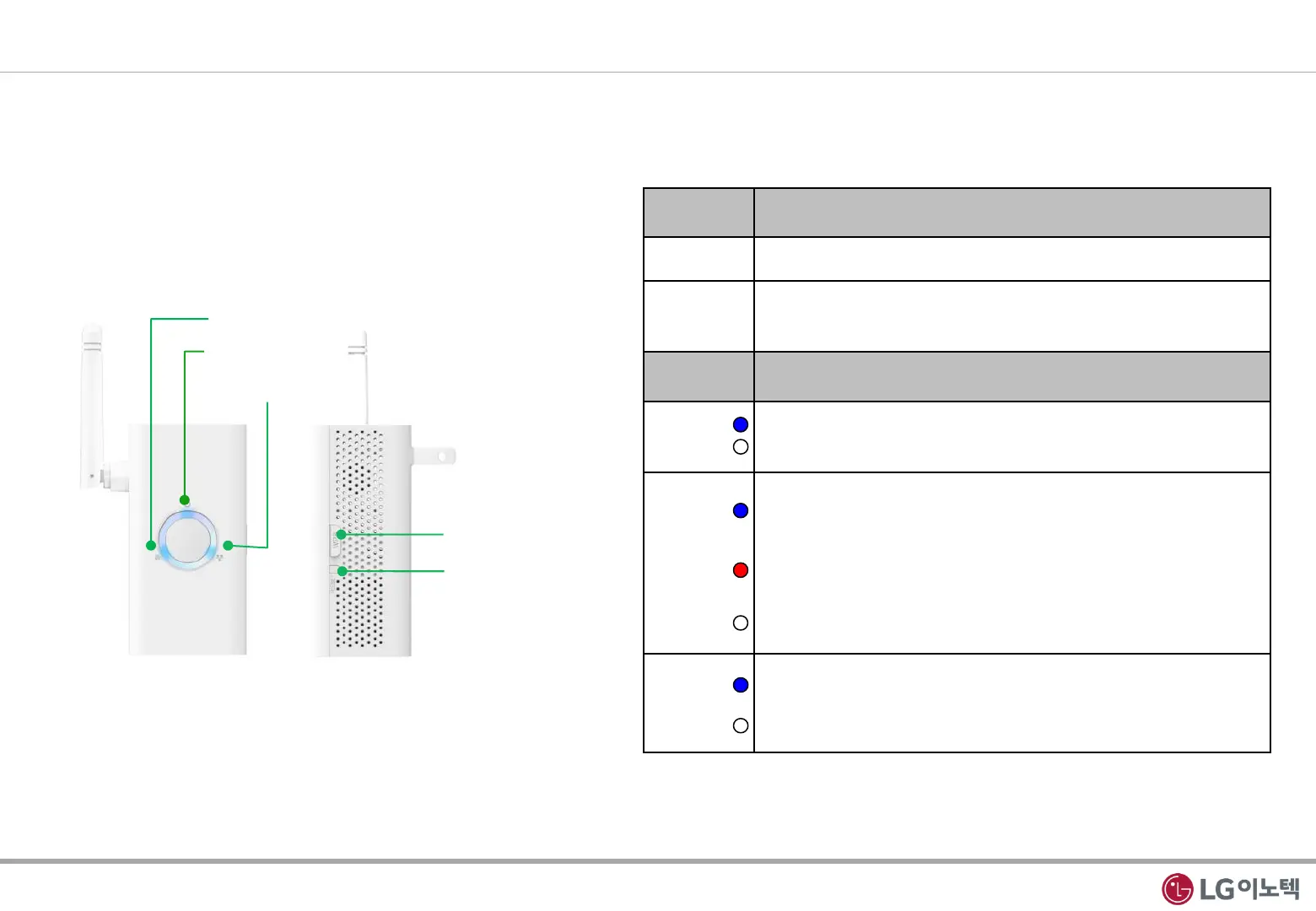

Fig 1. Front/Right side View
1. Front/Right side Panel
- The Right side panel has the 2-Button and Front panel has
status LEDs in the following figure.
Table 1. Button/Led Description
1 / 5
Button Description
WPS • To connect WPS to AP(Access Point)
RESET
• Reboot
• Reset to Factory Default
LED Description
POWER
• Solid Blue : Power on
• Off : Power is not supplied to the PoE Wi-Fi Bridge
WLAN
• Solid Blue : Wi-Fi Activity are in process
• Blinking Blue : Wireless data is being sent or
received.
• Solid Red : Wi-Fi is accessing or access is fail
• Blinking Red : The Wireless signal is weak signal
• Off : Wi-Fi is not used
CAMERA
• Blinking Blue : CAMERA link is detected
Data Transmission on the port
• Off : No data transmission
POWER
WLAN
CAMERA
WPS
RESET
