- 17 -

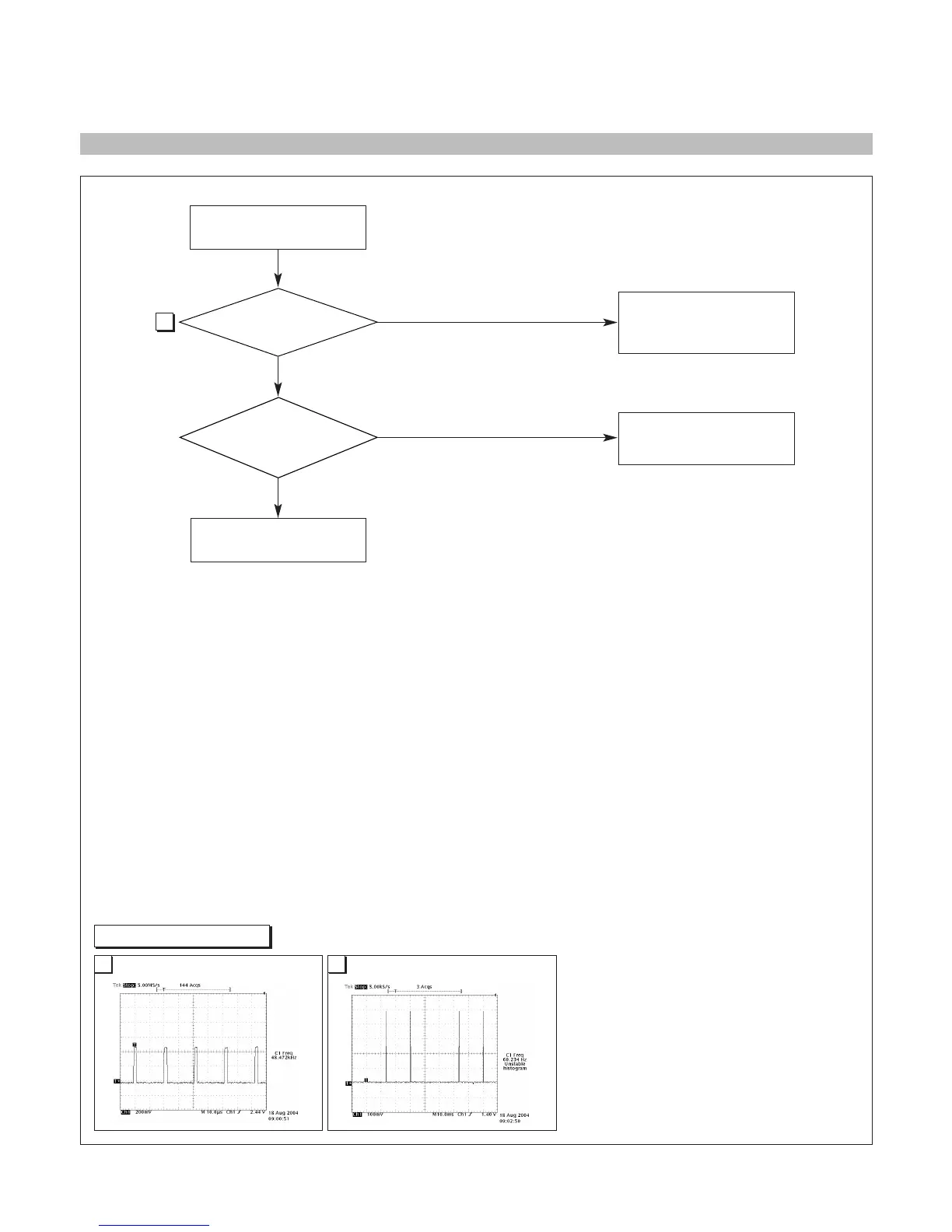

4. TROUBLE IN DPM
TROUBLE IN DPM
NO
NO
TROUBLE IN U101
CHECK PC
PC IS NOT GOING
INTO DPM OFF MODE
CHECK H/V SYNC LINE
CHECK
R442, R443
CHECK
U101 PIN 32,33
SYNC PULSE ?
3
3
Waveforms
R442 H-Sync
3
R443 V-Sync
YES
YES
