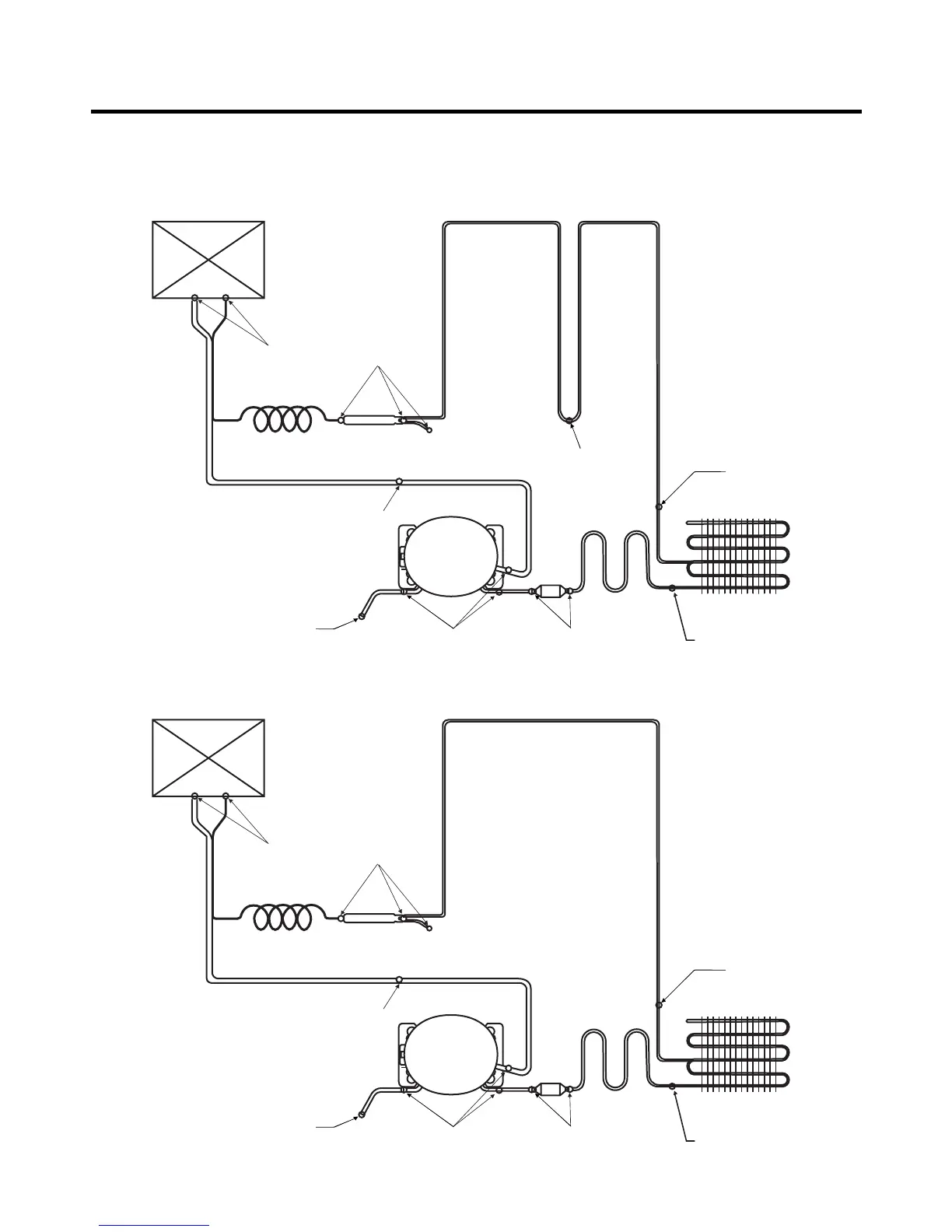

3-6. Brazing Reference Drawings
TROUBLE DIAGNOSIS
- 108 -
PIPE ASSEMBLY
JOINT
PIPE ASSEMBLY HOT LINE
(Refrigerator)
PIPE ASSEMBLY HOT LINE
(Freezer)
PIPE ASSEMBLY
JOINT
CONDENSER
ASSEMBLY WIRE
PIPE ASSEMBLY
SUCTION
DRIER ASSEMBLYCAPI - TUBE
Copper Brazer
Copper(Silver)
Brazer
Silver Brazer
Copper
Brazer
Copper Brazer
Copper Brazer
Coppper Brazer
Silver Brazer
Copper(Silver)
Brazer
PIPE ASSEMBLY
JOINT
PIPE ASSEMBLY
HOT LINE
(Freezer)
PIPE ASSEMBLY
JOINT
CONDENSER
ASSEMBLY WIRE
PIPE ASSEMBLY
SUCTION
DRIER ASSEMBLYCAPI - TUBE
Copper Brazer
Copper(Silver)
Brazer
Silver Brazer
Copper
Brazer
Copper Brazer
Copper Brazer
Coppper Brazer
Silver Brazer
1) Asia / Middle-East Africa
2) Europe & CIS / America
