53
ELECTRICAL WIRING
ENGLISH

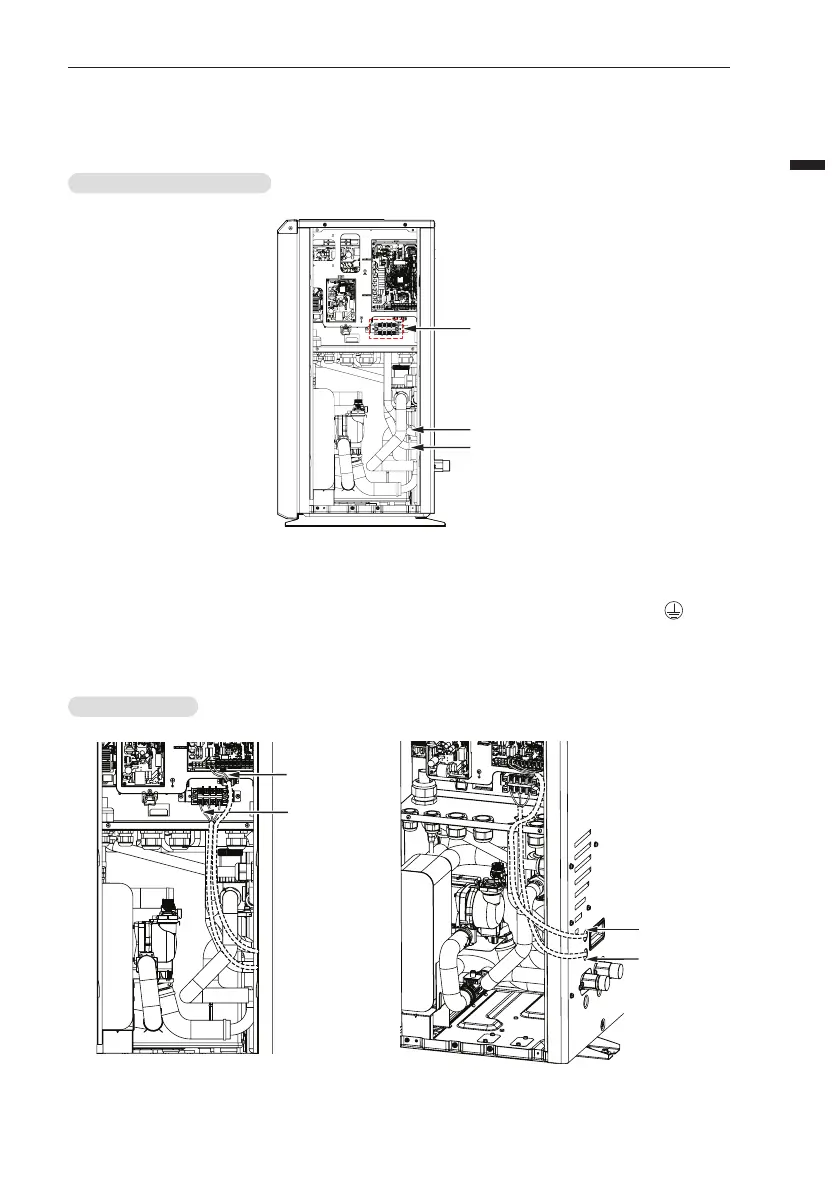

Electrical connections at outdoor unit
Step 1. Disassemble Side panel and cover of control box from the outdoor unit
Cable Conduit
(Communication)
Cable Conduit
(Power)
Power Terminal Block
Step 2. Connect power cable to main Power terminal
The earth cable is connected to the Control box case where earth symbol is marked.
Step 3. Use cable clamps (or cord clamps) to prevent unintended move of power cable.
Step 4. Reassemble Side panel and cover to the outdoor unit by fastening screws.
Communication
cable
Outdoor Unit
Power
Cable Conduit
(Communication)
Cable Conduit
(Power)
1 Phase(Ø), 3 Phase(Ø)
1 Phase(Ø)
To Next Page
