Connection
16

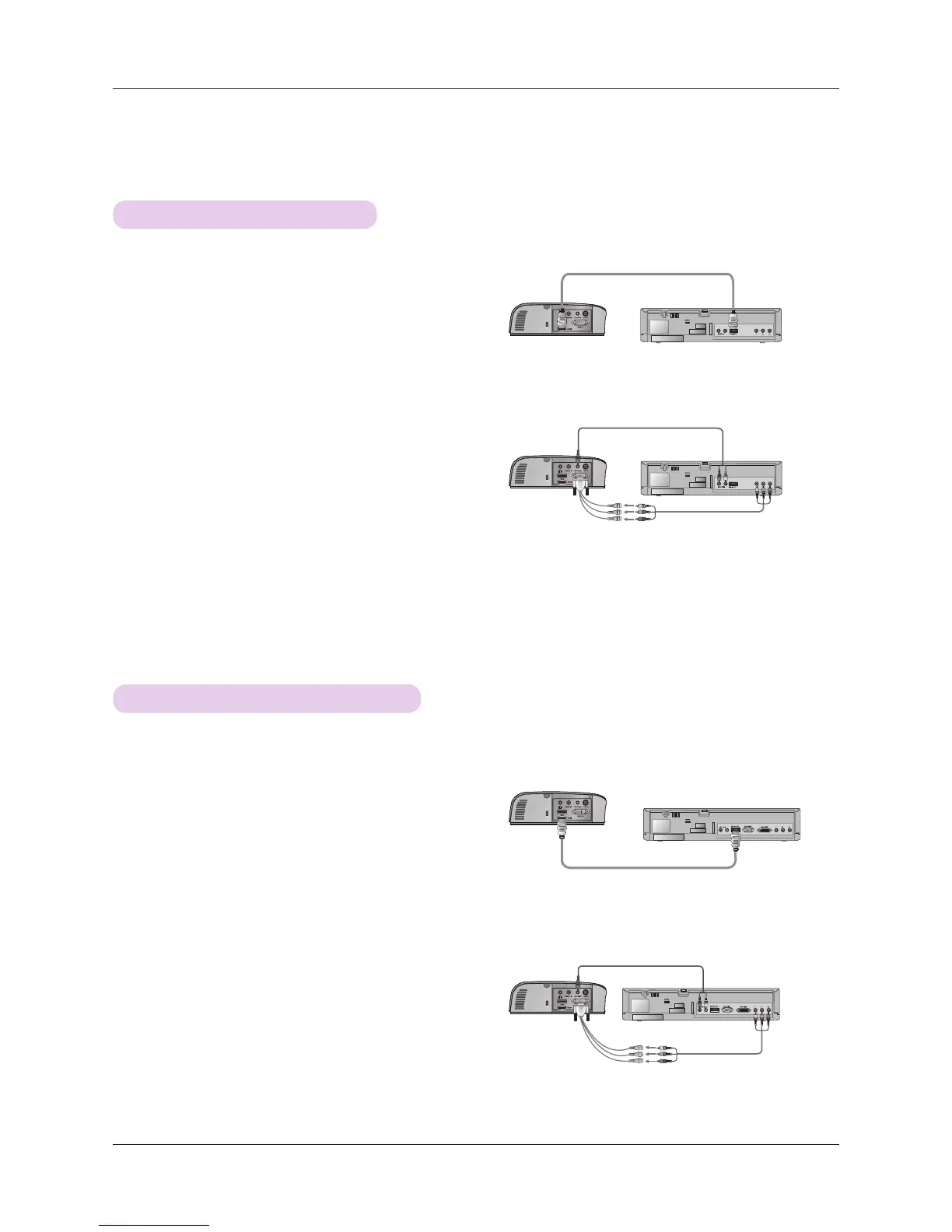

Connecting to a DVD Player
< How to connect a Component source >
1. After connecting the Component cable of DVD Player to
the RGB to Component cable, connect it to the RGB IN
terminal of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, PB=blue, PR =red)
2. Connect the AUDIO IN of the projector to the output jacks
of the audio source with an audio cable.
< How to connect a HDMI source >
1. Connect the HDMI in of the projector and the HDMI output
port of the DVD Player with an HDMI cable.
2. Set the DVD Player's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
* Depending on the equipment, the component output jacks (Y, PB, PR) of the DVD Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
<DVD Player>
Component cable
Connecting to a D-TV Set-Top Box
< How to connect a HDMI source >
1. Connect the HDMI in of the projector and the HDMI output
port of the DTV set-top box with an HDMI cable.
2. Set the DTV receiver's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
* To receive Digital TV (D-TV) programs, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between the projector and D-TV Set-Top Box.
Component cable
< How to connect a Component source >
1. Connect the D-TV Set-Top Box Component cable with RGB
to Component cable and than connect it to RGB IN of the
projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, P
B=blue, PR =red)
2. Connect the AUDIO IN of the projector to the output jacks
of the audio source with an audio cable.
<D-TV Set-Top Box>
<D-TV Set-Top Box>
RGB to Component
Cable
RGB to Component Cable
HDMI Cable
<DVD Player>
HDMI Cable
Audio Cable
Audio Cable
