3-10
COMPONENT ACCESS

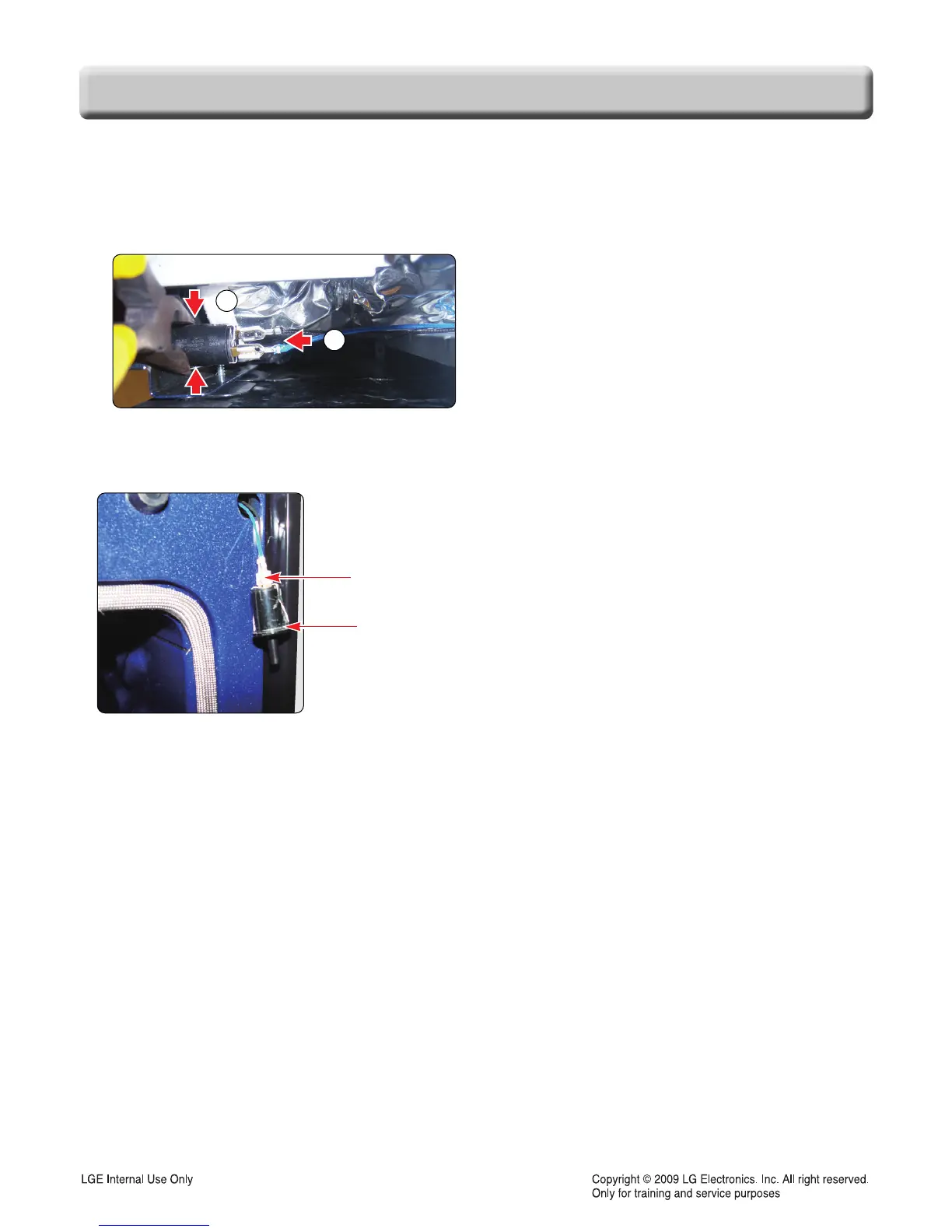

6. T
o remove the door switch:
a) Remove the door switch from the range. T
o do
this, squeeze tabs and use a long nose plier or
a snapring plier
, and tap it out of the hole with
a hammer
.
b) Disconnect the wires from the terminals.
1
2
Wires
Door
Switch
22
24
