LG LDT5665ST Service Manual

For Authorized Service Technicians
- 16 -

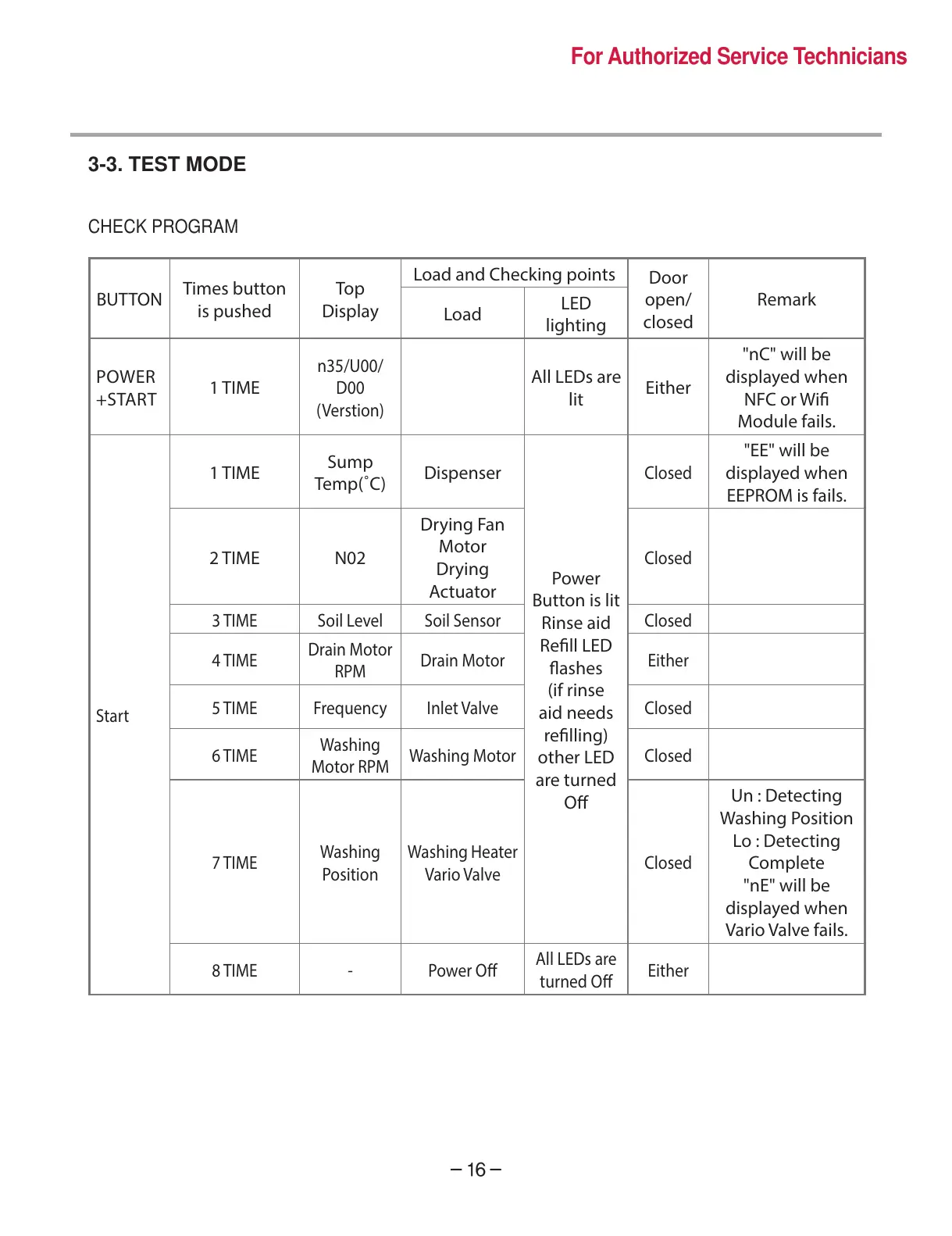

3-3. TEST MODE
BUTTON
Times button
is pushed
Top
Display
Load and Checking points
Door
open/
closed
Remark
Load
LED
lighting
POWER
+START
1 TIME
n35/U00/
D00
(Verstion)
All LEDs are
lit
Either
"nC" will be
displayed when
NFC or Wi
Module fails.
Start
1 TIME
Sump
Temp(˚C)
Dispenser
Power
Button is lit
Rinse aid
Rell LED
ashes
(if rinse
aid needs
relling)
other LED
are turned
O
Closed
"EE" will be
displayed when
EEPROM is fails.
2 TIME N02
Drying Fan
Motor
Drying
Actuator
Closed
3 TIME Soil Level Soil Sensor Closed
4 TIME
Drain Motor
RPM
Drain Motor Either
5 TIME Frequency Inlet Valve Closed
6 TIME
Washing
Motor RPM
Washing Motor Closed
7 TIME
Washing
Position
Washing Heater
Vario Valve
Closed
Un : Detecting
Washing Position
Lo : Detecting
Complete
"nE" will be
displayed when
Vario Valve fails.
8 TIME - Power O
All LEDs are
turned O
Either
CHECK PROGRAM
