For Authorized Service TechniciansFor Authorized Service Technicians

- 35 -

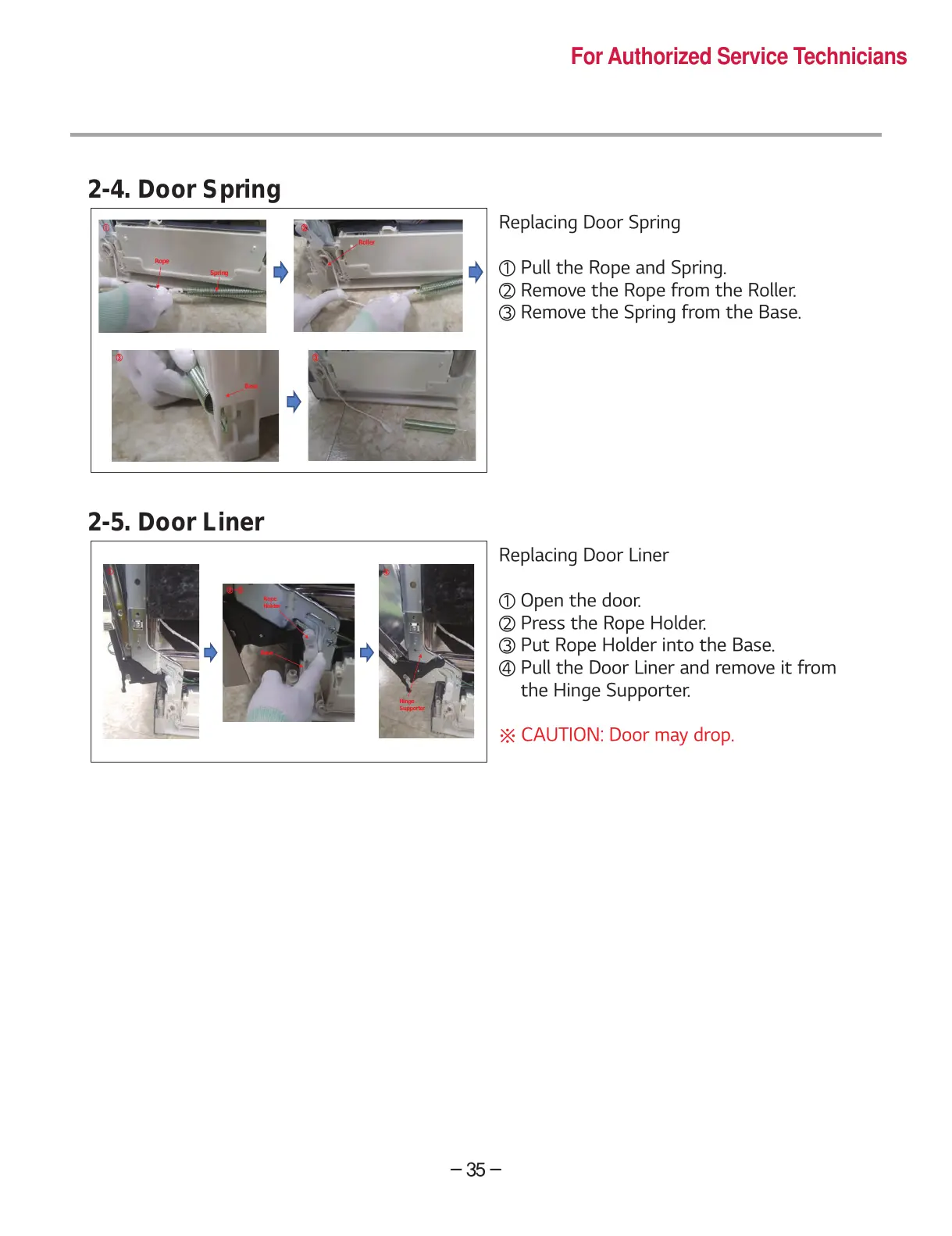

2-4. Door Spring

Rope

Spring

ྙ

Base

ྛ

Roller

ྚ

ྛ

Replacing Door Spring

① Pull the Rope and Spring.

② Remove the Rope from the Roller.

③ Remove the Spring from the Base.

2-5. Door Liner

ྙ

Hinge

Supporter

ྜ

Rope

Holder

Base

ྚ~ྛ

Replacing Door Liner

① Open the door.

② Press the Rope Holder.

③ Put Rope Holder into the Base.

④ Pull the Door Liner and remove it from

the Hinge Supporter.

※ CAUTION: Door may drop.
