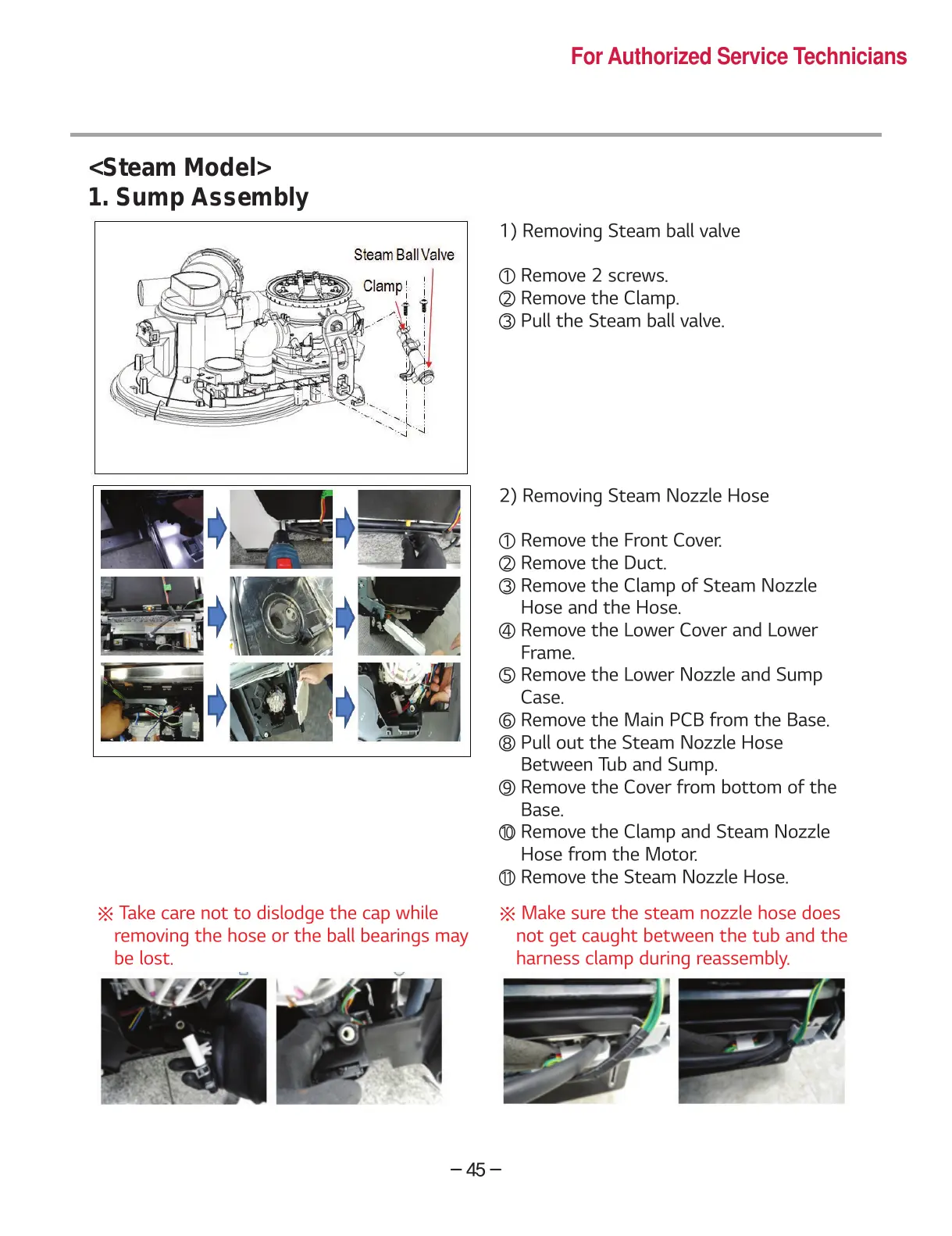

<Steam Model>
1. Sump Assembly
1) Removing Steam ball valve
① Remove 2 screws.
② Remove the Clamp.
③ Pull the Steam ball valve.
2) Removing Steam Nozzle Hose
① Remove the Front Cover.
② Remove the Duct.
③ Remove the Clamp of Steam Nozzle
Hose and the Hose.
④ Remove the Lower Cover and Lower
Frame.
⑤ Remove the Lower Nozzle and Sump
Case.
⑥ Remove the Main PCB from the Base.
⑧ Pull out the Steam Nozzle Hose
Between Tub and Sump.
⑨ Remove the Cover from bottom of the
Base.
⑩ Remove the Clamp and Steam Nozzle
Hose from the Motor.
⑪ Remove the Steam Nozzle Hose.
※ Take care not to dislodge the cap while
removing the hose or the ball bearings may
be lost.
※ Make sure the steam nozzle hose does
not get caught between the tub and the
harness clamp during reassembly.
