LG LFC20760 Series - Resistance Specification of Sensor

- 31 -

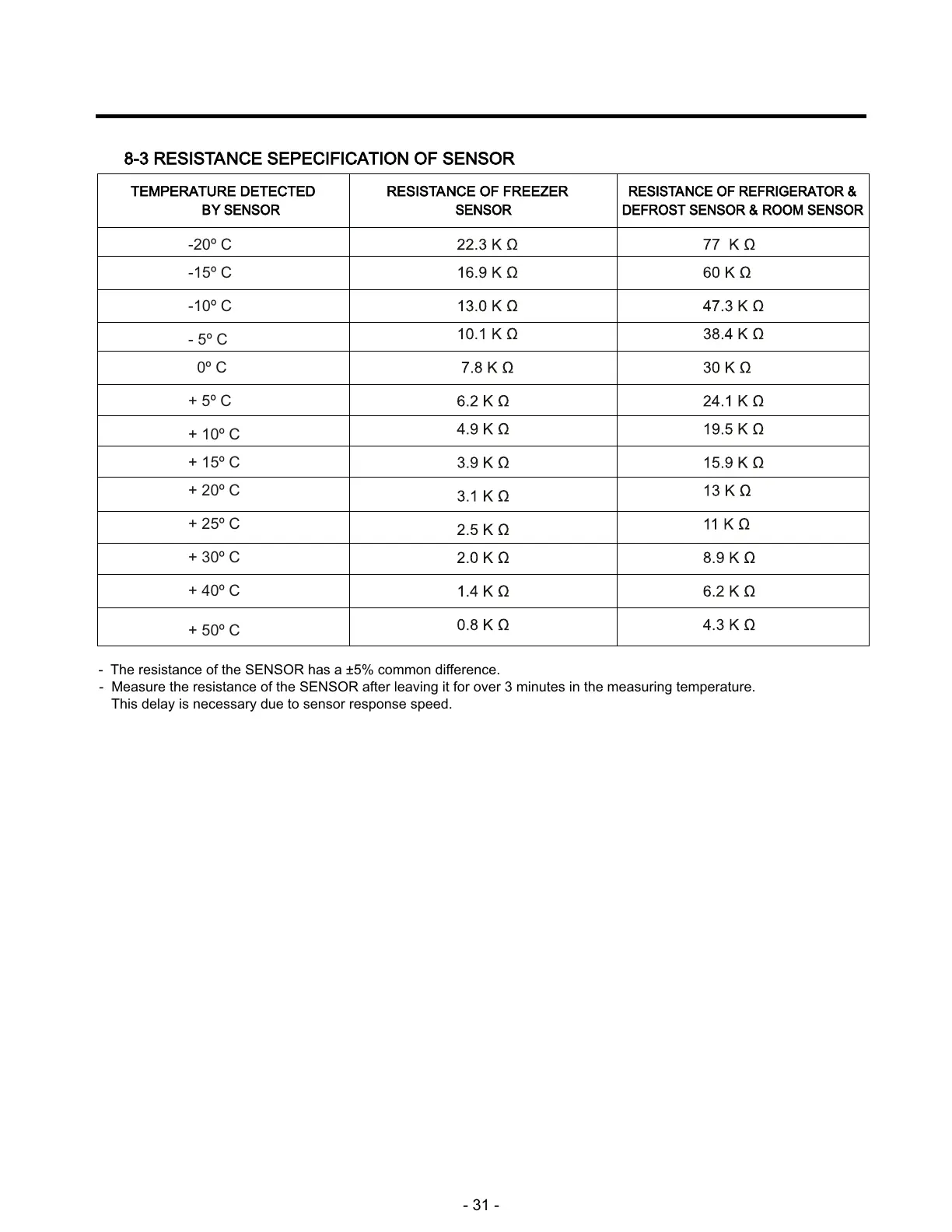

8-3 RESISTANCE SEPECIFICATION OF SENSOR
- The resistance of the SENSOR has a ±5% common difference.
- Measure the resistance of the SENSOR after leaving it for over 3 minutes in the measuring temperature.
This delay is necessary due to sensor response speed.
¥ Measure the F-SENSOR, SUPER FROST SENSOR, R1, R2-SENSOR after disconnect CON5 of PWB ASSY, MAIN.
TEMPERATURE DETECTED RESISTANCE OF FREEZER RESISTANCE OF REFRIGERATOR &
BY SENSOR SENSOR
DEFROST SENSOR & ROOM SENSOR
-20º C
-15º C
-10º C
- 5º C
0º C
+ 5º C
+ 10º C
+ 15º C
+ 20º C
+ 25º C
+ 30º C
+ 40º C
+ 50º C
