LG LFC25765 Series - Page 12

HOWTOREMOVEANDINSTALL
REFRIGERATORDOOR(CONT.)

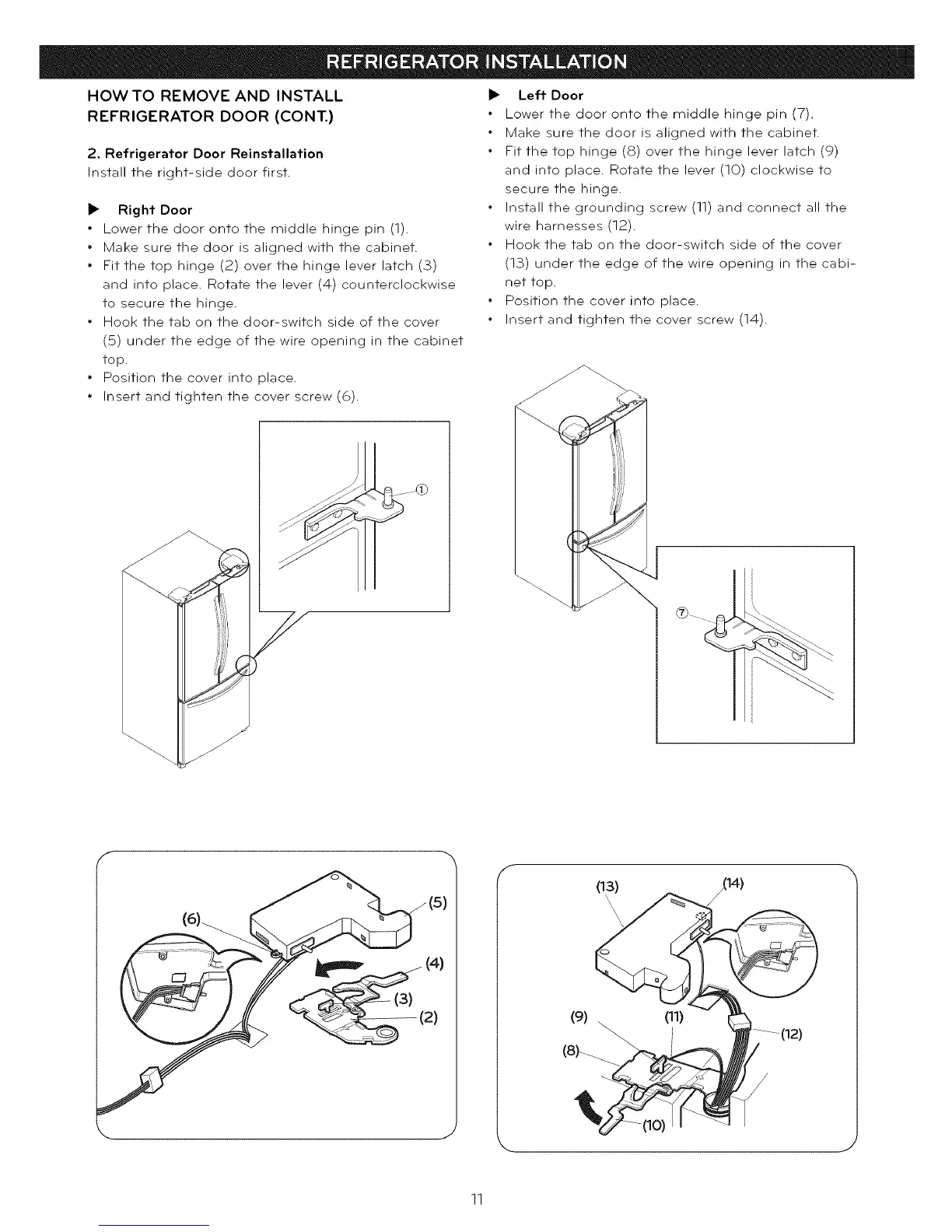

2. Refrigerator Door Reinstallation
Install the right-side door first.
Right Door
• Lower the door onto the middle hinge pin (1).
• Make sure the door is aligned with the cabinet.
• Fit the top hinge (2) over the hinge lever latch (3)
and into place. Rotate the lever (4) counterclockwise
to secure the hinge.
• Hook the tab on the door-switch side of the cover
(5) under the edge of the wire opening in the cabinet
top.
• Position the cover into place.
• Insert and tighten the cover screw (6).
I_ Left Door
• Lower the door onto the middle hinge pin (7).
• Make sure the door is aligned with the cabinet.
• Fit the top hinge (8) over the hinge lever latch (9)
and into place. Rotate the lever (10) clockwise to
secure the hinge.
• Install the grounding screw (11) and connect all the
wire harnesses (12).
• Hook the tab on the door-switch side of the cover
(13) under the edge of the wire opening in the cabi-
net top.
• Position the cover into place.
• Insert and tighten the cover screw (14).
(4)
f
(13) /14)
11
