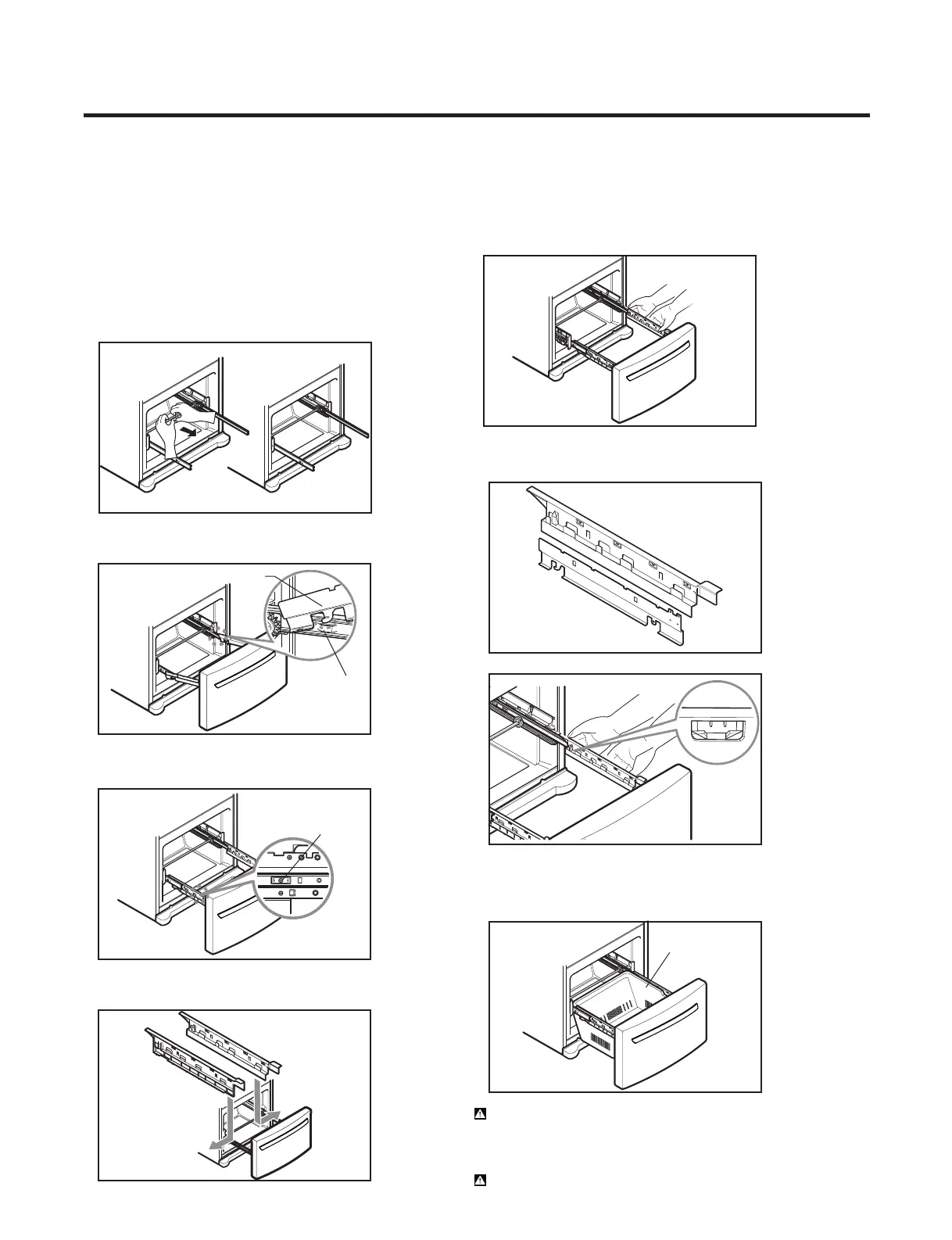

(a) HOW TO INSTALL PULL OUT DRAWER
IMPORTANT: To avoid possible injury, product or
property damage, you will need two people to perform
the following instructions.
• With both hands, hold the center of the bar and pull it
out to let both rails out to full extension simultaneously.
Fig. 1
• Hook door supports into rail tabs.
• Lower door into final position and tighten the screws.
Rail tabes
Door Supports
Screws
Make sure you have a right rail cover for each side.
Right
Rail cover
Left
Rail cover
Fig. 2
Fig. 3
Fig. 4
• Align the top holes of the rail cover with the top holes of
the door supports to assemble the rail cover.
Fig. 5
Verify the hole’s assembly
• With the rails pulled out to full extension, insert the
durabase in the rail assembly.
Durabase
WARNING:To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
WARNING:DO NOT step or sit down on Freezer Door.
Fig. 6
Fig. 7
Fig. 8
•
•
3-22 PULL OUT DRAWER
