9

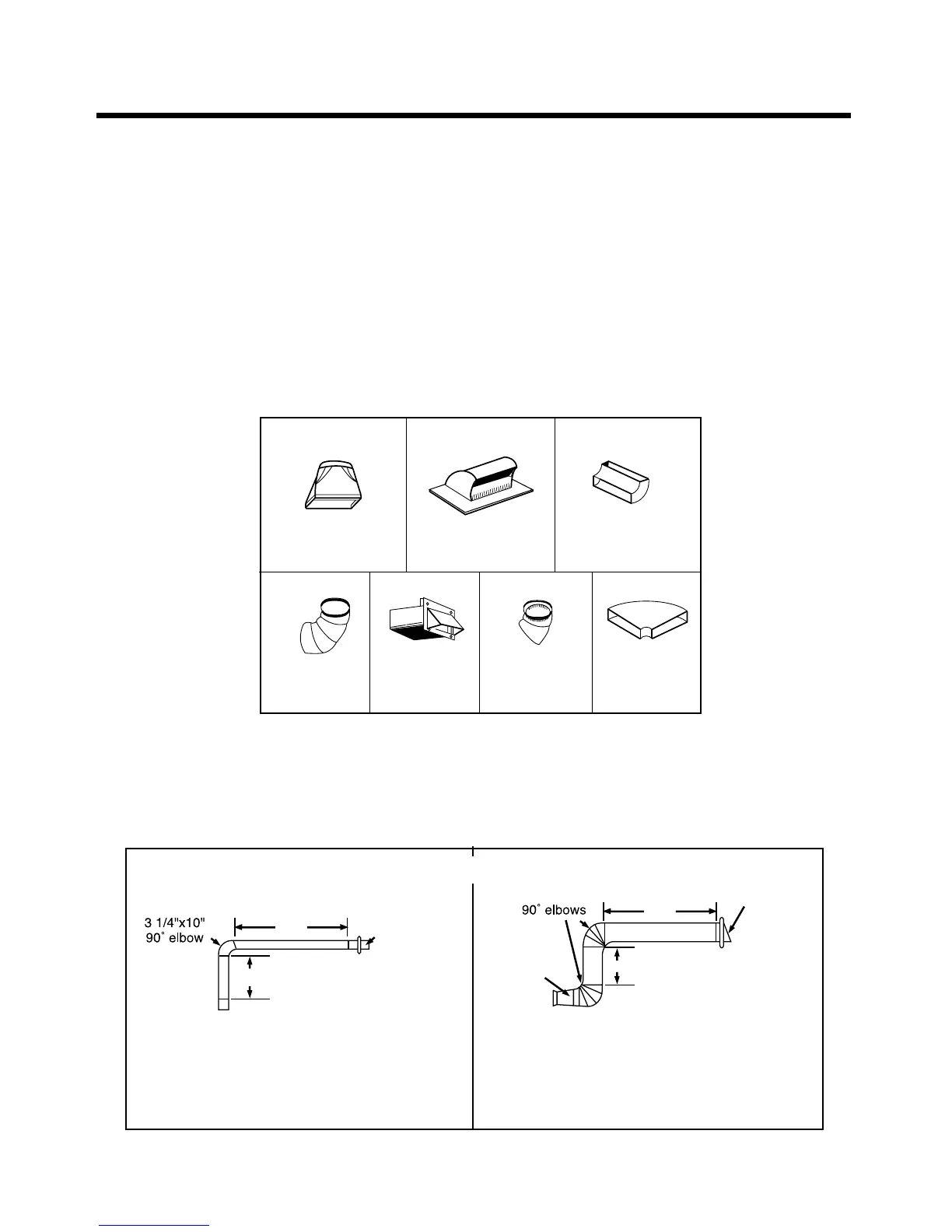

STEP 2: Prepare The Venting System
Standard Fittings
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension
duct installed between the damper assembly and the adapter to prevent the exhaust dampers sticking.
Duct Length
The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not
exceed 140 feet.
For best performance, do not use more than three 90 degree elbows, and keep the length as short as possible.
Below are the standard fittings and their equivalent length in feet.
To calculate the equivalent length of each duct piece used, see the examples below.
Figure 10
6ft.
2ft.
2ft.
wall cap
6ft.
transition
wall cap
For 3 1/4" x 10" SYSTEMS
1 3 1/4 x 10 90° elbow = 25 ft.
1 Wall Cap = 40 ft.
8 feet straight duct = 8 ft.
TOTAL LENGTH = 73 ft.
1 transition = 5 ft.
2 90° elbows = 20 ft.
1 Wall Cap = 40 ft.
8 feet straight = 8 ft.
TOTAL LENGTH = 73 ft.
For 6" ROUND SYSTEMS
3 1/4 x 10
to 6" = 5 ft.
90˚elbow
= 10 ft
45˚elbow
= 5 ft
3 1/4 x 10
wall cap
= 40 ft
3 1/4 x 10
flat elbow
= 10 ft
3 1/4 x 10 roof
cap = 24 ft
3 1/4 x 10 90˚
elbow = 25 ft
1 2 3
4 5 6 7
Examples
