7-16

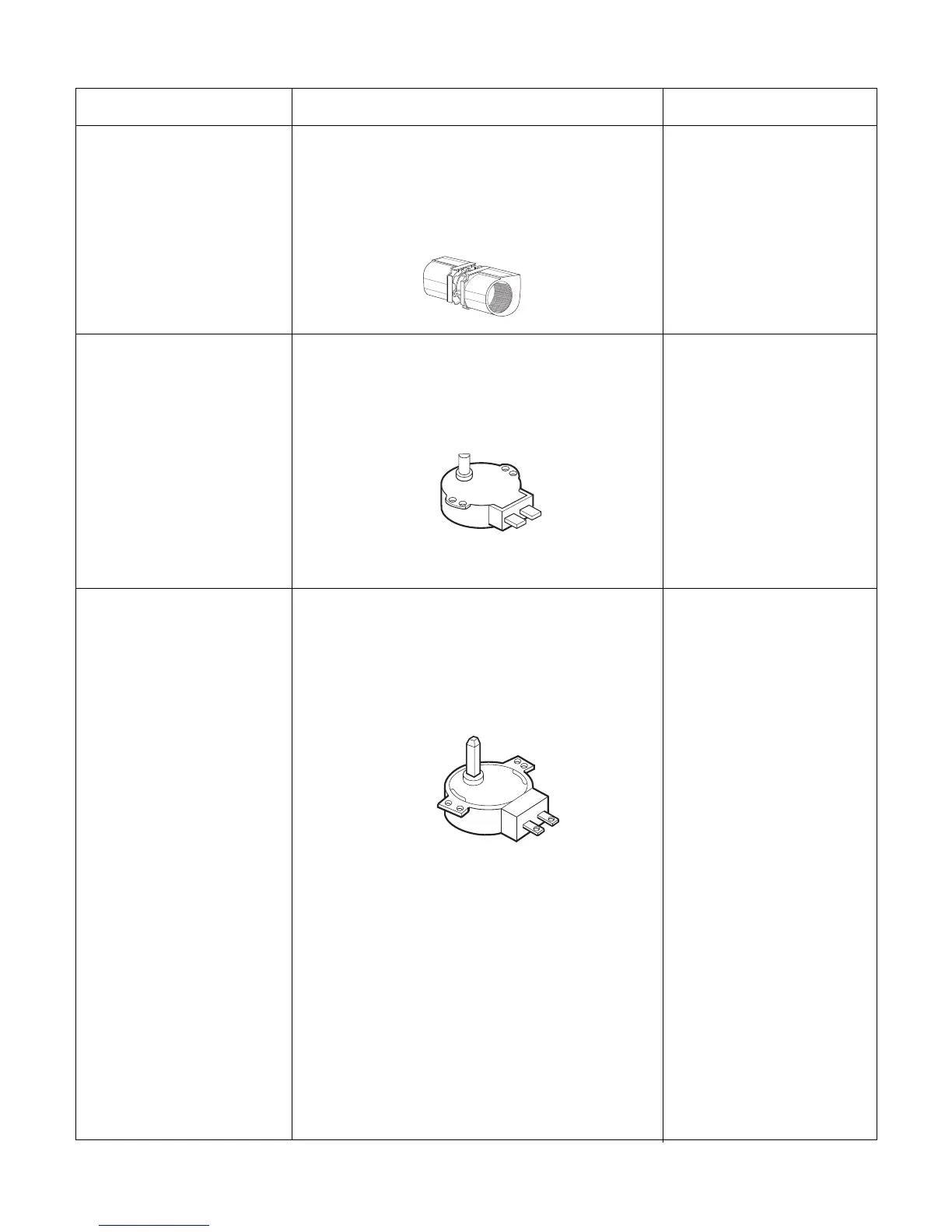

COMPONENTS TEST RESULTS
Normal:
High speed: Approximately
60 to 75 ohm
Low speed: Approximately
110 to 125 ohm
Slow speed: Approximately
65 to 85 ohm
Normal: Approximately
2.5 to 3.5 Kohms
Abnormal:
Infinite or several.
1. Remove lead wires.
2. Measure resistance. (ohm meter scale:Rx1)
High speed : Blue and Black wire
Low speed : Blue and White wire
Slow speed : Blue and Grey wire
1. Remove wire leads.
2. Measure resistance.
(ohm meter scale: Rx1000)
VENTILATION MOTOR
TURNTABLE MOTOR
1. Remove lead wires.
2. Measure resistance.
(ohm meter scale:Rx1000)
Normal:
Approximately 120 to 135 ohms
Abnormal:Infinite
STIRRER MOTOR
To Next Page
