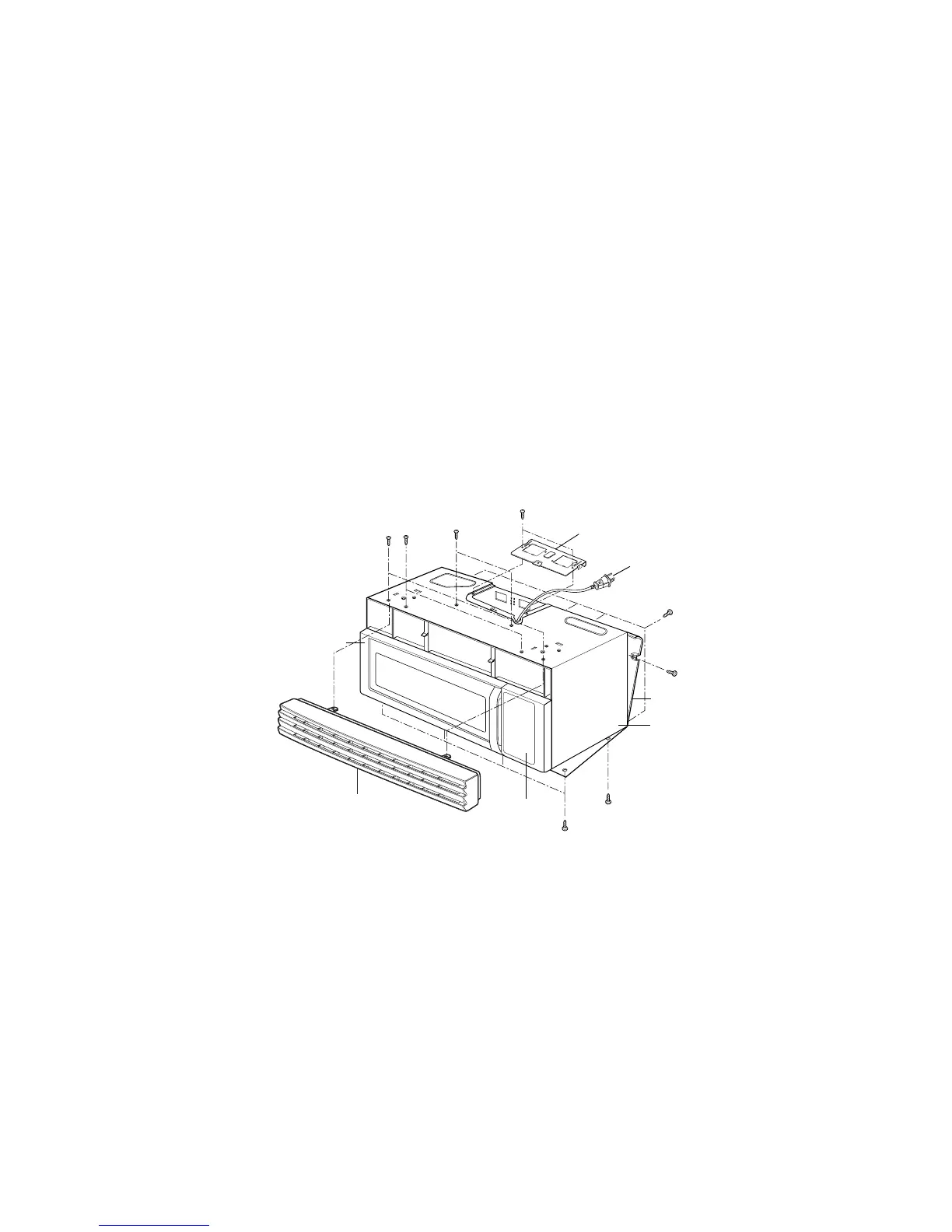

B. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the out case.
(2) Remove two screws securing it to the front bracket.
(3) Remove two screws securing it to the air duct.
(4) Remove the mounting plate by turning the two
screws securing it to the out case.
(5) Remove the base plate by removing six screws
securing it to the out case. Remove the Mount, All
from the out case by removing two screws securing
it to the out case and one screw securing it to the
ventilation motor ASS'Y and cavity.
(6) Remove the power cord cover from outcase by
removing a screw.
(7) Remove the power cord to the inner of the out case
with turning power cord and remove the out case
with pushing it back.
7-6
