7-6
B. REMOVING THE OUTSIDE CASE
(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the outside case.
(2) Remove two screws securing it to the air duct.
(3) Remove the mounting plate by turning the screws
(1 or 2 screws)securing it to the outside case.
(4) Remove two screws on the left central edge and
two screws on the right central edge of Base plate.
Remove the Mount, All from the outside case by
removing one screw securing it to the outside case.
(5) Remove four screws of the rear cavity.
(6) Remove the outside case.

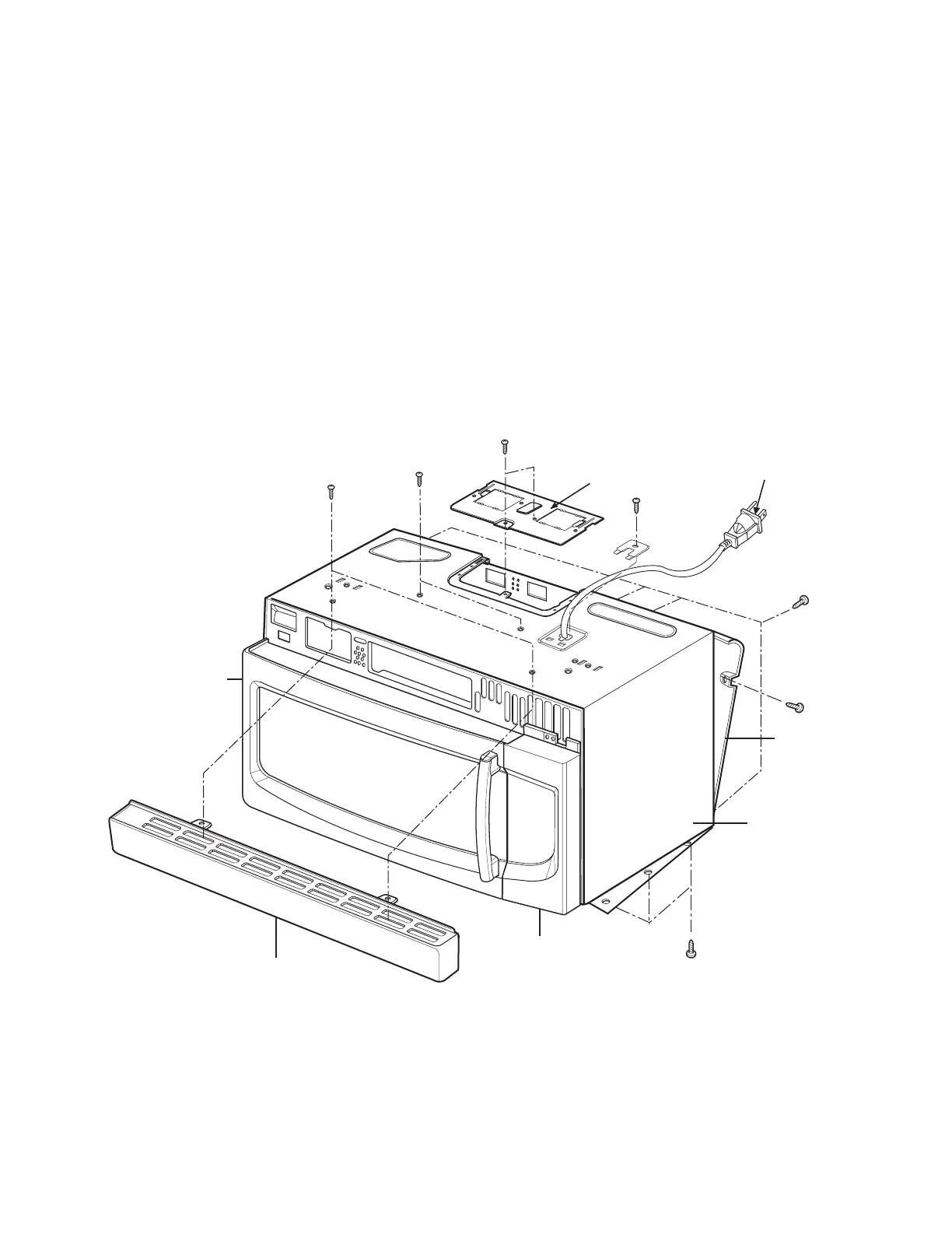

Door
Mount, All
Vent Grille
Controller
Out Case
Mounting
Plate
Power cord
Figure 8
To Next Page
