7-1 OPERATION PRINCIPLE

7-1-1 Operation Principle of IceMaker

7. OPERATION PRINCIPLE AND REPAIR METHOD OF ICEMAKER

- 16 -

1. Turning the Icemaker stop switch off (O) stops the ice making function.

2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.

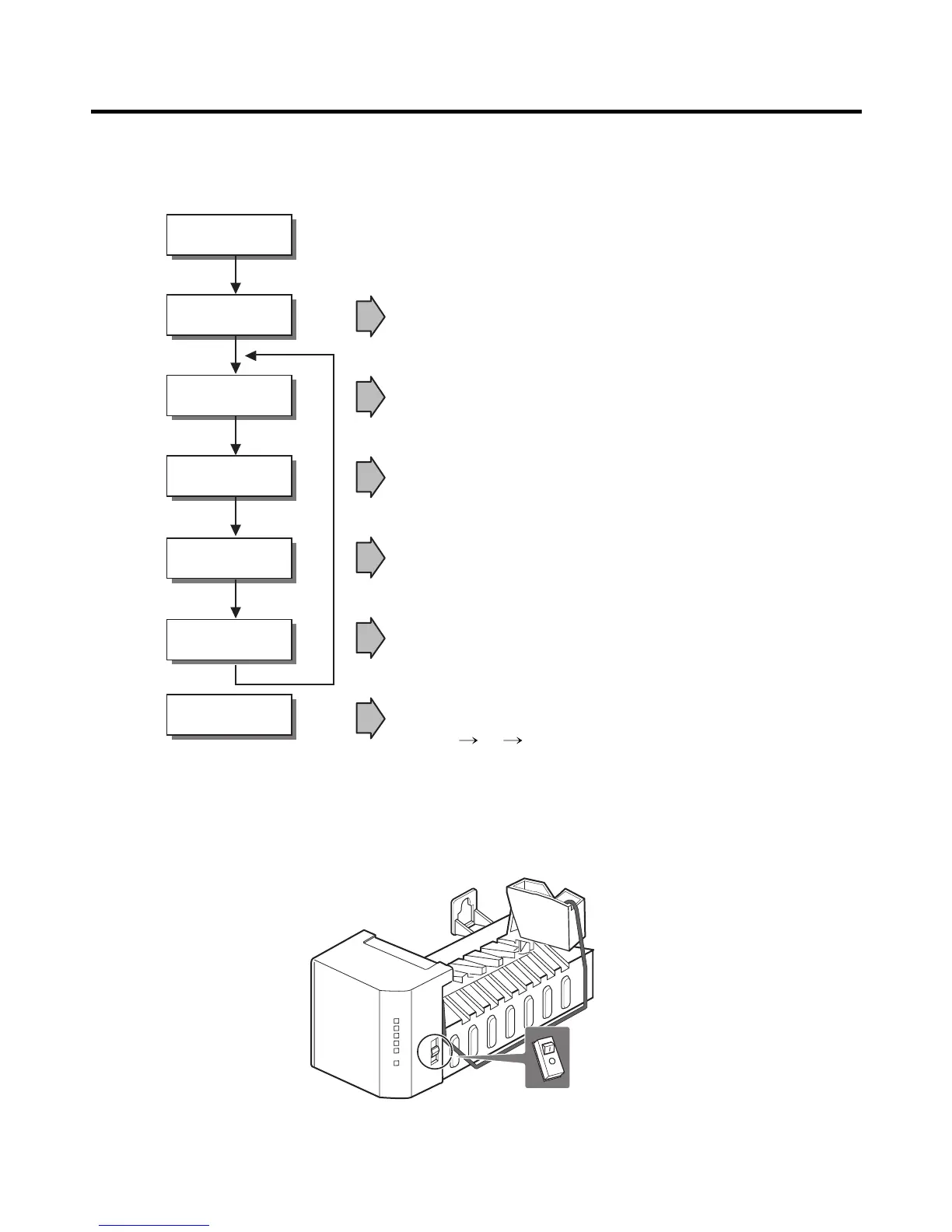

• Adjusts EJECTOR to Start Position with power on.

Power On

Start Position

Ice Making

Mode

Harvest

Mode

Park Position

Fill

Test Mode

• Waits until water becomes cold after starting the

ice making operation.

• Runs MOTOR to drop ice from the tray the ICE BIN.

• Performs Ice Making Mode after supplying water by operating

the SOLENOID in ICE VALVE.

• To operate LINE and SERVICE, press and hold the Fill Key

for 3 seconds. The ice maker will run through 3 stages:

Harvest Fill Icemaking.

• With the detect lever, checks if the ICE BIN is full.
