LG LS-J0761HL - Indoor Unit Component Removal; Control Box and Discharge Grille Removal

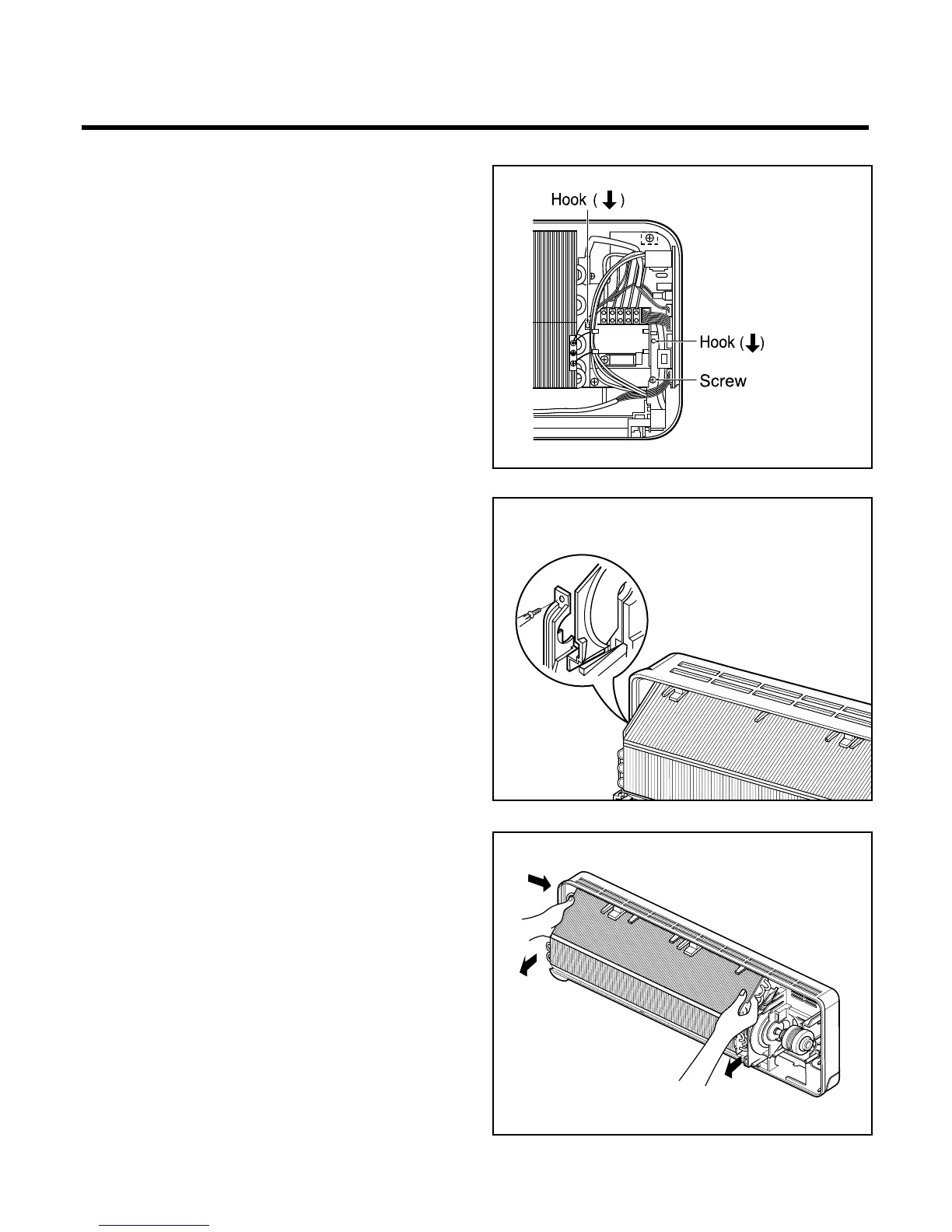

2. To remove the Control Box.
• Remove 2 securing screws.
• Pull the control box out from the chassis
carefully.
3. To remove the Discharge Grille.
• Remove the securing screw.
• Pressing the right side of the discharge grille
downward slightly, unhook the discharge grille.
• Pull the discharge grille out from the chassis
carefully.
• Unhook the left side of the discharge grille and
pull the discharge grille out from the chassis
carefully.
4. To remove the Evaporator.
• Remove 3 screws securing the evaporator(at the
left 2EA in the Eva Holder, at the right 1EA).
-40-
