Ch5. Removing and replacing a part
■ 110 0 Key Deck
Remove the following parts in order before replacing this part
1. Battery Pack(1010) 2. Hard Disk Drive(1020) 3. W/L LAN Card(1030) 4. Keyboard(1040)
5. Retainer(1050) 6. Keyboard plate(1060) 7. Keyboard plate(1070) 8. Hinge Cover(1080)
9. Display Module(1090)

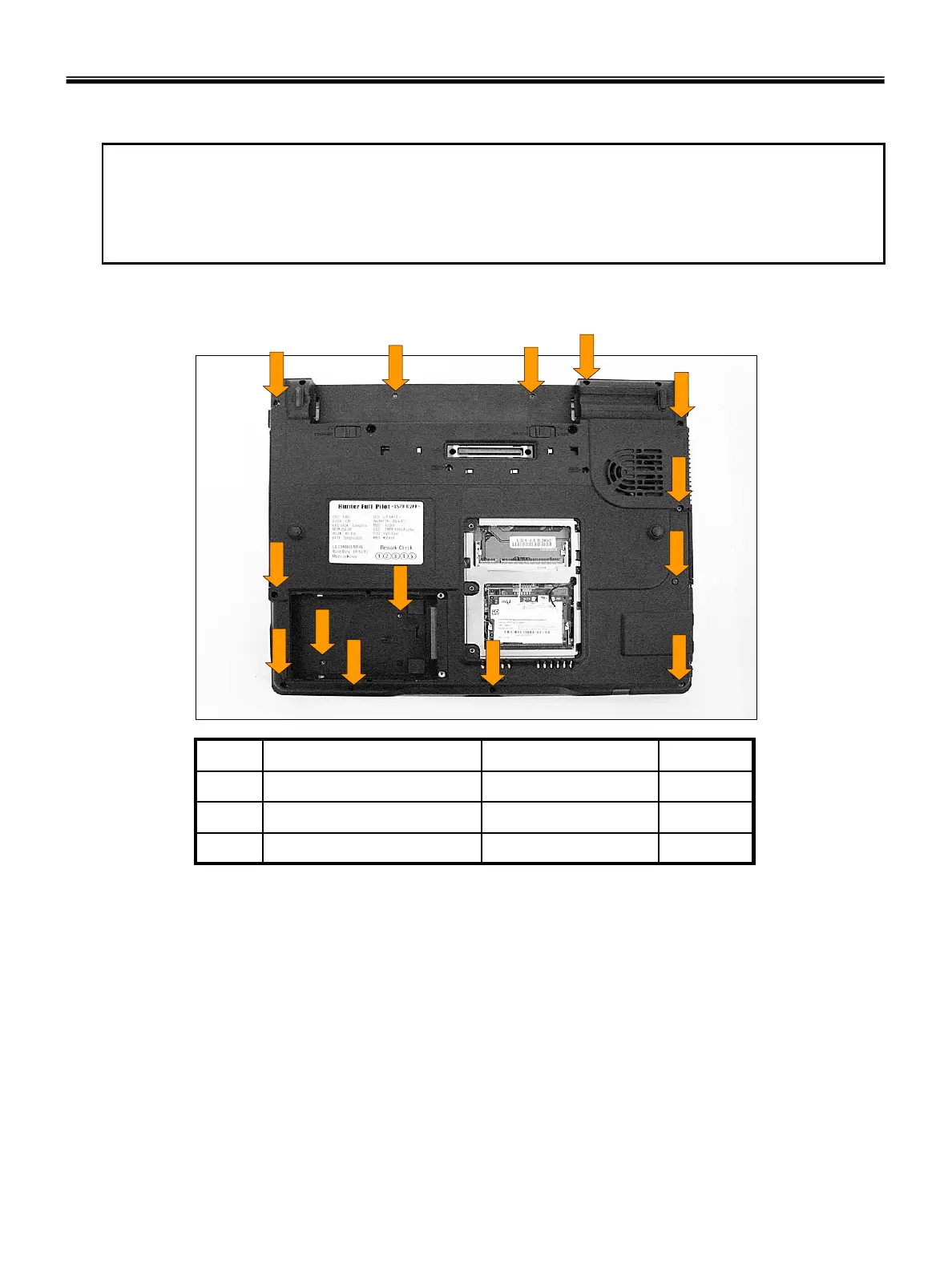

1. Remove 14 screws.
1
2
1
3
3
3
1
1
3
1
1
1
1
1
9M2.5 X L6.51SZZBA4097A1
1M2.5 X L8.01SZZBA4039B2
4M2.0 X L3.01SZZBA4017A3
QtySpecificationFRU No.No.
