Part 1 General Information
- 9 -
Copyright ©2017 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

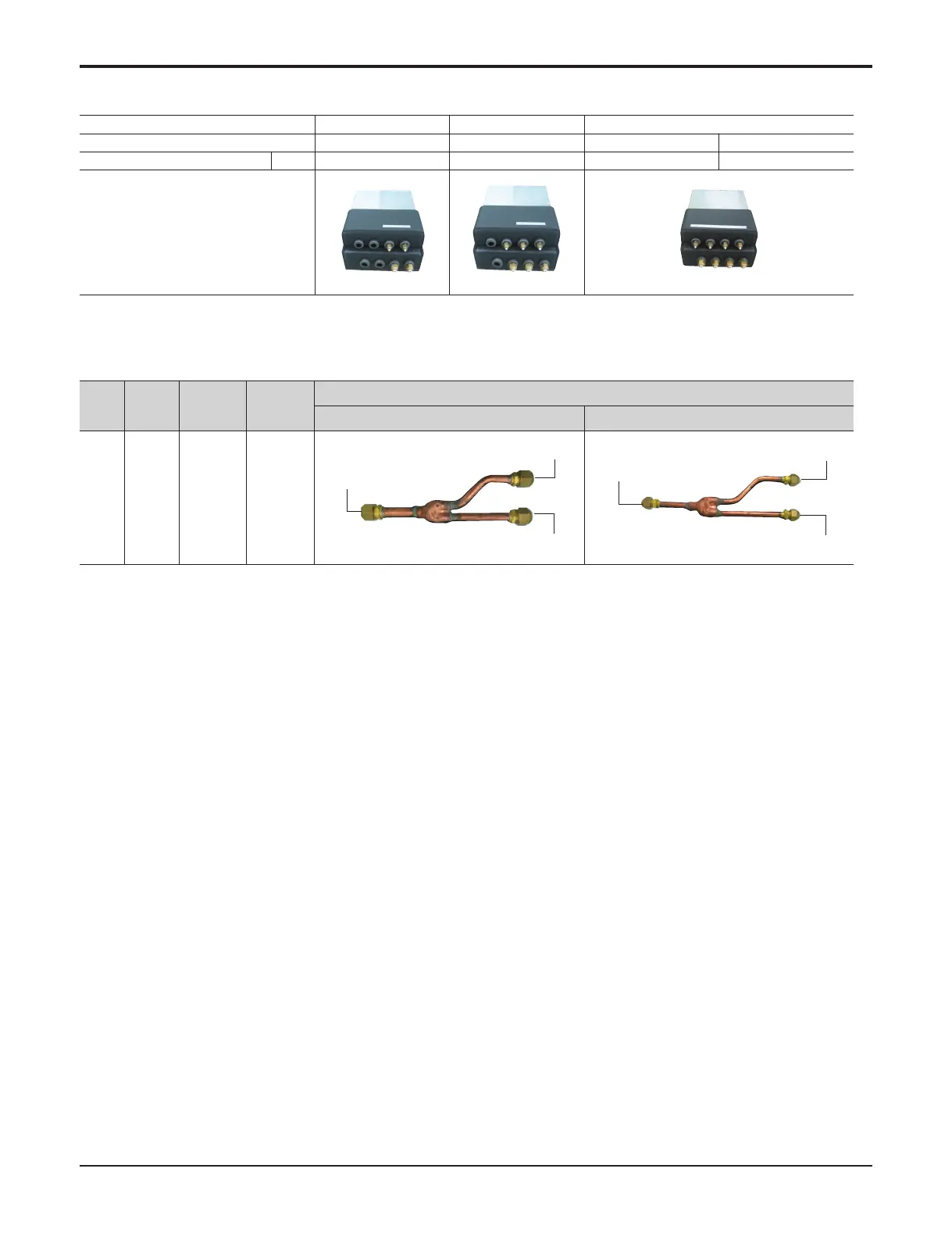

2.3 BD(Branch distributor) units
2.4 Branches
Branch
Type
No. of BD
Units
Accessory
Model Name
Applicable
Model
Specifications
Gas Liquid
Y-
Branch
2 PMBL5620
MULTI F MAX
To BD unit Ø19.05 (3/4)
Ø19.05 (3/4)
To ODU
Ø19.05 (3/4)
To BD unit Ø9.52 (3/8)
Ø9.52 (3/8)
To ODU
Ø9.52 (3/8)
No. of connectable indoor units(Min. ~ Max.) 1 ~ 2 1 ~ 3 1 ~ 4
Model name PMBD3620 PMBD3630 PMBD3640 PMBD3641
Connectable indoor unit capacity kBtu/h 9 ~ 24 9 ~ 24 9 ~ 24 9 ~ 36
BD unit
