Multi V 5 Cooling Only
5. Field Wiring
94
Outdoor Units
WARNING
• Indoor Unit ground Lines are required for preventing electrical shock accident during current leakage,
Communication disorder by noise effect and motor current leakage (without connection to pipe).
• Don't install an individual switch or electrical outlet to disconnect each of indoor unit separately from
the power supply.
If individual power supply is necessary for each indoor unit, IPM (Independent Power Module) should
be applied at each indoor unit. (optional)
• Install the main switch that can interrupt all the power sources in an integrated manner because this
system consists of the equipment utilizing the multiple power sources.
• If there exists the possibility of reversed phase, lose phase, momentary blackout or the power goes on
and off while the product is operating, attach a reversed phase protection circuit locally.
Running the product in reversed phase may break the compressor and other parts.
Between Indoor and Master Outdoor unit
The GND terminal at the main PCB is a ‘-’ terminal for dry contact. It is not the point to make ground connection.
• Make sure that terminal number of master and slave outdoor units are matched.(A-A,B-B)

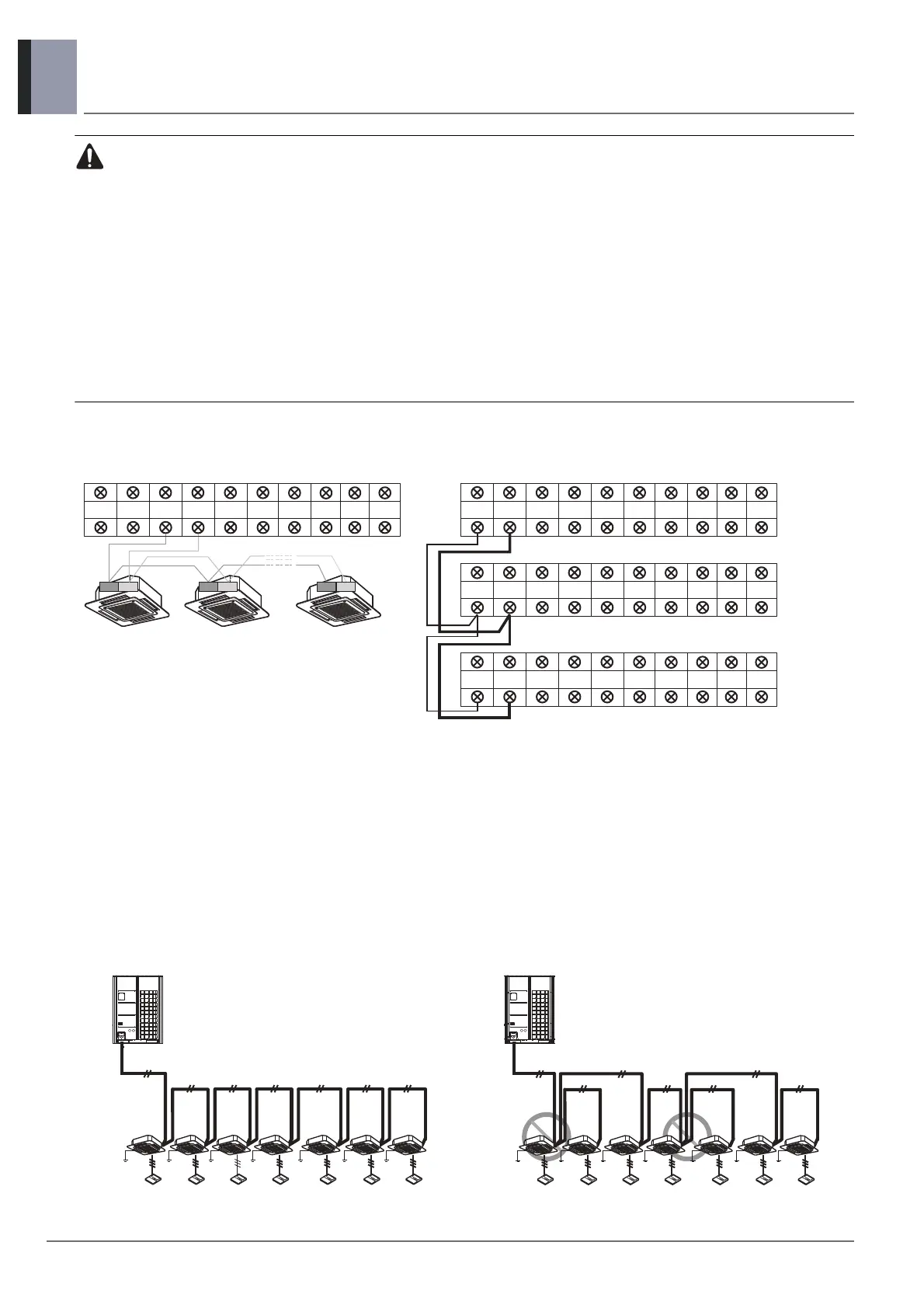

Example Connection of Communication Cable
• Connection of communication cable must be installed
like below figure between indoor unit to outdoor unit.
• Abnormal operation can be caused by communication
defect, when connection of communication cable
isinstalled like below figure.
BUS Type STAR Type
34 34 34
Slave1
Outdoor Unit
Master
Outdoor unit
Slave2
Outdoor Unit
Master
Outdoor Unit
SODU.B SODU.A IDU.B IDU.A CEN.B CEN.A DRY1 DRY2 GND 12V SODU.B SODU.A IDU.B IDU.A CEN.B CEN.A DRY1 DRY2 GND 12V
SODU.B SODU.A IDU.B IDU.A CEN.B CEN.A DRY1 DRY2 GND 12V
SODU.B SODU.A IDU.B IDU.A CEN.B CEN.A DRY1 DRY2 GND 12V
To Next Page
