LG OLED65B7A

- 16 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

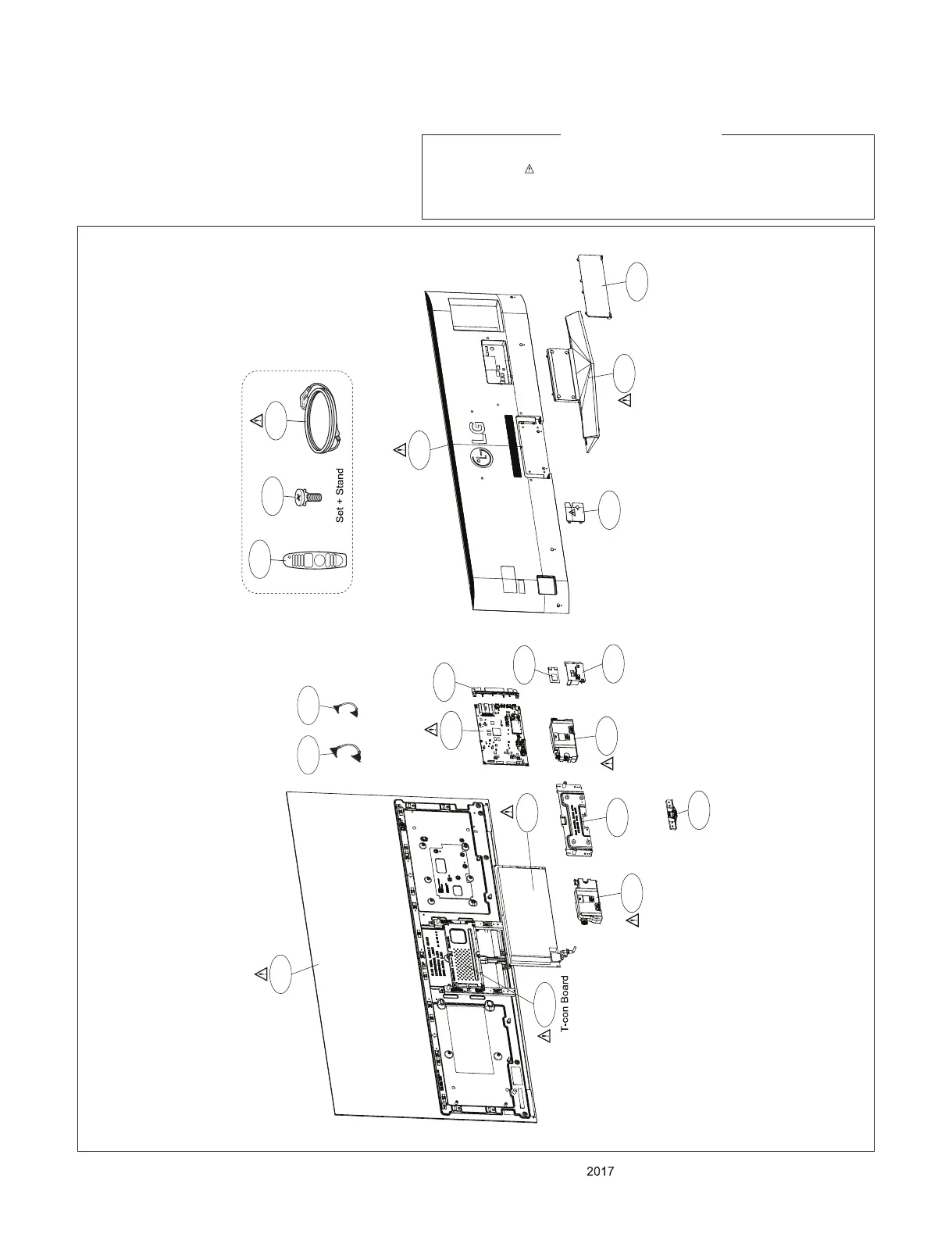

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
200
400
540
521
200T
120
121
710
700
A10
AR2
920
900
810
571
LV1 LV 2
570
500
530
