Standard Repair Process Detail Technical Manual
Adjustment Test pattern
A. Video error_Color error

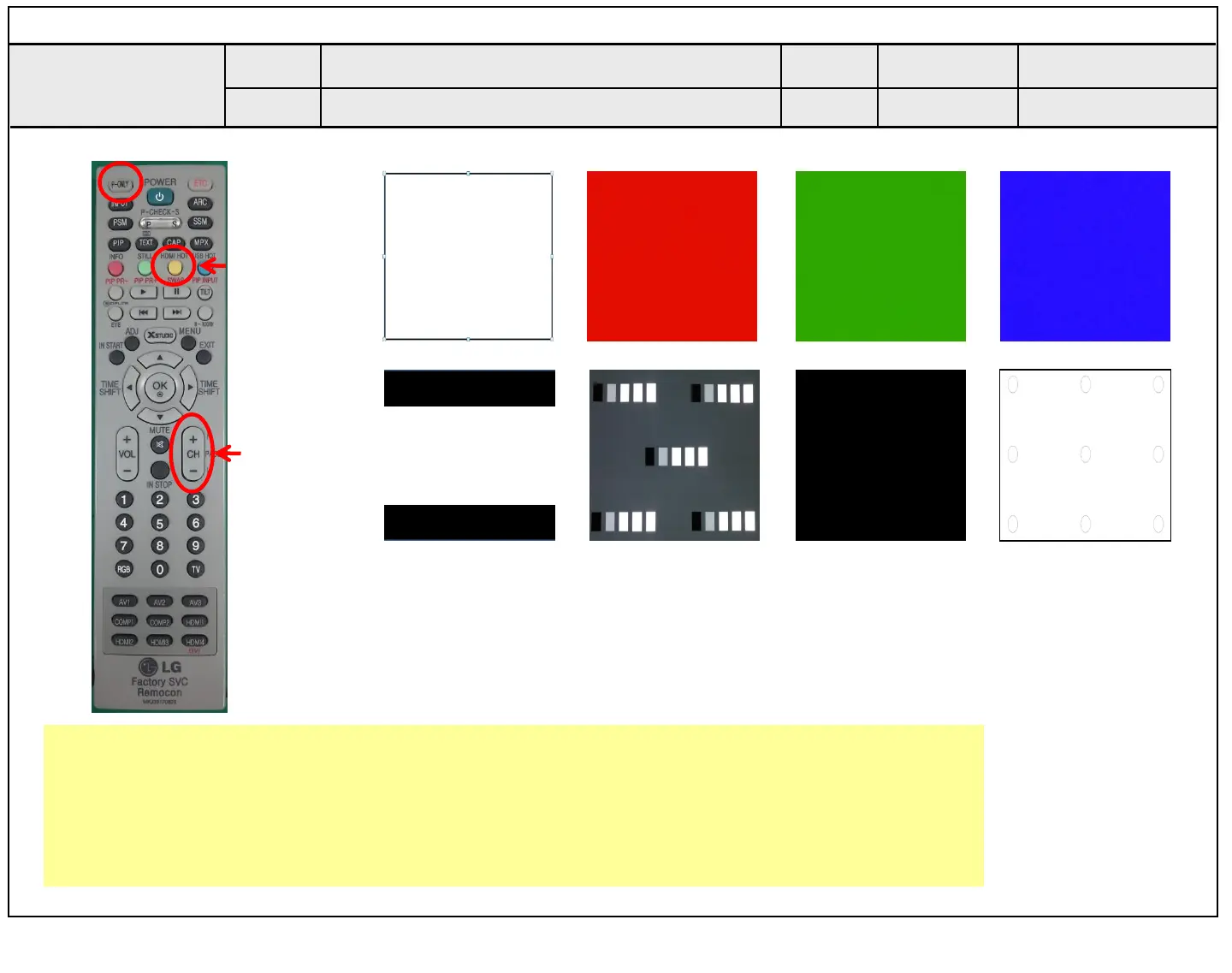

Press the P-ONLY HDMI HOT CH + or -
You can view 11 types of patterns using the CH+ or - key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A15
Established
date
Revised
date
Error
symptom
Content
A15
1
2
3
