LG OLED65B7P User Manual

3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.

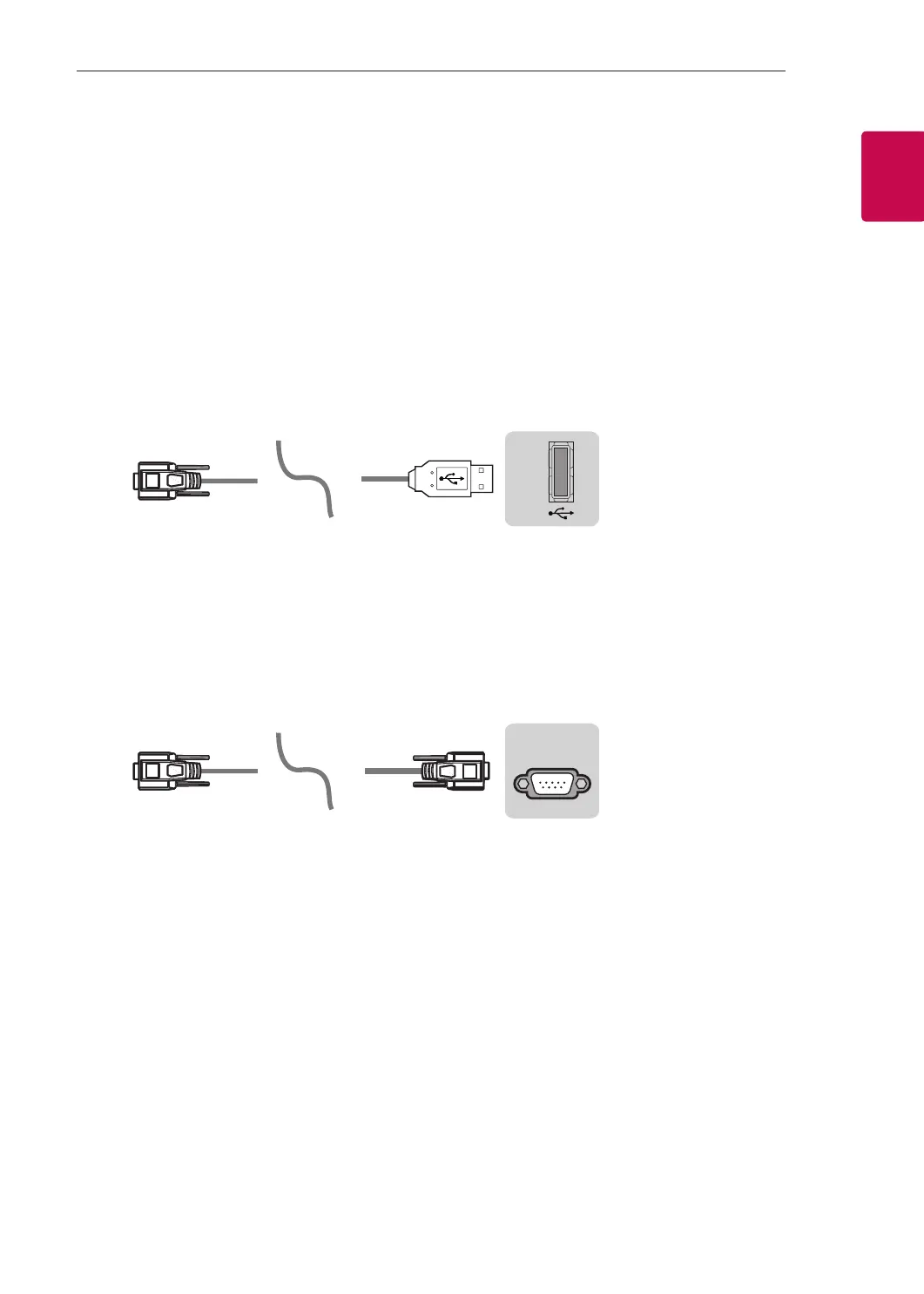

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC
)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC
)
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
The connection interface may differ from your TV.

LG OLED65B7P Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	64.5 \
Display brightness	- cd/m²
Display technology	OLED
Motion interpolation technology	-
HDCP	Yes
PC in (D-Sub)	No
RF ports quantity	1
HDMI ports quantity	4
USB 2.0 ports quantity	3
Consumer Electronics Control (CEC)	SimpLink
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Operating system version	3.5
Operating system installed	Web OS
Audio decoders	DTS, Dolby Atmos, DTS-HD
RMS rated power	40 W
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Product color	Silver
Panel mounting interface	300 x 200 mm
Package depth	228.6 mm
Package width	1679 mm
Package height	950 mm
Package weight	34500 g
Tuner type	Analog & digital

Weight and Dimensions

Depth (with stand)	226 mm
Height (with stand)	881.4 mm
Weight (with stand)	26400 g
Depth (without stand)	48 mm
Width (without stand)	1450 mm
Height (without stand)	830.6 mm
Weight (without stand)	23100 g
