LG OLED65C9PTA Service Manual

- 15 -
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

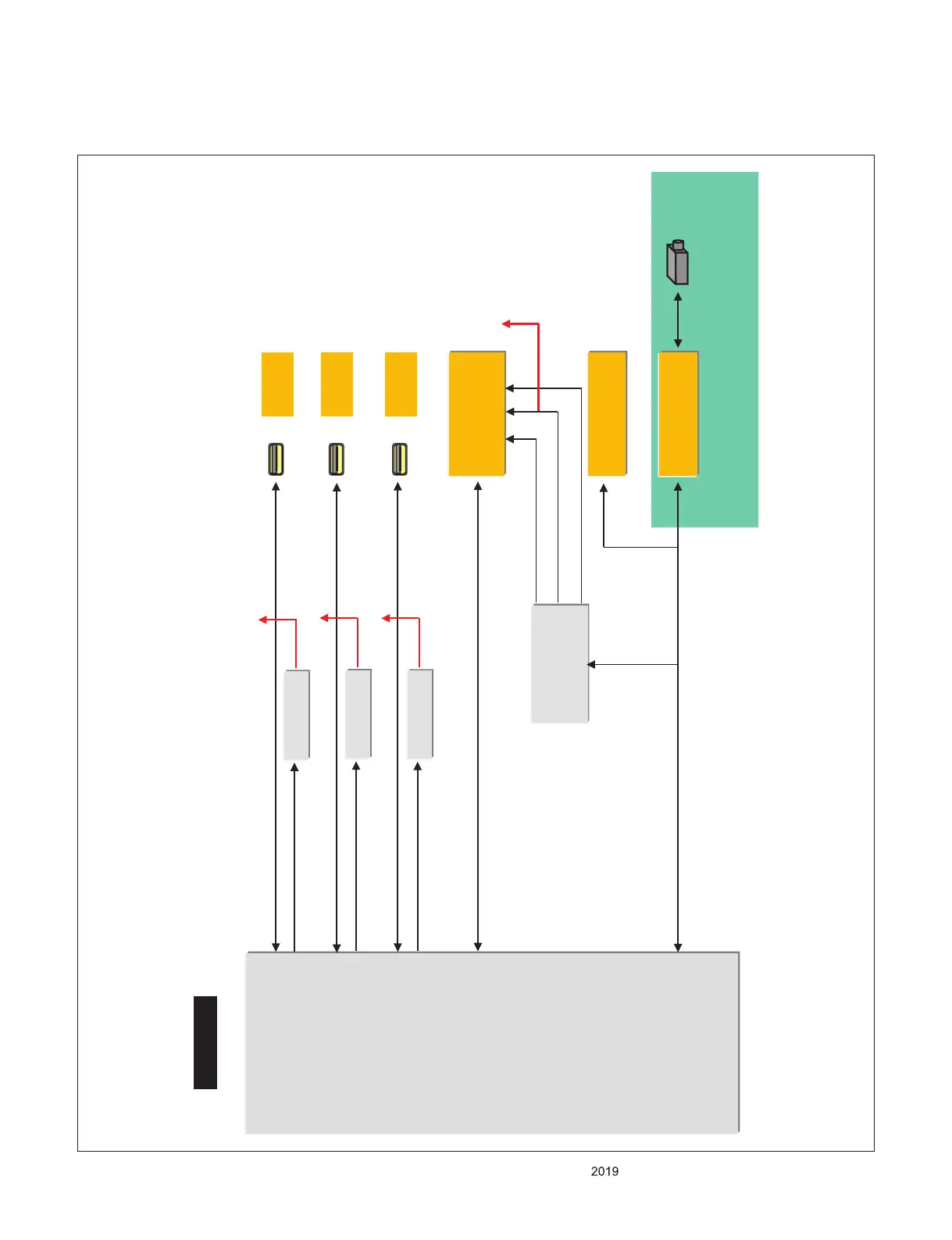

IR + Wi-Fi /BT
Wafer 24P
P4000
[UART0_RXD/GPIO106]
RS232 IC
IC7200
WIFI_DP / DM
MICOM
IC3000
WOL/WIFI_POWER_ON
[USB2_2_DP0 / DM0]
SOC_RX/TX
[USB3_0_DP0/DM0]
[USB2_1_DP0 / DM0]
USB2.0_2_DP1 / DM1 USB2.0_3_DP0 / DM0
[USB2_0_DP0 / DM0]
JK7200 RS232C phone Jack
SOC_RX/TX
UART wafer
P3401, P3402
SOC_RX/TX
USB 2
(2.0)_H
USB 3
(2.0)_H
WIFI_EN
OCP
[EB_CS0]
USB_CTL1
+5V_USB_1
OCP
[GPIO95]
USB_CTL2
+5V_USB_2
OCP
[SPI_DO1]
USB_CTL3
+5V_USB_3
[UART0_TXD/GPIO105]
Main SoC
USB 2
(2.0)_V
USB2.0_1_DM0/DP1
COMBO_RESET BT_WAKEUP_DEVICE BT_WAKEUP_HOST
+3.5V_WIFI
For Korea Region Component/AV, RS - 232C
Spec. out
5. USB / Wi-Fi / M-Remote / UART
