▶ Power Board Muitl Gender JIG
2014
LCD POWER”
“A:
2013

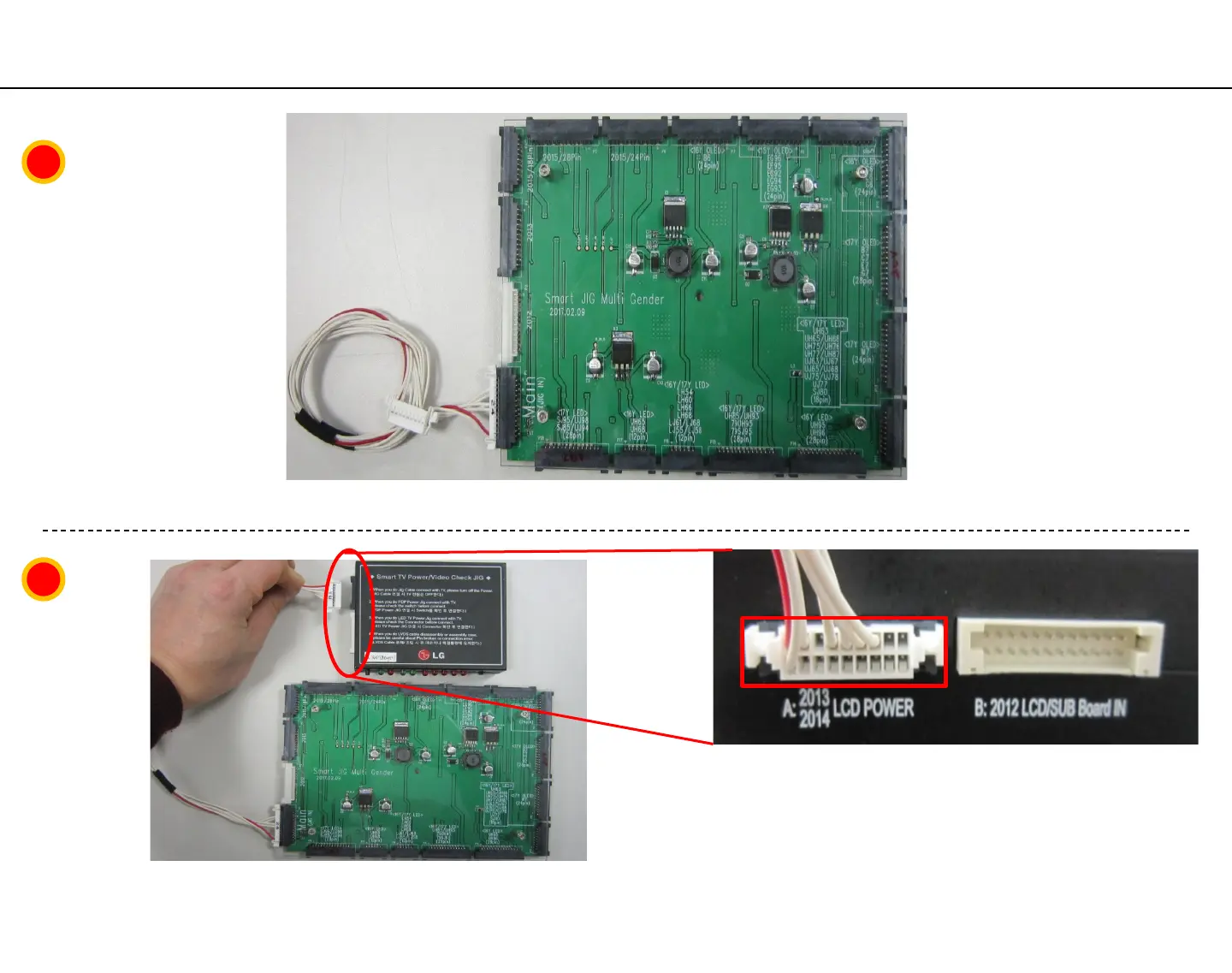

Power Board Muitl Gender How to Connect
▶ Connect the Muiti Gender to the connector (black)
as shown in picture 2 of the Smart JIG.
