LG OLED65CXPUA Service Manual

- 3 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

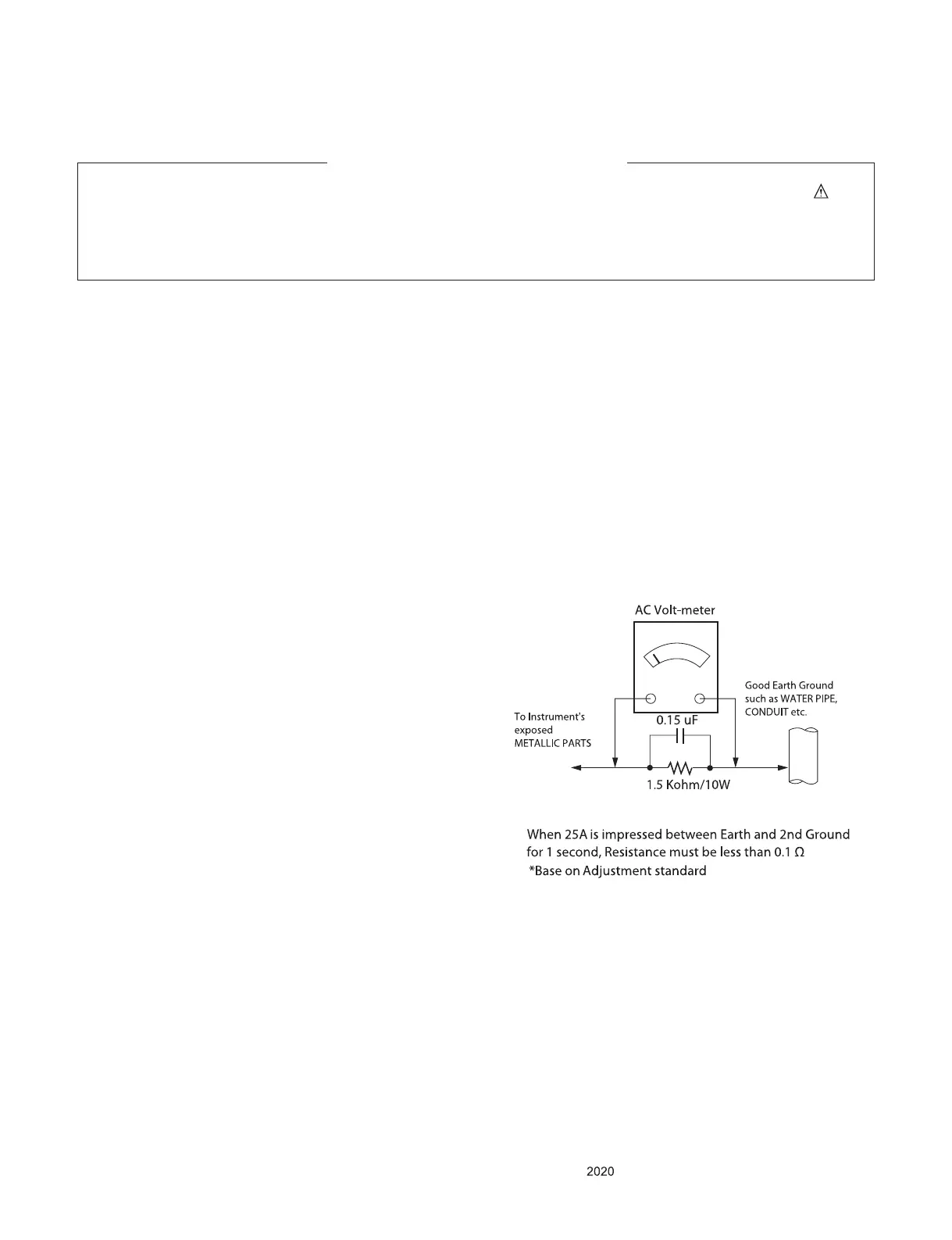

Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

LG OLED65CXPUA Specifications

General

Screen Type	oled
Color	black
Wall Mount	300mm x 200mm
Features	hdr dynamic tone mapping pro, advanced contrast enhancer, face enhancing, ultra luminance pro, quad step noise reduction, billion rich colors
Tuner	digital
Screen Size	64.5 inches, 65 inches
Resolution	4k (2160p)
Refresh Rate	120hz
Closed Captioning	yes
HDR	yes
HDR Format	dolby vision, hdr 10, hybrid log-gamma (hlg)
Built-In Speakers	true, front firing
Surround Sound	dts-hd, dolby atmos, oled surround
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
HDMI ARC Ports	yes
USB Ports	3
USB 2.0 Ports	3
Ethernet	yes
RF Antenna	yes
Bluetooth	true, 5.0
Network	built-in wi-fi, ethernet
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	apple tv+, paramount+, crackle, disney+, fandango, google play movies & tv, hulu, netflix, pandora, peacock, prime video, redbox, showtime, sirius, starz, sling tv, spotify, twitch, vudu, youtube, youtube tv, iheartradio
Smart Applications	amazon alexa, apple homekit, google assistant
Other Devices Connection	mobile to tv
Voice Assistant	amazon alexa, google assistant
Remote Control	magic
3D	no
Power Consumption	240 kilowatt hours
Depth with Stand	9.9 inches
Height with Stand	33.9 inches
Width with Stand	57.1 inches
Net Weight with Stand	74.7 pounds
Depth without Stand	1.8 inches
Height without Stand	32.7 inches
Net Weight without Stand	55.6 pounds
