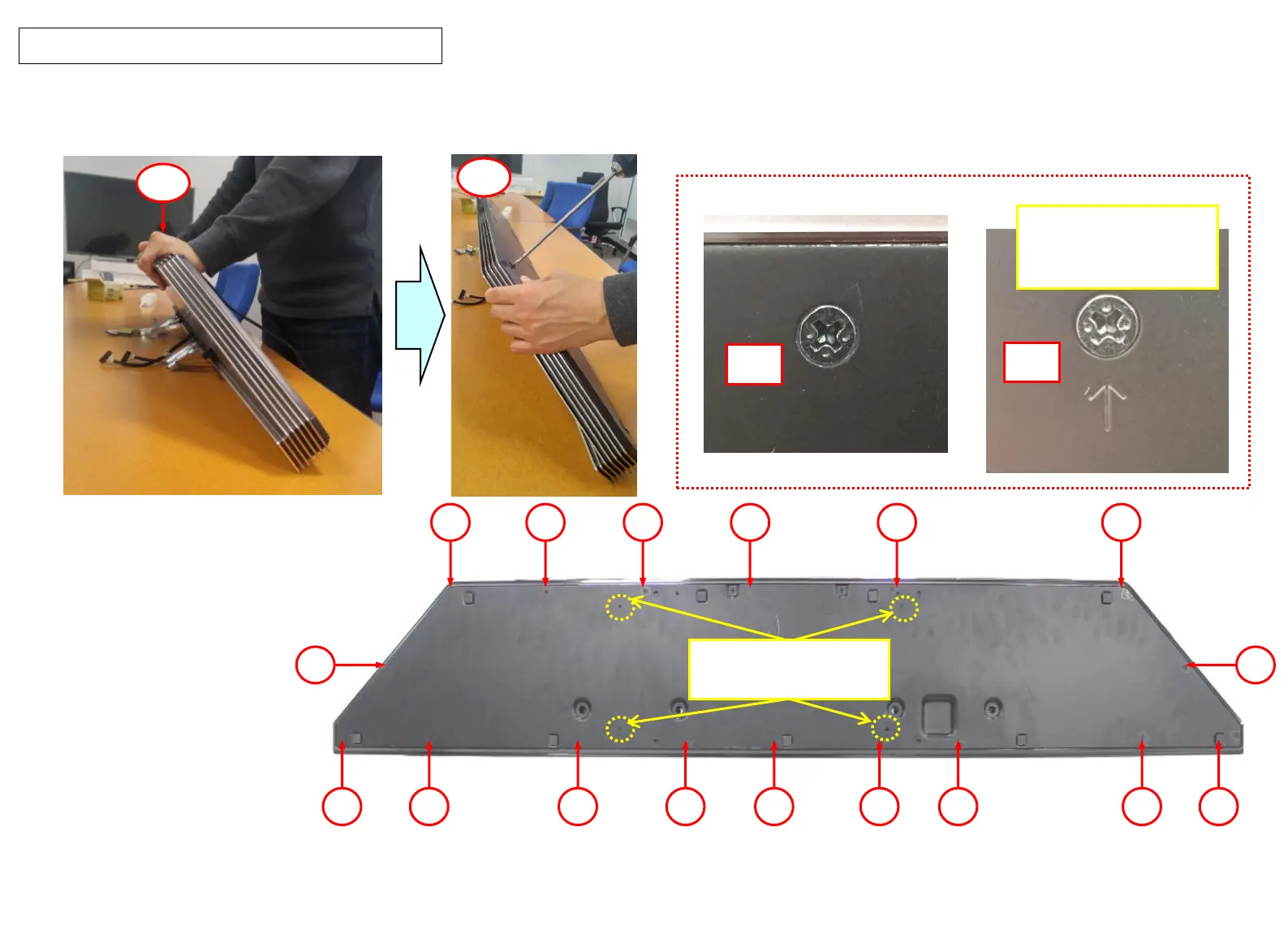

(6-1) Turn and put down the AV BOX like a picture. Before that, cover the table with a cotton sheet or something like that.
(6-2) Unfasten the [A] Screw 17EA and Do not unfasten [b] Screw 4EA.
You need to check the arrow. If there are arrow marked screws, Do not unfasten that.
6-2 6-2 6-2 6-2 6-2 6-2 6-2 6-2 6-2
6-2 6-2
6-2 6-2 6-2 6-2 6-2 6-2
6-1
6-2
※ Do not unfasten
these screws
[A]
[B]
OLED65G6 Disassembly Guide
※ Do not unfasten
arrow marked
screws
