LG OLED65G6P-U - Page 50

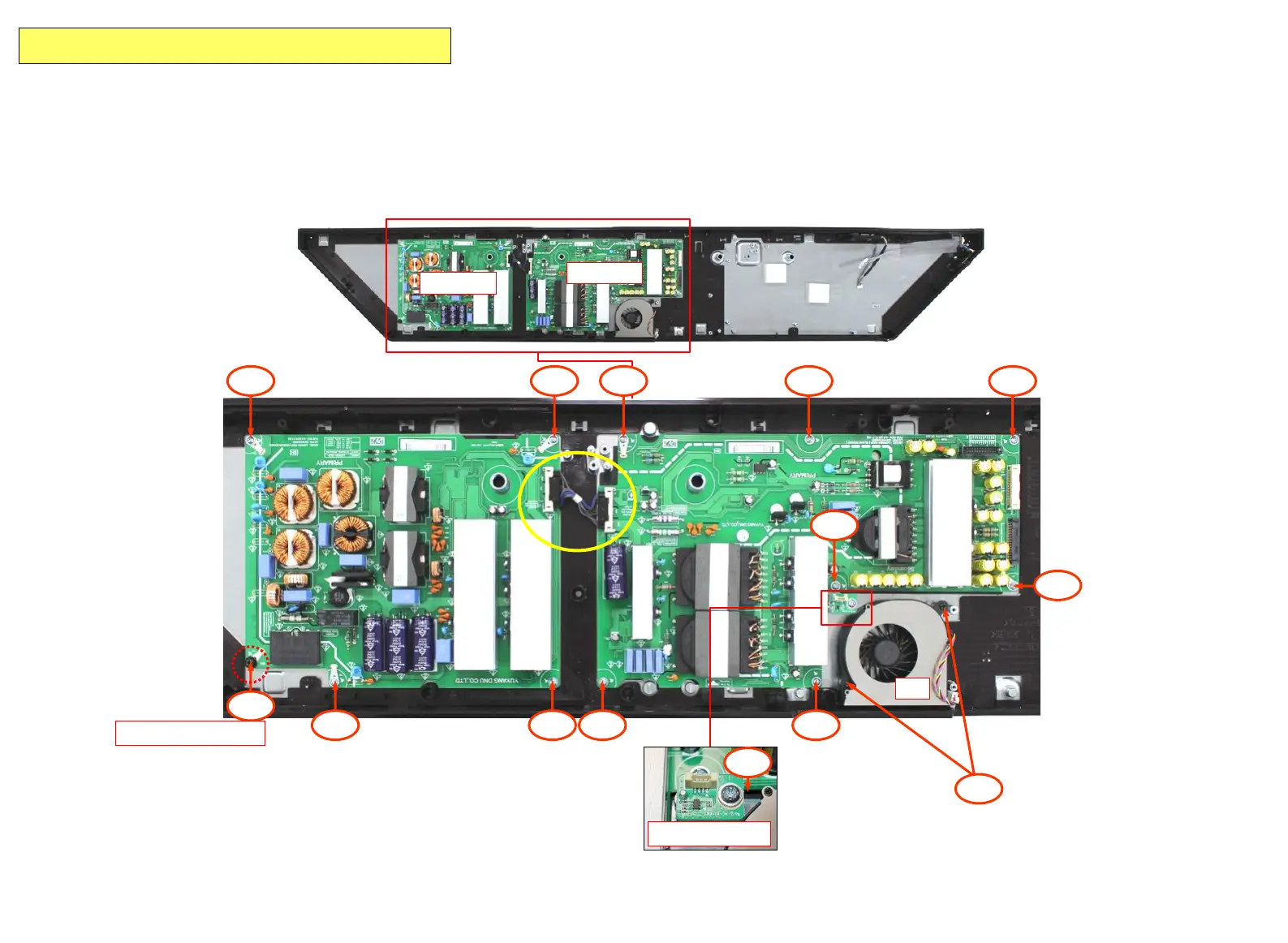

(2-1) Fasten the PSU Master Screw 5EA.
(2-2) Fasten the PSU Slave Screw 5EA and Connect PSU Slave Connector.
(2-3) Fasten the Thermal PCB Screw 1EA.
(2-4) Fasten the Fan Screw 2EA. (Screw Type Caution)
PSU Mater
PSU Slave
2-1 2-1
2-1 2-1
2-2 2-2 2-2
2-2 2-2
2-2
2-2
2-3
2-4
Thermal PCB
FAN
2-1
M4 Screw 1개소
OLED65G6 Re-assembly Guide
