LG OLED65G6P-U - Page 52

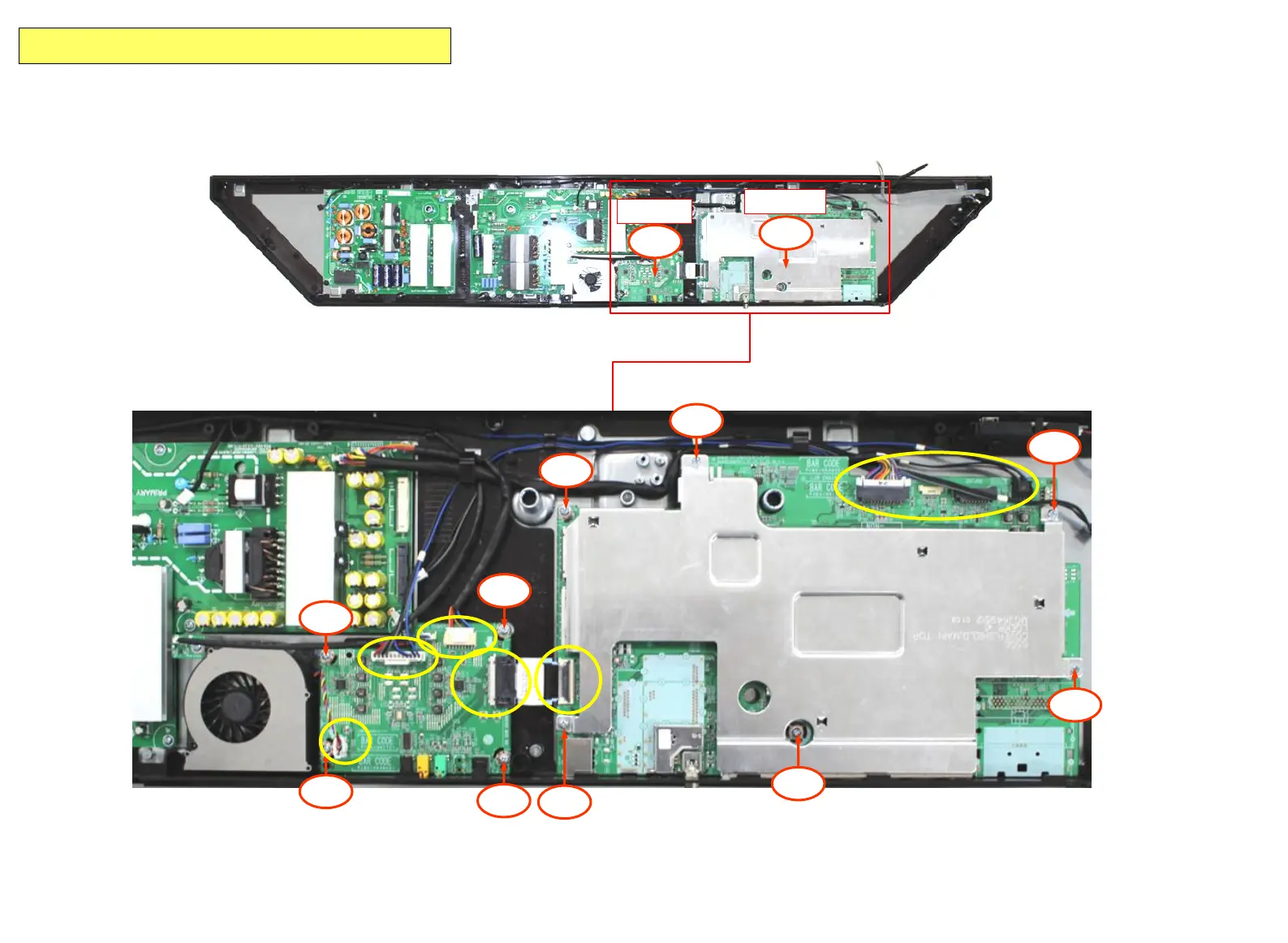

(4-1) Fasten the Main PCB Screw 6EA and Connect the indicated connectors.
(4-2) Put down Sub PCB and Fasten it with Screw 4EA, and then connect the connector.
4-2
Main PCB
4-1
Sub PCB
4-2
4-2
4-2
4-2
4-1
4-1
4-1
4-1
4-1
4-1
OLED65G6 Re-assembly Guide
