LG OLED65G6P-U - Page 57

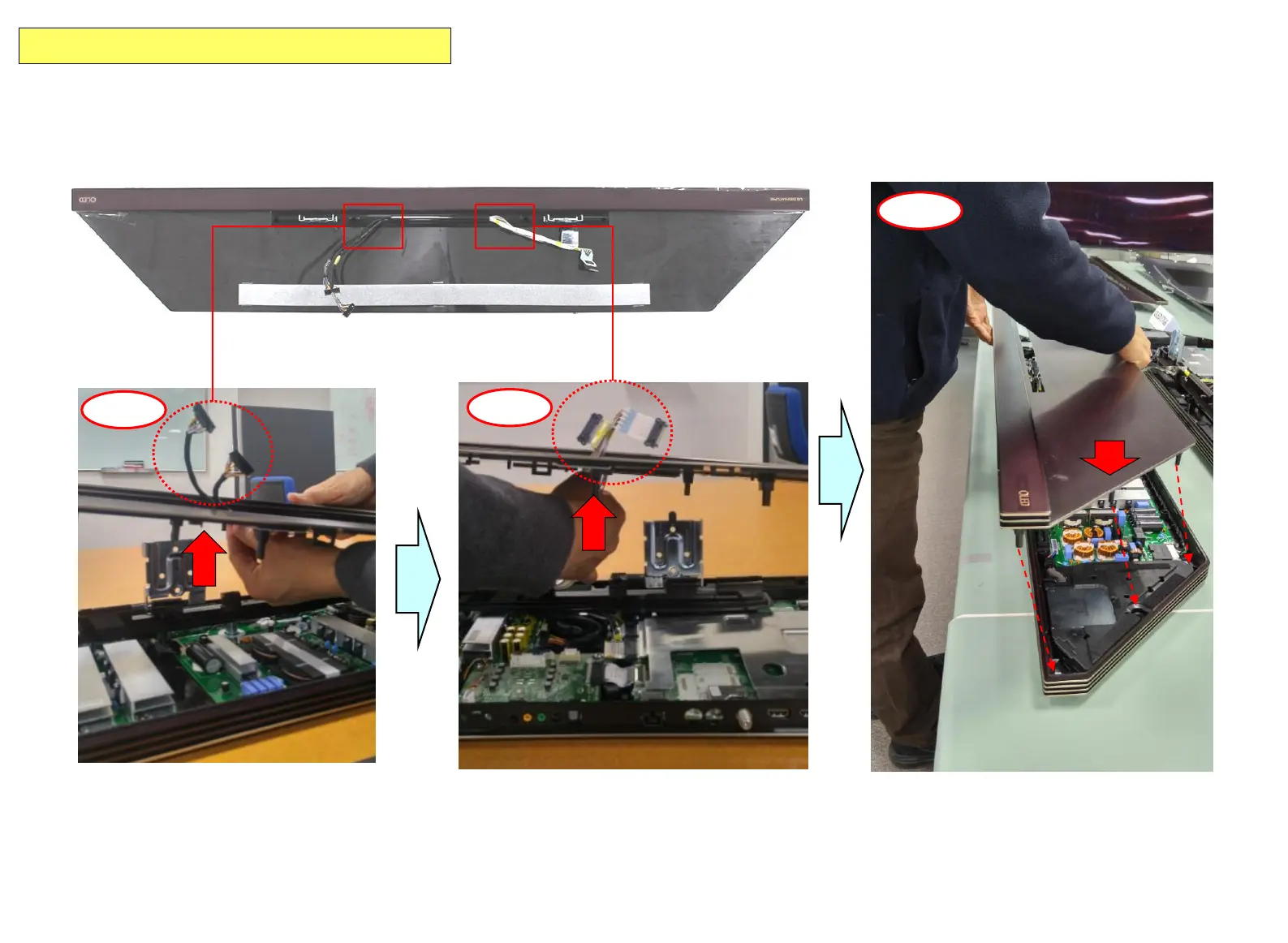

(9-1) Take out the power Cable 2EA from Bottom Box to upside passing the hole.
(9-2) Take out the VX1 Cable 2EA from Bottom Box to upside passing the hole.
(9-3) Arrange and assemble the Cover Ass’y, AV Box to Bottom Box.
9-1
9-2
9-3
OLED65G6 Re-assembly Guide
