9
Securing TV to the Wall
(Except for OLW480B)
• Please use the TV close to the wall after installation.
How to x anchors and screws
(Except for OLW480B)
Please make sure that:
• Check that the material and thickness of the wall and nishing
material comply with the installation manual.
• Use the enclosed anchors and screws on crack-free concrete walls.
• Never install the product on a wood stud, plasterboard or wall
made of paper or medium-density berboard (MDF). When it
is necessary to install the product on such wall, anchor screws
must be fastened to retaining walls (concrete) inside the nishing
material, and if there are no retaining walls, anchor screws must be
fastened after a separate hanger is installed.
• Other unspecied walls must be capable of supporting pullout
loads of over 70 kgf (686 N) and shear loads of over 100 kgf (980
N) per fastener.
• Use a Ø 8 mm drill bit and hammer (impact) drill for concrete.

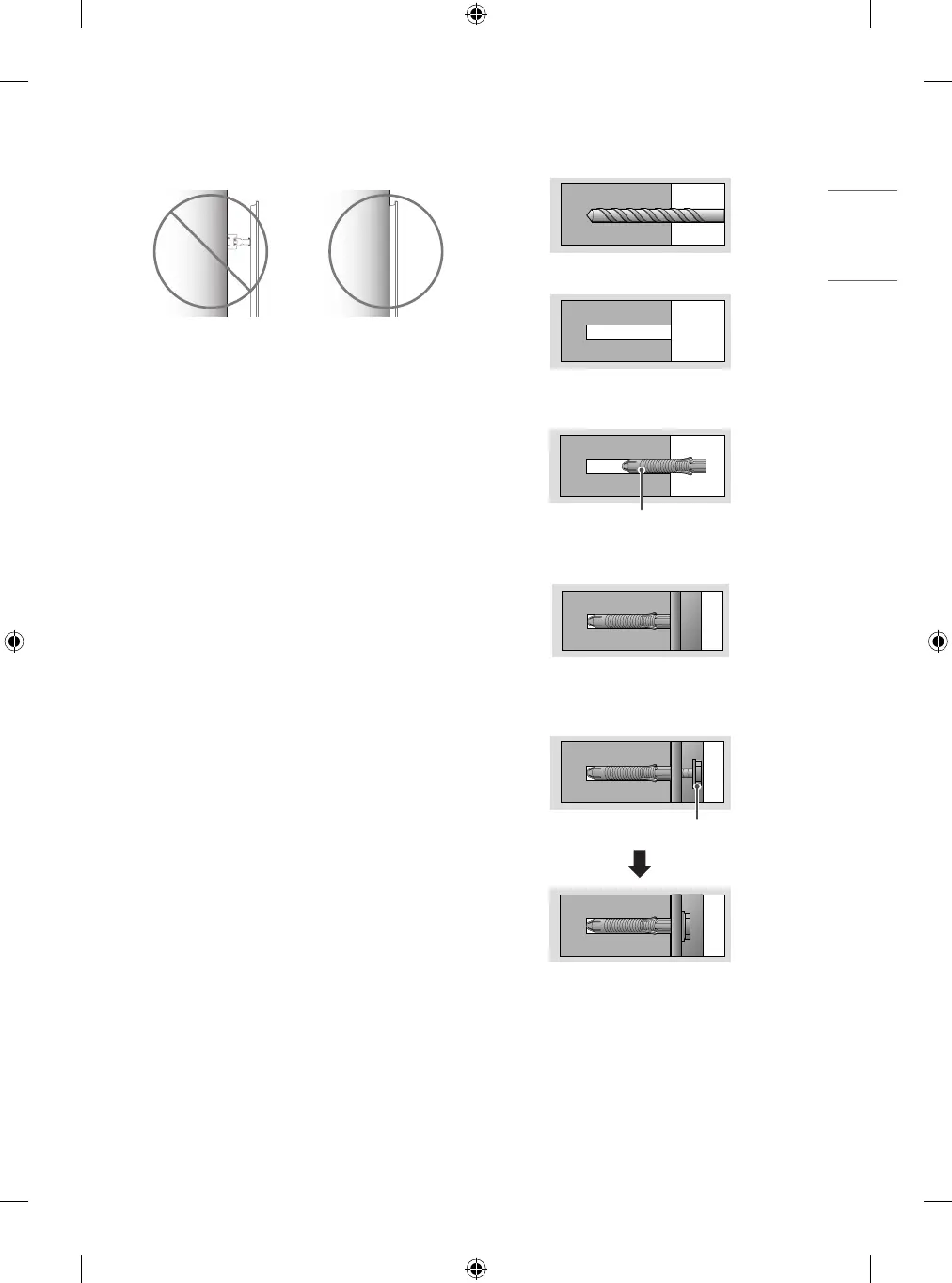

1 Drill holes in anchor locations with a drill bit of Ø 8 mm to a
depth of 80 mm to 100 mm.
2 Clean the drilled holes.
3 Insert the enclosed anchors for xing the wall mount into the
holes. (Use a hammer when inserting anchors.)
Wall mounting anchor
4 Push the wall mount support closely toward the wall to match
the hole locations.
5 Tighten screws for xing the wall mount to the holes. At this
time, tighten the screws to a torque of between 45 kgf/cm to
60 kgf/cm.
Wall mounting screw
To Next Page
