- 17 -
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

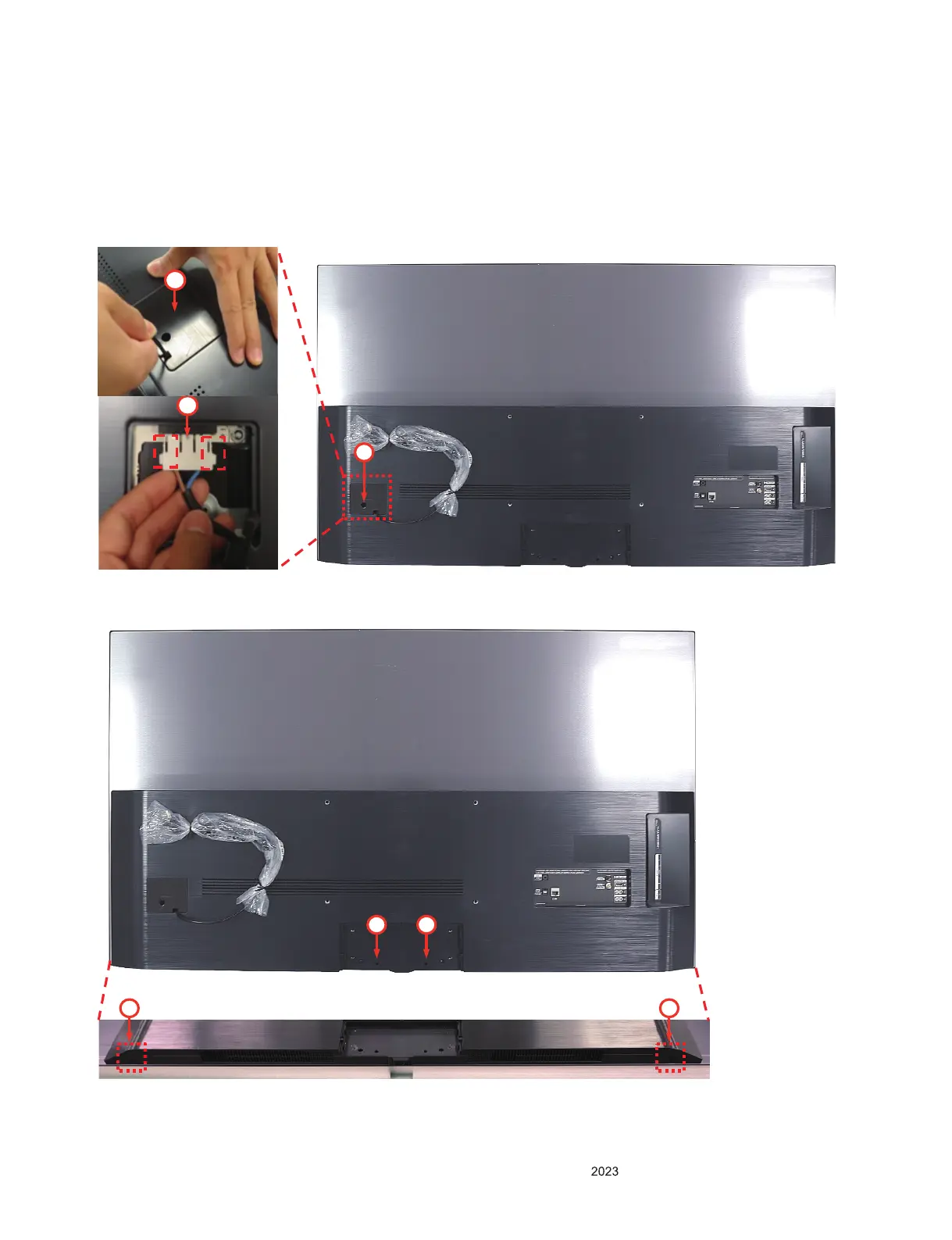

[Disassembly Guide]
1. Unlock “1” screw to separate Power cord bracket using screw driver, And remove the
“2” bracket by pressing the side of the power cord bracket, pulling the power cord line
upwards, and then pressing the side of the “3” code to remove the power cord.
2. Unlock “4” screw to Back cover using screw driver.
ASSEMBLY / DISASSEMBLY GUIDE
3
1
2
44
4 4
To Next Page
