[Back Cover Assembly Guide]

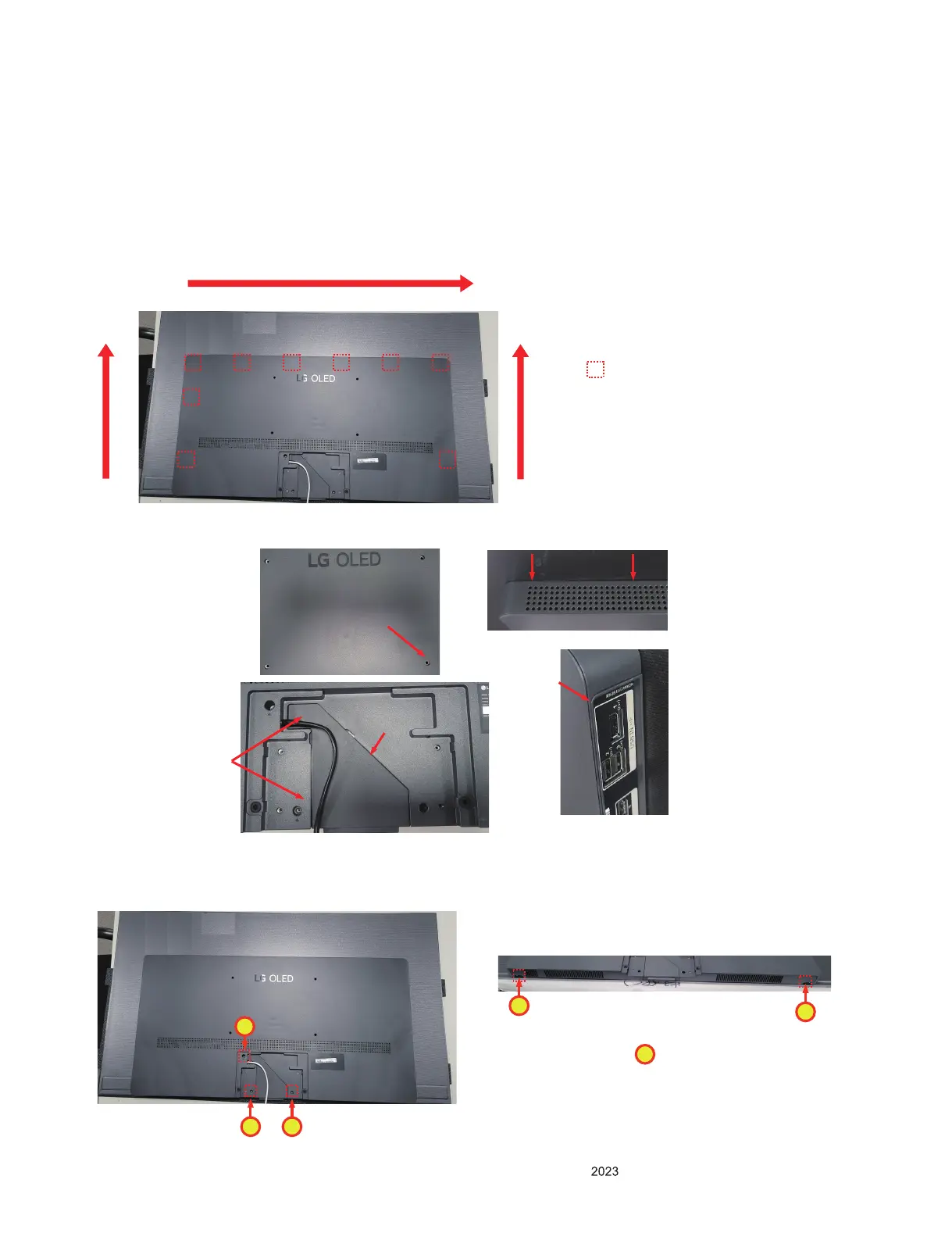

1. After placing B/C on the module, assemble it by pressing the latch position.

2. Check the upper/left/right side gaps to see if the latch is properly assembled.

→ When the latch is assembled, a clicking sound is heard.

And if the latch is not assembled, the back cover is opened and is easily recognized.

→ When assembling, be careful not to get the Power Cord caught in the B/C.

3. Assemble B/C Screw.

Screw : 5ea

Assemble the back cover to protrude

Step

Hole postion Gap

Caution, Power

Cord Jammed

Latch : 9ea
