EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.

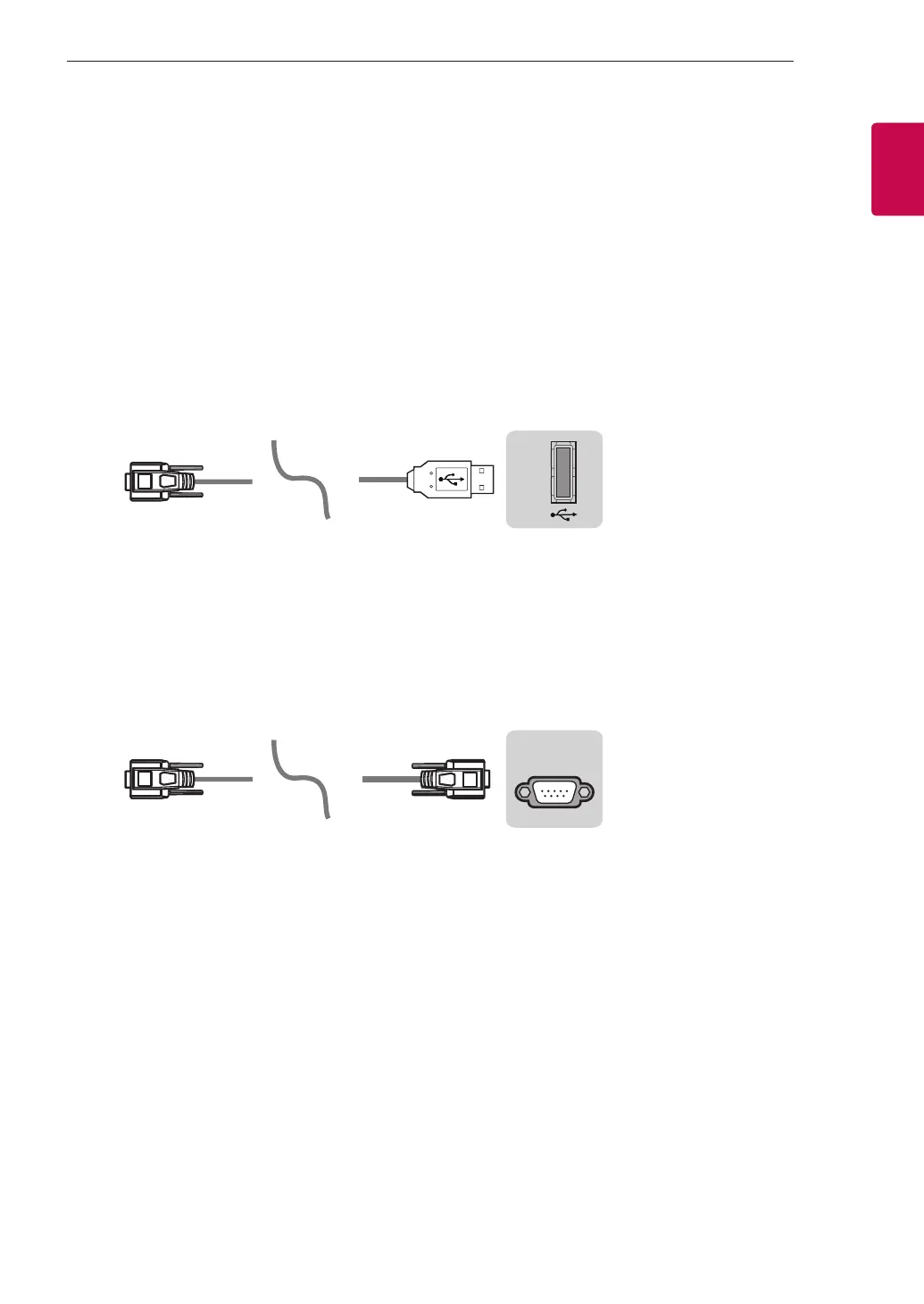

Connect the USB to Serial(RS-232C) converter/RS-232C(Serial) input jack to an external control device
(such as a computer or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial(RS-232C) converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC
)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C)
converter which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C(Serial) With RS-232C(Serial) Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C(Serial) cable
required for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC
)
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
The connection interface may differ from your TV.

LG OLED77C3PUA Specifications

General

Screen shape	Flat
Response time	0.1 ms
Display diagonal	77 \
Display brightness	- cd/m²
Display technology	OLED
Native aspect ratio	16:9
Native refresh rate	120 Hz
Contrast ratio (typical)	-
Motion interpolation technology	OLED Motion
Voice control	Yes
Google applications	Google Home
Annual energy consumption	258 kWh
Package type	Box
Package depth	228 mm
Package width	1939 mm
Package height	1130 mm
Package weight	38800 g
Music apps	Spotify, iHeartRadio
Video apps	Amazon Prime Video, Apple TV, Disney+, HBO Max, Hulu, Netflix, Paramount+, Peacock, Youtube TV
Sports apps	Sports Alerts
Operating system version	webOS 23
Operating system installed	Web OS
PC in (D-Sub)	No
Headphone outputs	0
RF ports quantity	1
HDMI ports quantity	4
USB 2.0 ports quantity	3
Consumer Electronics Control (CEC)	SimpLink
Game features	Auto Low Latency Mode (ALLM), Game Optimizer, HGiG, NVIDIA GeForce Now, Utomik, Variable Refresh Rate (VRR)
AMD FreeSync type	FreeSync Premium
Audio formats supported	AAC, AC3, EAC3, HE-AAC, MP2, MP3, PCM, WMA, apt-X
Picture processing technology	LG AI Picture Pro
High Dynamic Range (HDR) technology	Dolby Vision, Filmmaker Mode, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Sound modes	AI Sound Pro, Clear Voice Pro
Audio decoders	DTS, Dolby Atmos, Dolby Digital AC3, Dolby Digital AC4
RMS rated power	40 W
Audio output channels	2.2 channels
AC input voltage	120 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Cables included	AC
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Color name	Dark Titan Silver
Product color	Silver
Panel mounting interface	300 x 200 mm
Tuner type	Digital
Digital signal format system	ATSC, QAM
Processor	α9 AI Processor Gen6

Weight and Dimensions

Stand width	520 mm
Depth (with stand)	267 mm
Width (with stand)	1711 mm
Height (with stand)	1035 mm
Weight (with stand)	27100 g
Depth (without stand)	47.1 mm
Height (without stand)	982 mm
Weight (without stand)	23500 g
