15-1
Main PCB
15-2
Sub PCB
15-1
15-1
15-1
15-1
15-2
15-2
15-2
15-2
15-2
15-2

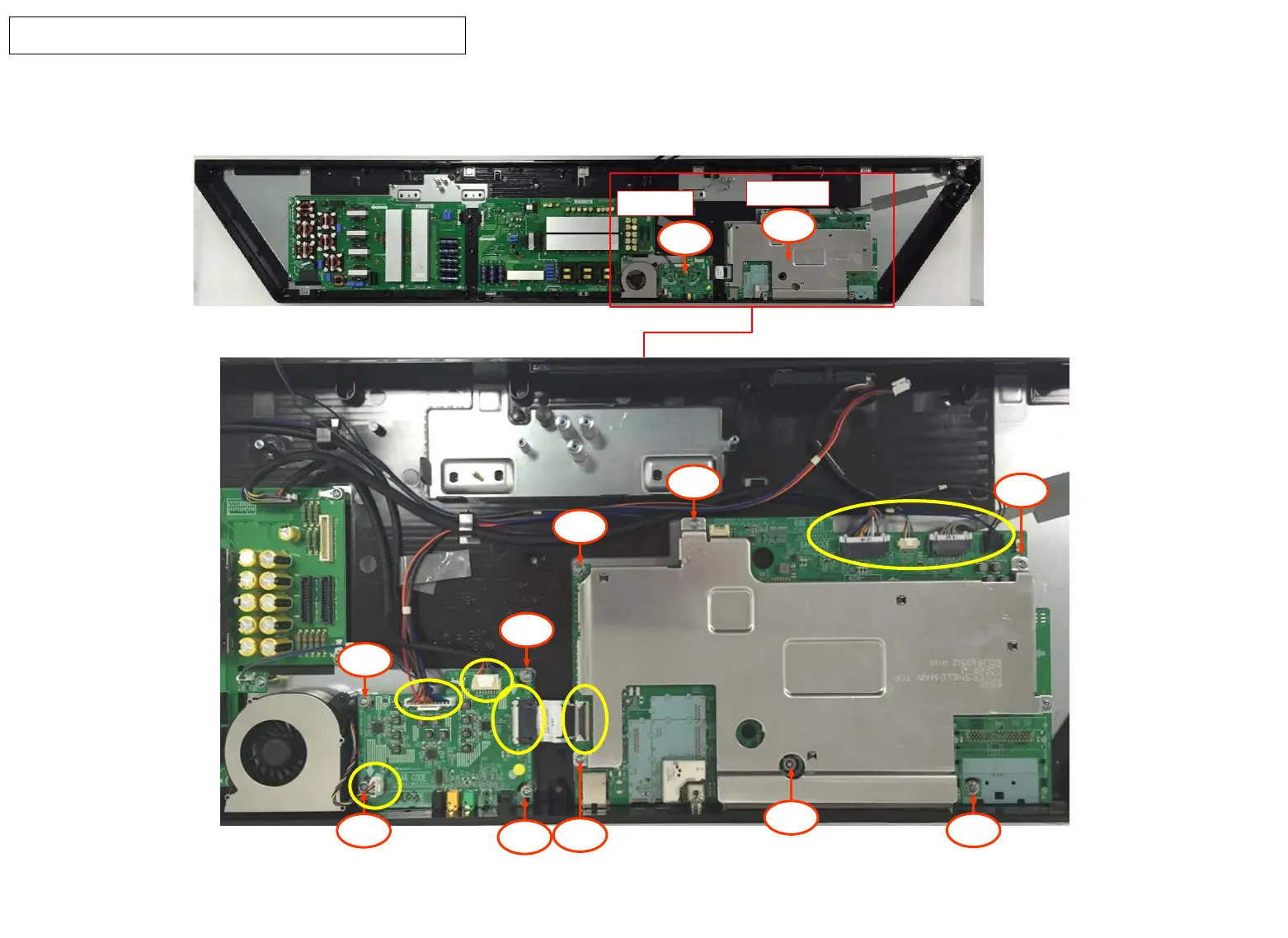

OLED77G6 Disassembly Guide
(15-1) Unfasten the Screw 4EA from [Sub PCB] and Disconnect indicated connectors.
(15-2) Unfasten the Screw 6EA from [Main PCB] and Disconnect indicated connectors.
