LG OLED77G6P - Page 59

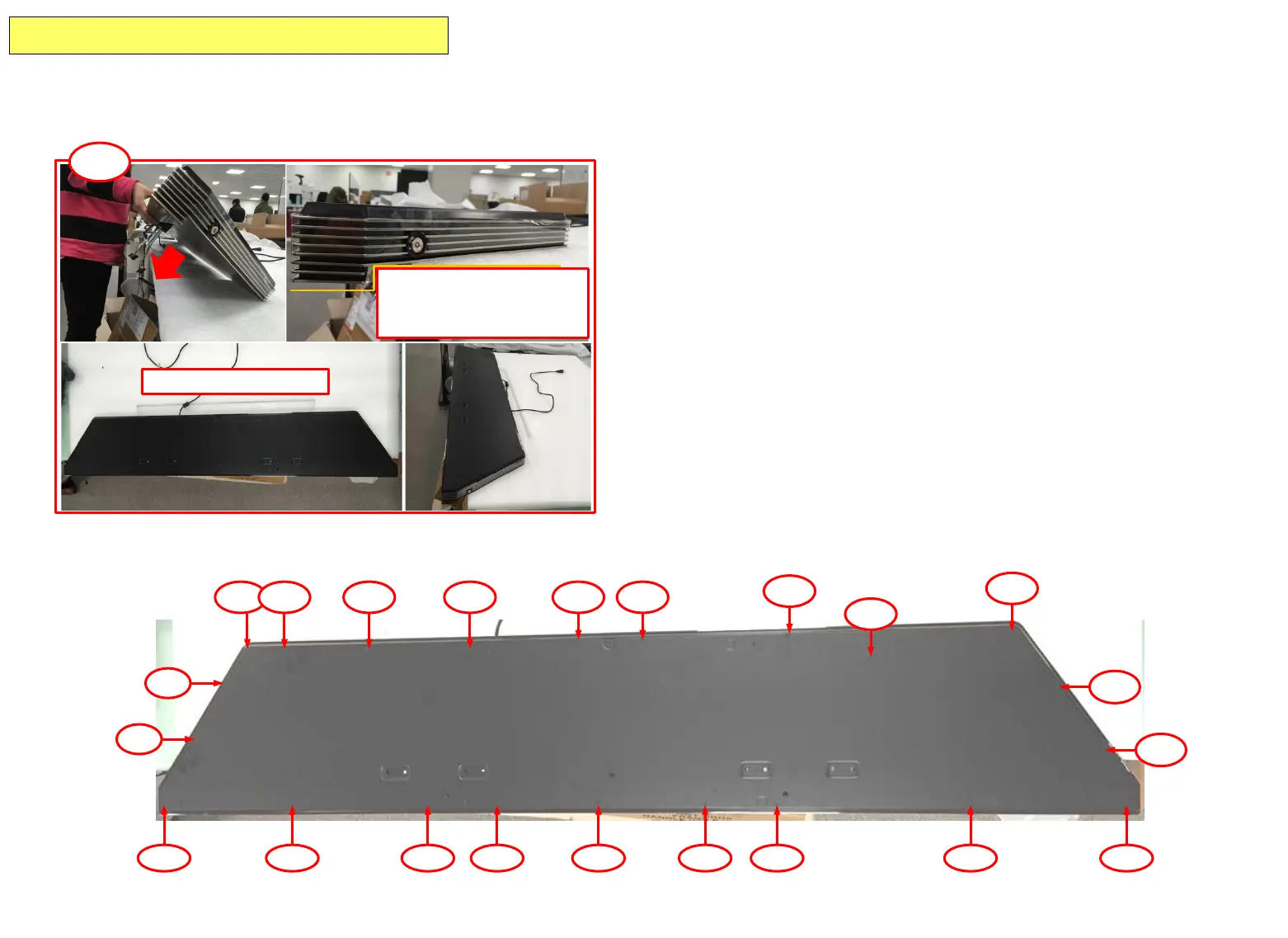

(11-1) Turn and put down the [AV BOX] like below pictures. Before that, cover the table with a cotton sheet or something like that.
(11-2) To be assembled tightly, Fasten the Screw 22EA holding rear side by the other hand.
※
When you fasten the screws, keep torque between 3~4kgf. If you can’t control at that time, use hand driver.
11-2
11-2
11-2 11-2 11-2 11-2
11-2
11-2
11-2
11-2
11-2
11-2
11-2 11-2 11-2 11-2 11-2 11-2 11-2 11-2
11-2
11-2
11-1
Table
OLED77G6 Re-assembly Guide
Cotton sheet or Pad
