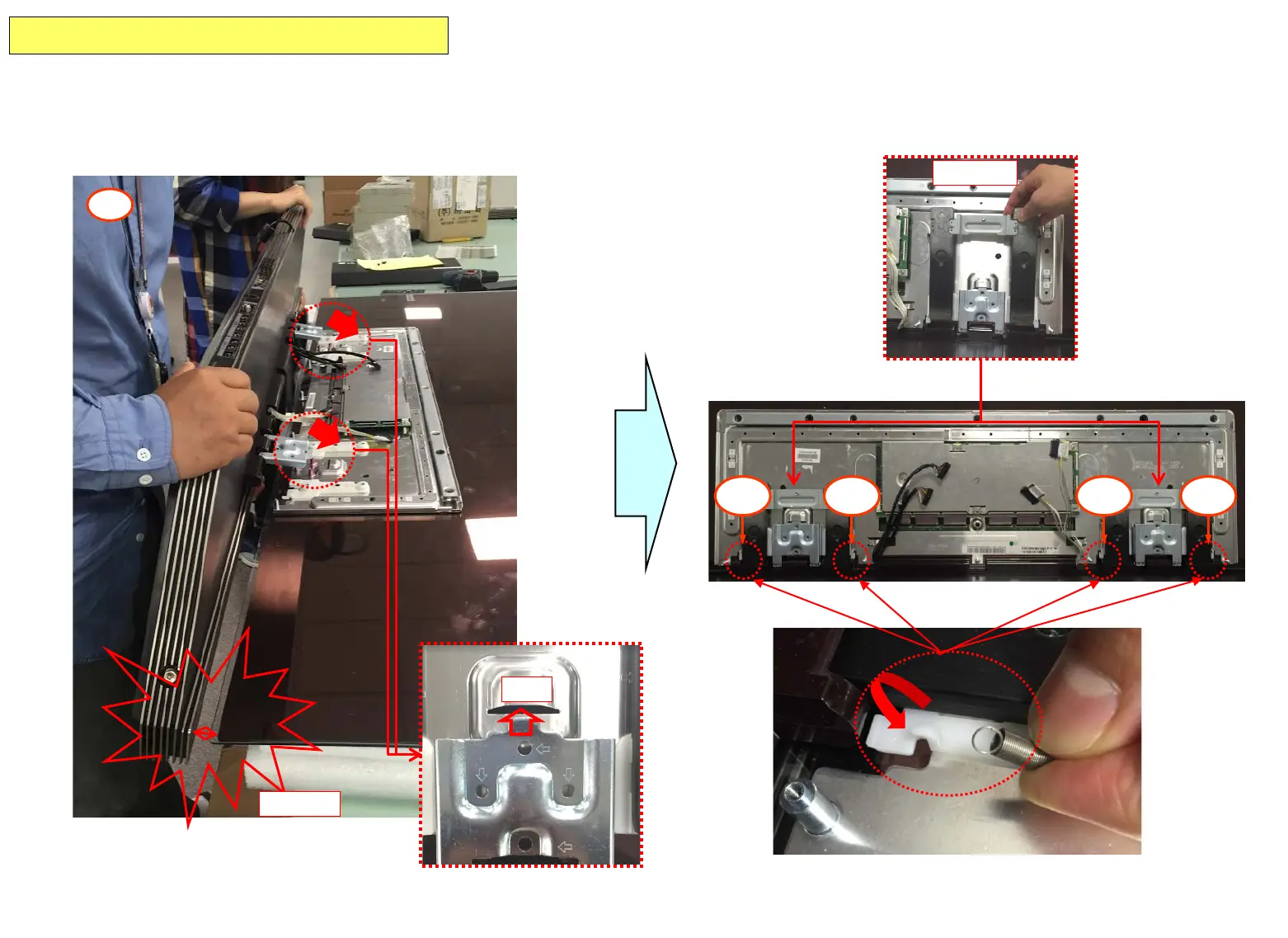

(12-1) Lift up carefully [AV Box] like below picture and Insert the Temporary-Fixing structure of [Hinge Assy] to [T-Con Plate].
At this time, be careful the crash between [AV Box] and [Glass]. (This process should be worked by two workers.)
(12-2) Hook the 4EA Springs from Locking Bracket Ass’y to Rail Guide bracket (White color).
OLED77G6 Re-assembly Guide
Caution!
12-1
Insert
12-2 12-2 12-2 12-2
Landing
