ASSEMBLY / DISASSEMBLY GUIDE

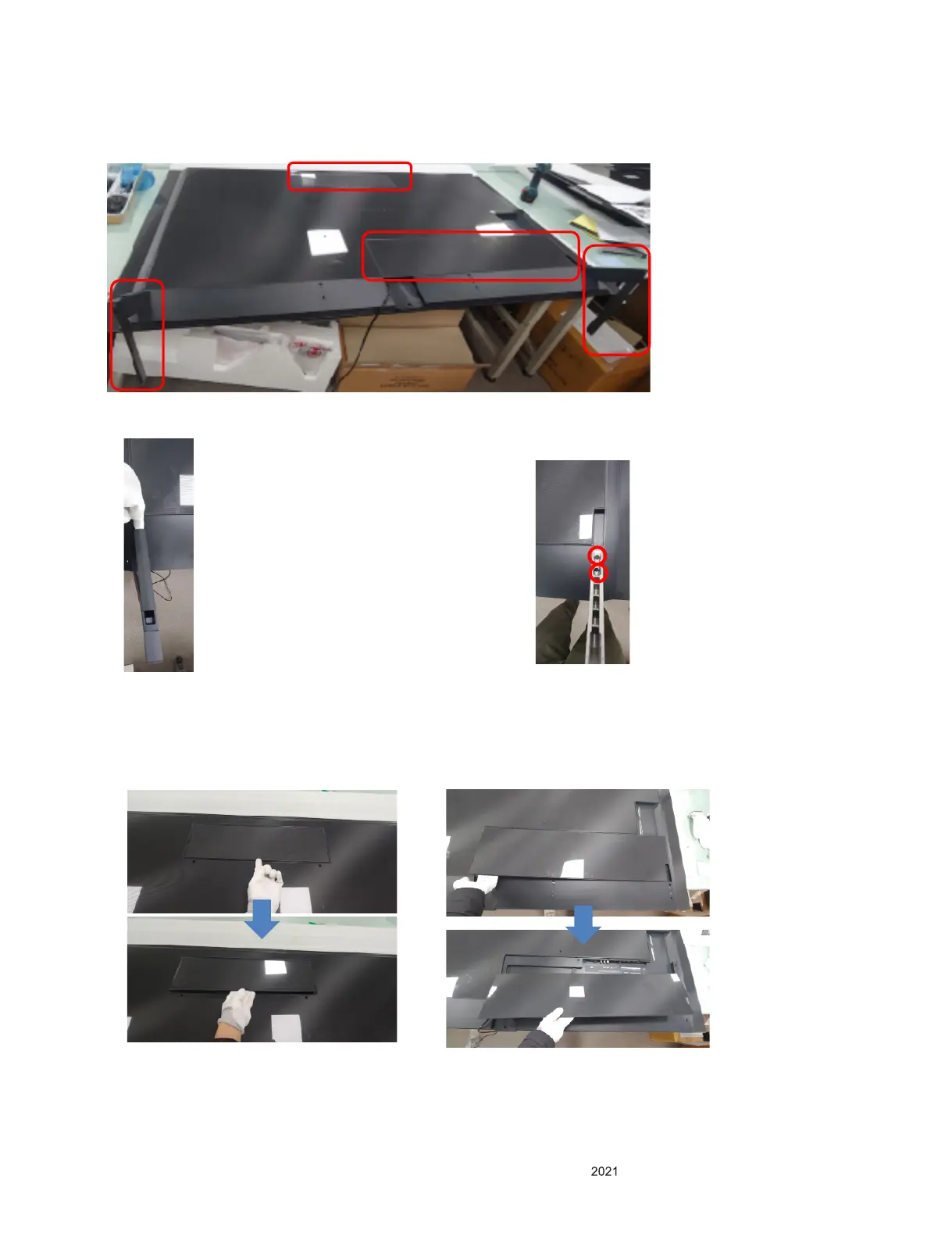

1. Back Cover Disassembling Guide
(3) Remove a AV Cover / Wall Mount Cover.
(1) Remove the Stand Cover 2 EA. (2) stand screw 4 EA(2-Pole 2 EA + 2 EA)
after Place on a flat pad.
(1)/(2)
(1)/(2)
(3)
(3)
AV Cover
Wall Mount Cover
To Next Page
