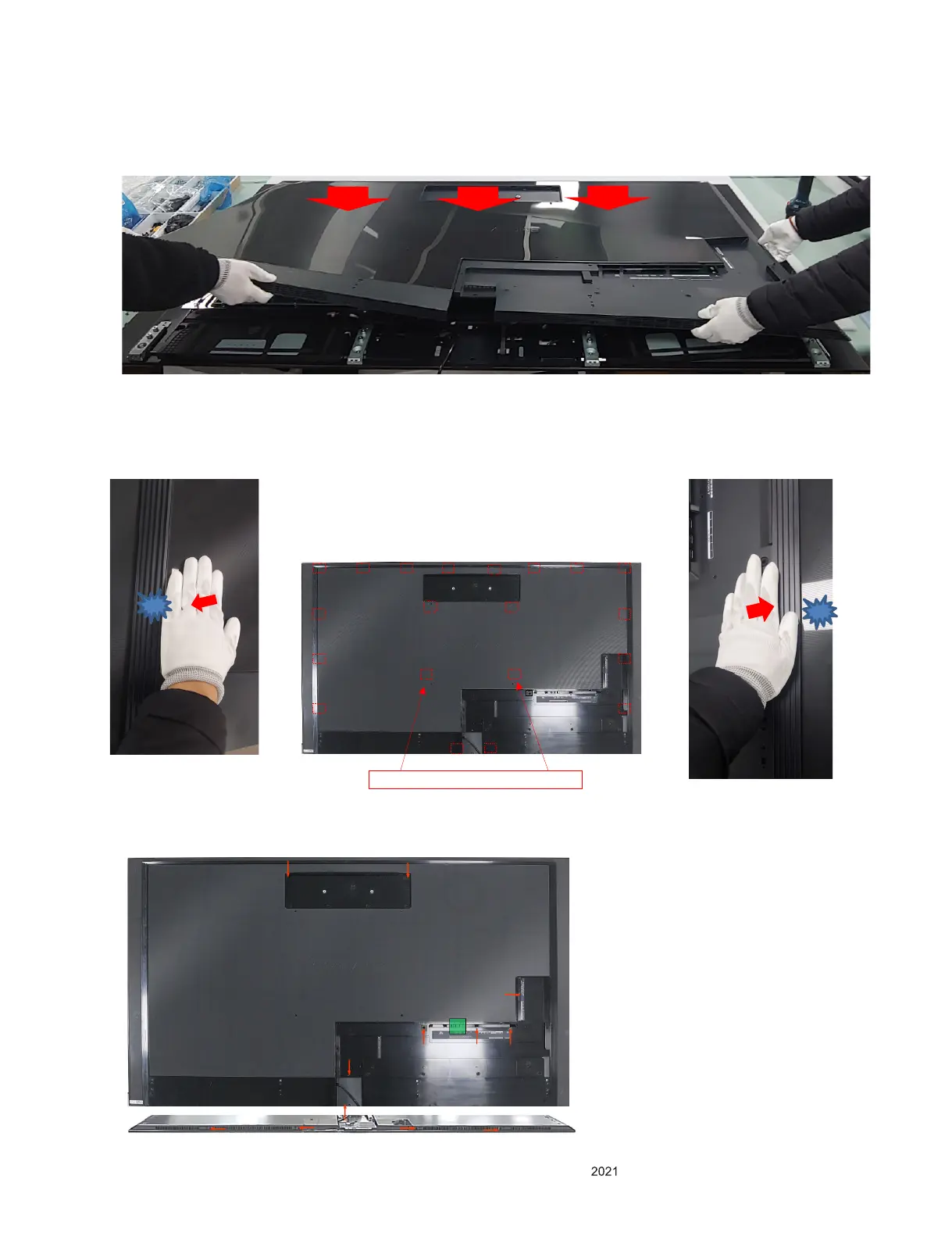

2. Back Cover assembling Guide
(1) Place the Back Cover on SET.
(4) Tighten the Screw 12 EA(Back side 8 EA + bottom side 4 EA)
(2) Push the back cover’s left side with
one-hand(Close the latch 10 EA(left)
from down to up direction).
(3) Push the back cover’s left side with
one-hand(Close the latch 10 EA(right)
from down to up direction).
OLED77ZX Latch 20 Point
Click
Click
(Push about 50mm above the hole.)
