Pin Pin name
1 LED_R_JACK
2 GND
3 IR_JACK
4 +3.5V_ST
5 GND
6 N.C.
7 EYE_SCL_JACK
8 KEY2_JACK
9 EYE_SDA_JACK
10 WOV_PDM0_DATAIN_JACK
11 KEY1_JACK
12 WOV_PDM_CLKOUT_JACK
13 +3.5V_WIFI
14 GND
15 COMBO_RESET_JACK
16 BT_WAKEUP_HOST_JACK
17 WOL/WIFI_POWER_ON_JACK
18 GND
19 +3.5V_WIFI
20 WIFI_DP_JACK
21
WIFI_SUSPEND/
RESUME_JACK
22 WIFI_DM_JACK
23 GND
24 +3.5V_WIFI
25 F20_PWM_IN[4]
26 GND
27 F20_PWM_OUT[2]
28 +13V_FAN

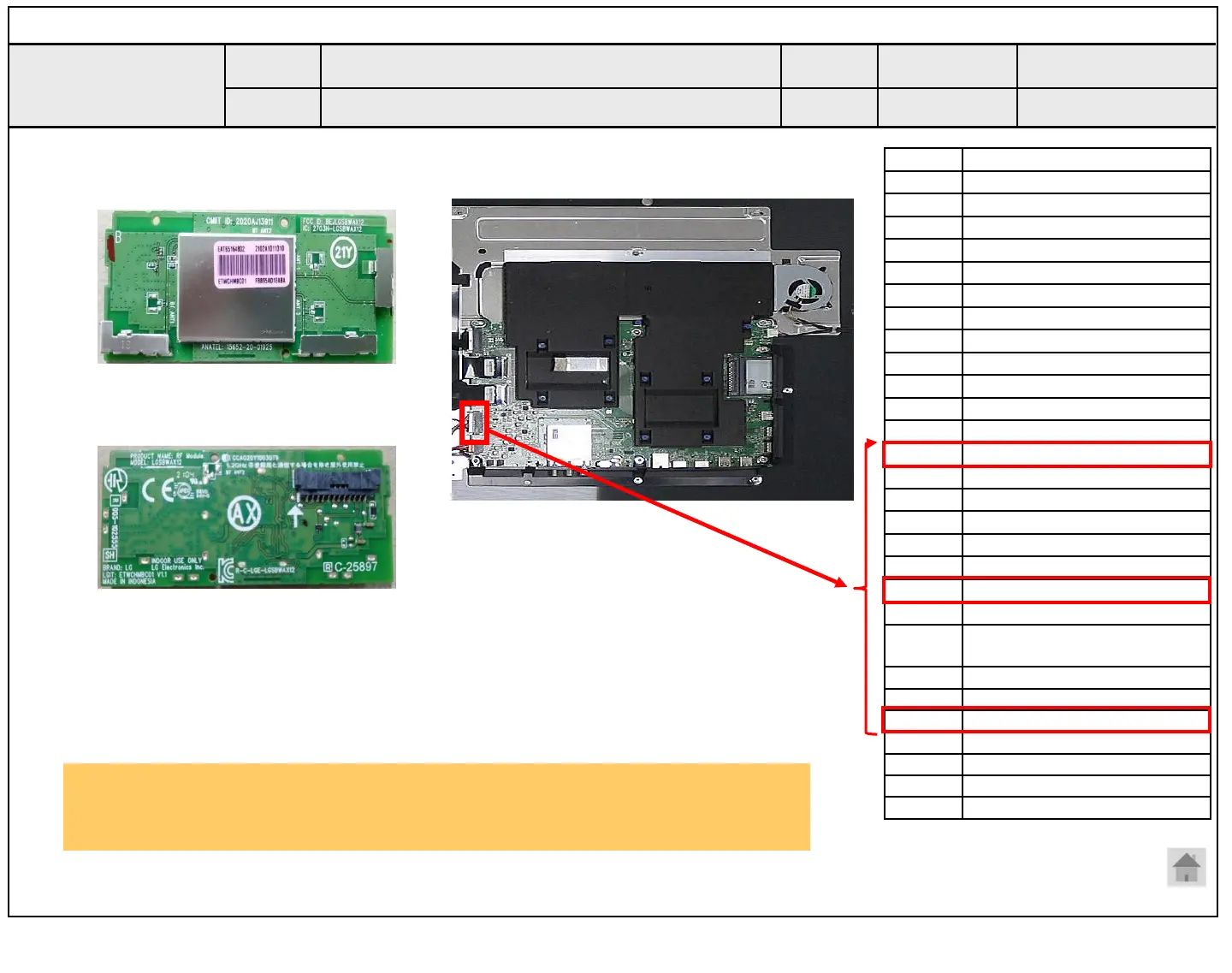

Standard Repair Process Detail Technical Manual
WiFi/Motion Remote operation checking method
D. Function error
Established
date
Revised
date
Error
symptom
Content
A14
②
Checking order
1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the 3.5V_WIFI on the terminal 13, 19, 24 Pin
Checking order to check motion remote/wifi
A14
① Wifi & BT Front
① Wifi & BT Rear
To Next Page
