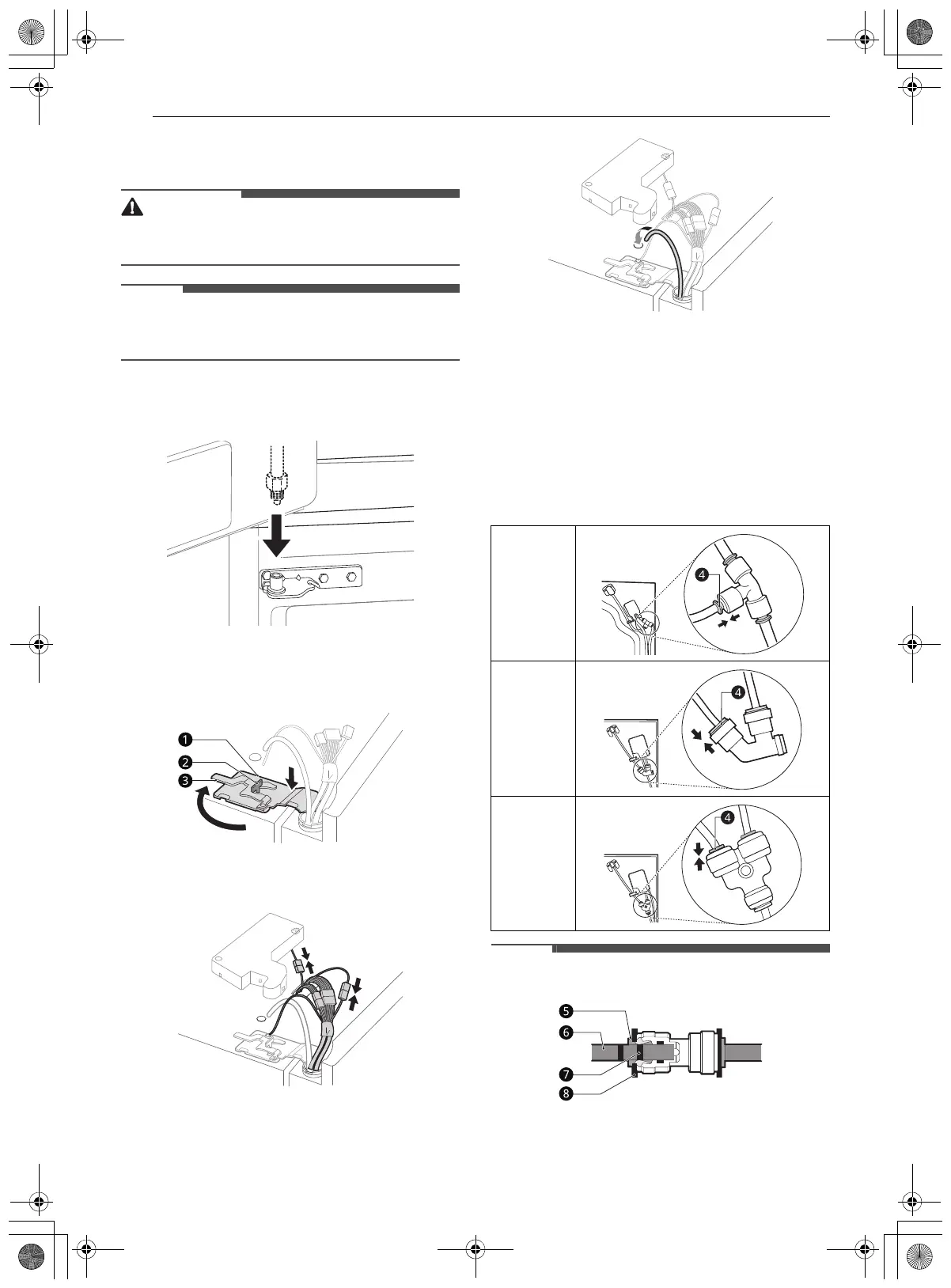

20 INSTALLATION
Assembling the Left Refrigerator
Door
• Install the left refrigerator door after the right
door is installed.
• The number of wire harnesses may vary
depending on the model.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Install the refrigerator
door onto the middle hinge.
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever c
clockwise and fasten the hinge.
3 Connect all the wire harnesses and the
ground screw.
4 Push the water supply tube into the hole on
the top case and pull it through the backplate.
5 Hold the water supply connection and gently
push in the collet d to connect the water
supply line as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tube in place.
• Connections may vary by model.
† This feature is only available on some
models.
• Disassembling/Assembling the Water Lines
e Collet f Tube g Insert line h Clip
Type A
†
Type B
†
Type C
†
