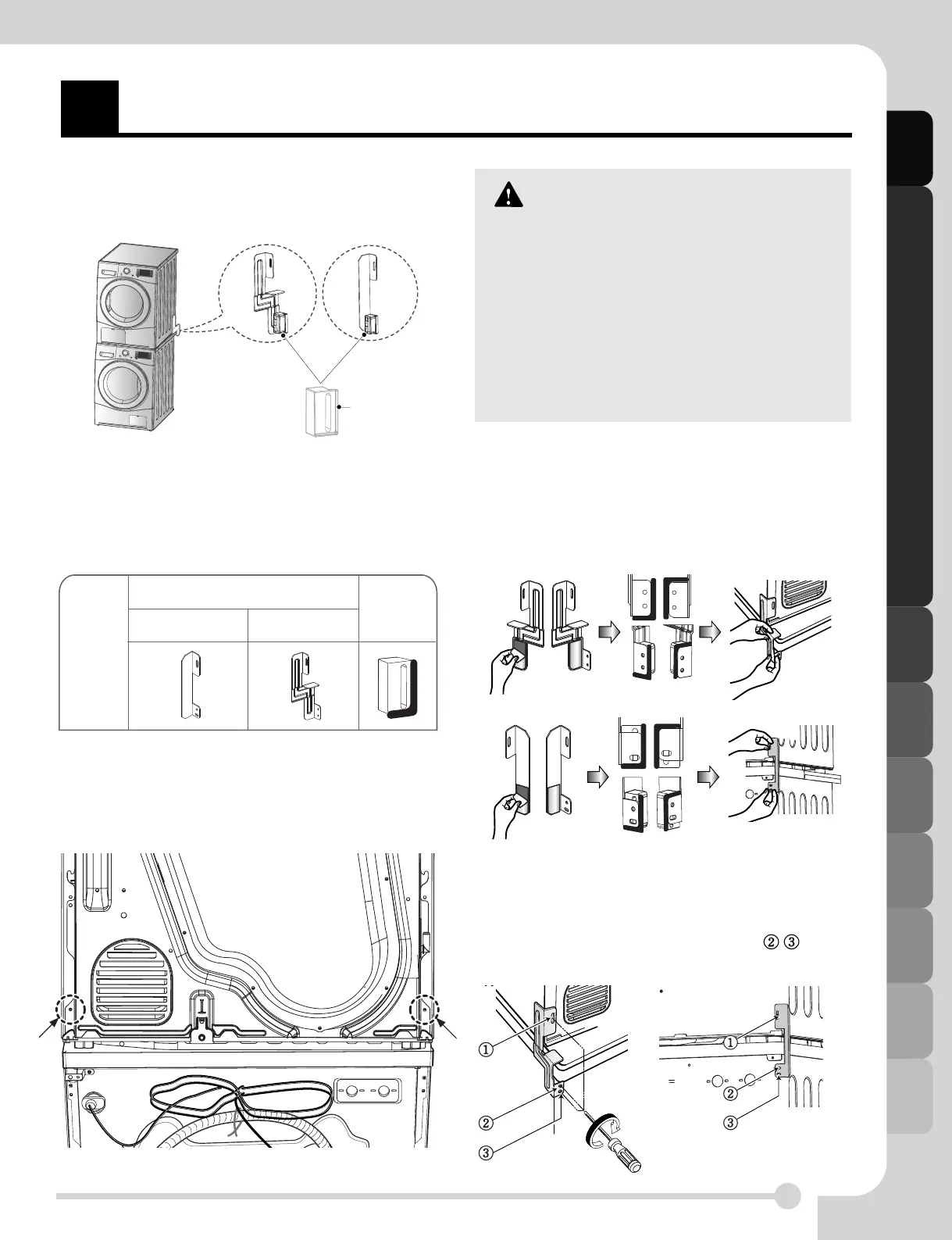

Installation Instructions
7
I
nstallation Instructions
Stacking Kit
In order to stack this dryer an LG stacking kit is
required.
This dryer may only be stacked on top of an LG wash-
er. DO NOT attempt to stack this dryer on any other
washer, as damage, injury or property damage could
result.
To stack this dryer, the support holder included with
the stacking kit must be used.
Installation Procedure
1. Place the LG dryer on the LG Washing machine.
2. Remove the two screws from the bottom of the
rear cover on each side as illustrated below.
3. Assemble the stacking kit as following.
•
Peel the protective film from the double-sided tape on
the bracket for your size washer.
•
Attach the support holder.
•
Align the stacking kit holes and the rear cover holes
and then firmly attach the bracket to the side of the
washer in that position.
23.6 inch(600 mm)
21.7 inch(550 mm)
4. Assemble the stacking kit as follows
• Screw the 2 screws that were removed earlier
into the washer, dryer and stacking kit
• Use accessory screws
[1.2inch (30mm)]
to assem-
ble washer rear cover and stacking kit. ,
• The procedure for the opposite side will be the
same.
WARNING
• Incorrect installation can cause serious acci-
dents.
• The weight of the dryer and the height of instal-
lation makes the stacking procedure too risky
for one person. This procedure should be per-
formed by 2 or more experienced service per-
sonnel.
• The dryer is not suitable for a built-in installa-
tion. Please do not install as a built-in.
• Do not operate if the dryer is disassembled.
Shape
21.7 inch
(550mm)
Washer Top plate size
23.6 inch
(600mm)
Support
Holder
Dryer
Washer
Support Holder
To Next Page
