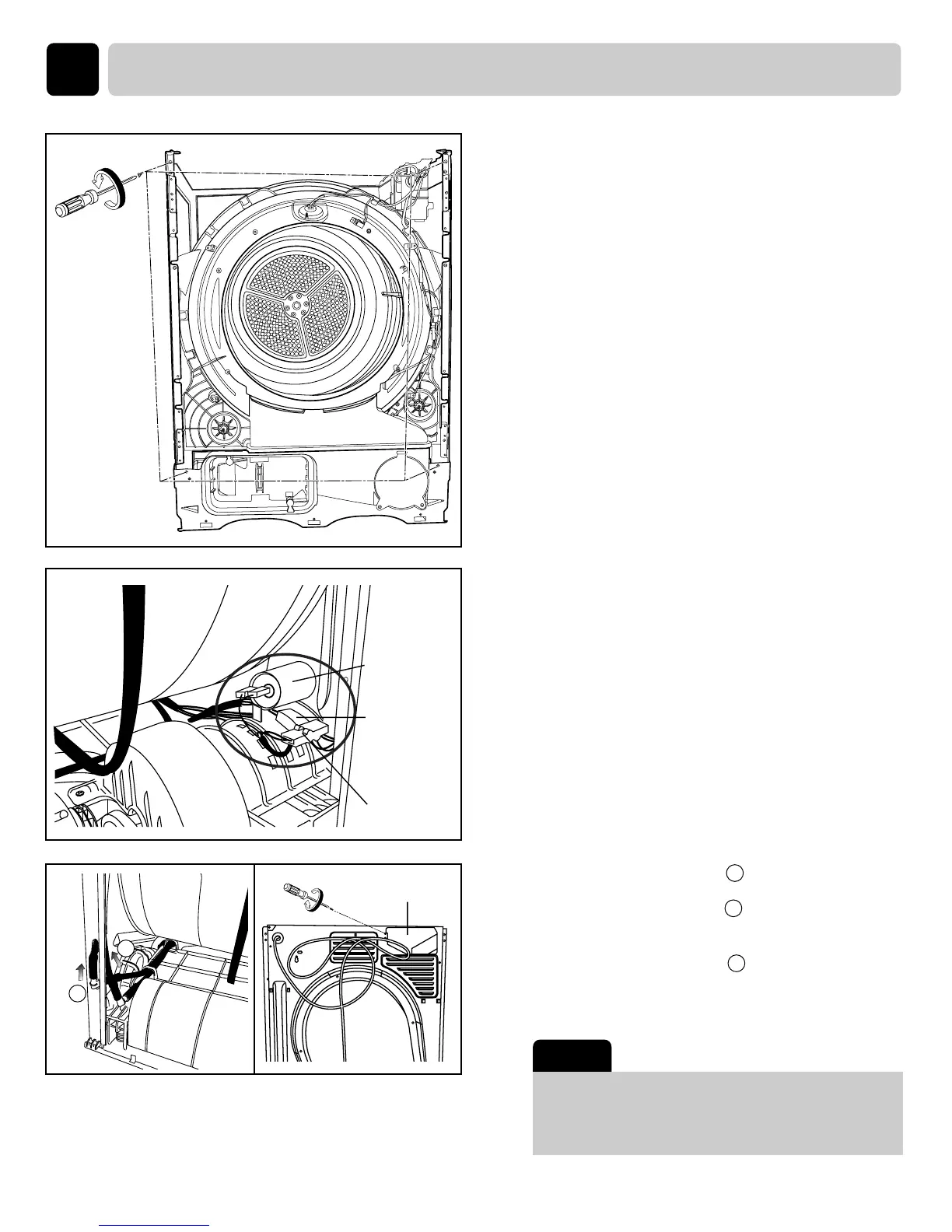

DIASSEMBLY INSTRUCTIONS
12
31
Note
If the hose is assembled unsuitable
“empty water” error message will be
indicated on the LED or LCD display.
11. Disassemble the housing of motor,
heater, pump and capacitor.
12-1. Disassemble the hose.
12-2. Disassemble the Holder from
cover, rear.
12-3. Disassemble the hose.
12-4. Releasing the dispenser by
unscrewing 1 screw.
10. Disassembling the side frame by releasing
4 screws
1
2
3
2
CAPACITOR
PUMP
HOUSING
MOTOR
HOUSING
DISPENSER
3
To Next Page
