ONE POINT REPAIR GUIDE
NO BOOTING IN USB FUNCTION
After you turn on power key and displayed message in the following order (HELLO  VOL XX  USB)
on VFD, it will not display other message on VFD, and it will not boot-up normally.
4-2. CRYSTAL (X500)
4-2-1. Solution
Replace MAIN board.
4-2-2. How to troubleshoot (Countermeasure)
1) If 3.3 V & 1.2 V is normal, check reset ‘High’ of IC501 pin T12 on MAIN board.
 If CHIP_RESET isn’t high, check the IC505.
2) If CHIP_RESET is high, check the soldering status of 24 MHz crystal (X500).
3) If the crystal(X500) doesn’t oscillate, check R5B4, R5B6, C5B2, C5B5 around crystal(X500).
 If there’s no defective component, then replace X500.
4-2-3. Service hint (Any picture / Remark)
S
35791
2468
11 13 17
10 12 14 16
15
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
F
T_TX
R5B4
R5B5
R5B6
5B7 5B8
RA501
RA502
RA503
RA504
C5B2
C5B4
C5B5
ZD501
C5E2
C5E3
ZD505
ZD506
SF_CS
FL500
C5B11 C5B14
C5B18
C5B23
C5B24
R508
C5B34
15
R5D10
21
2
SF_MI
S
C5B60
45
X500
X501
R5B51
R5B53
R5B1
R5B56
R5B102
R5B104
R5B106
R5B107
R5B60
R5B61
R5B64
R5B65
R
5B69
R
5B70
R5B72
R5B73
R5B74R5B75
R5B94
RX
R5B95
R5B98
R5B
9
R596
IC501
XX
X
I
I
X
X
O
O
X500

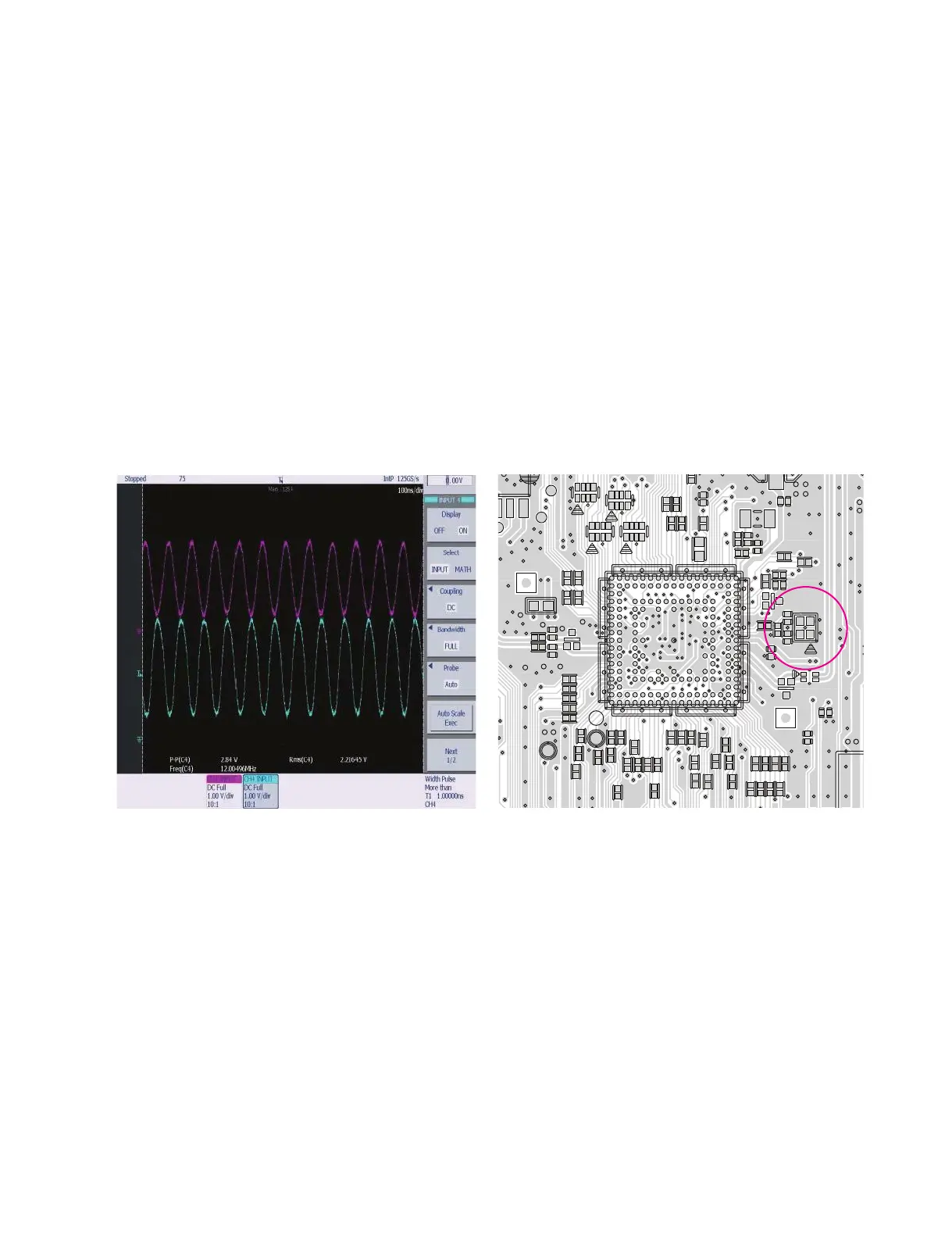

< Signal waveform >
< MAIN board top view >
IC501
IC501
X500
X500
