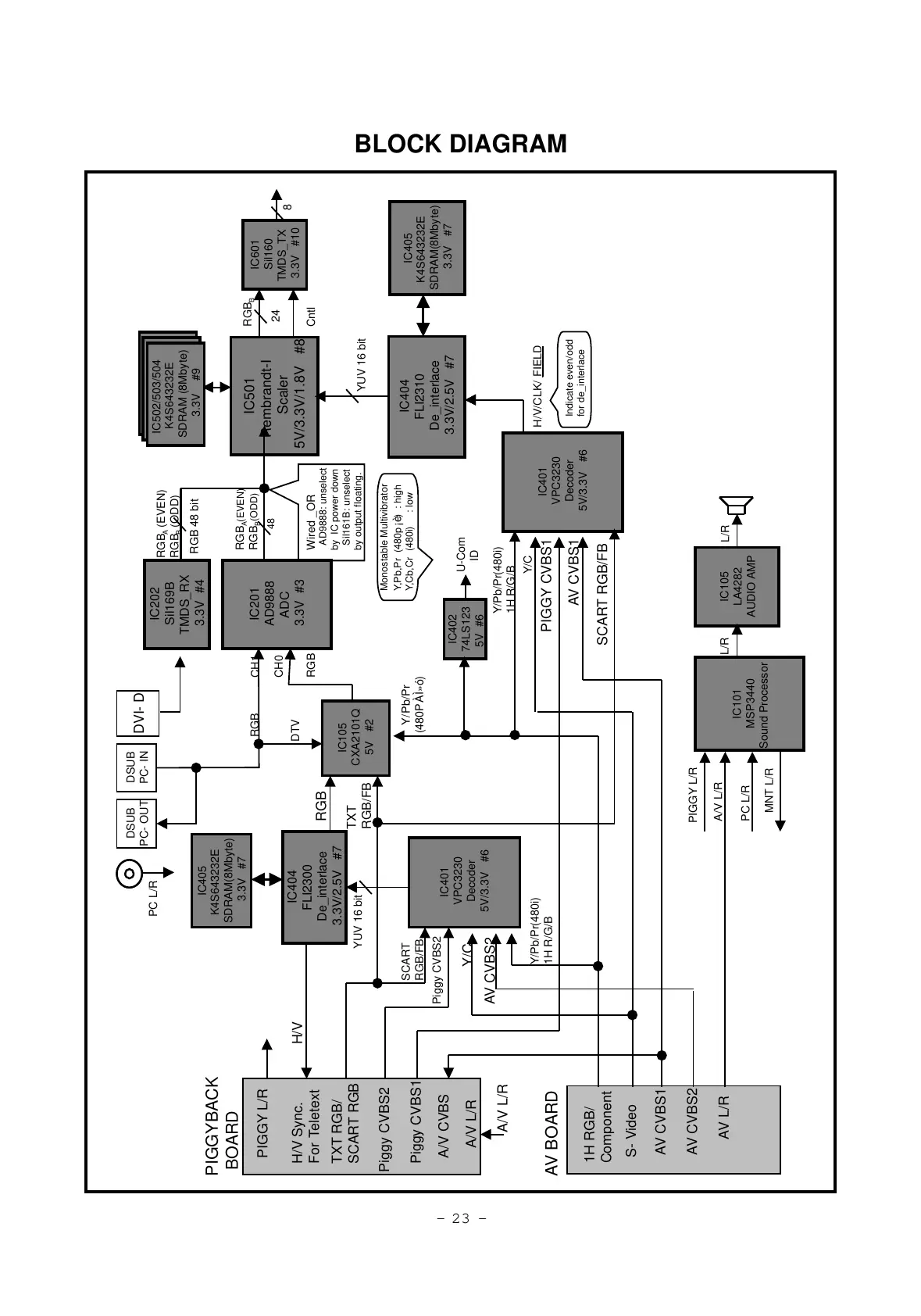

BLOCK DIAGRAM
IC501
Rembrandt-I
Scaler
5V/3.3V/1.8V #8
IC404
FLI2310
De_interlace
3.3V/2.5V #7
IC201
AD9888
ADC
3.3V #3
IC401
VPC3230
Decoder
5V/3.3V #6
IC202
Sil169B
TMDS_RX
3.3V #4
IC502/503/504
K4S643232E
SDRAM (8Mbyte)
3.3V #9
IC502/503/504
K4S643232E
SDRAM (8Mbyte)
3.3V #9
RGB 48 bit
YUV 16 bit
IC405
K4S643232E
SDRAM(8Mbyte)
3.3V #7
RGB
RGB
A
(EVEN)
RGB
B
(ODD)
RGB
A
(EVEN)
RGB
B
(ODD)
H/V/CLK/ FIELD
IC101
MSP3440
Sound Processor
IC105
LA4282
AUDIO AMP
L/R
L/R
IC105
CXA2101Q
5V #2
Y/Pb/Pr(480i) 1H R/G/B
IC402
74LS123
5V #6
Monostable Multivibrator Y,Pb,Pr (480p
¡è) : high
Y,Cb,Cr (480i) : low
YUV 16 bit
Indicate even/odd for de_interlace
48
Wired _OR AD9888: unselect by IC power down
.
Sil161B: unselect by output floating.
DTV
CH1 CH0
U-Com
ID
Y/Pb/Pr
(480PÀÌ»ó)
Y/C
DVI- D
DSUB
PC- IN
DSUB
PC- OUT
RGB
PIGGY L/R
A/V L/R
PC L/R
MNT L/R
RGB
B
IC601 Sil160
TMDS_TX
3.3V #10
24
8
Cntl
IC404
FLI2300
De_interlace
3.3V/2.5V #7
IC405
K4S643232E
SDRAM(8Mbyte)
3.3V #7
PC L/R
IC401
VPC3230
Decoder
5V/3.3V #6
1H RGB/ Component
AV BOARD
S- Video
Y/Pb/Pr(480i) 1H R/G/B
AV CVBS1 AV CVBS2
AV CVBS1
AV L/R
AV CVBS2
Y/C
PIGGYBACK
BOARD
Piggy CVBS1
Piggy CVBS2
TXT RGB/ SCART RGB
A/V CVBS
PIGGY CVBS1
Piggy CVBS2
A/V L/R
A/V L/R
PIGGY L/R
TXT RGB/FB
SCART RGB/FB
SCART RGB/FB
H/V Sync. For Teletext
H/V
RGB
